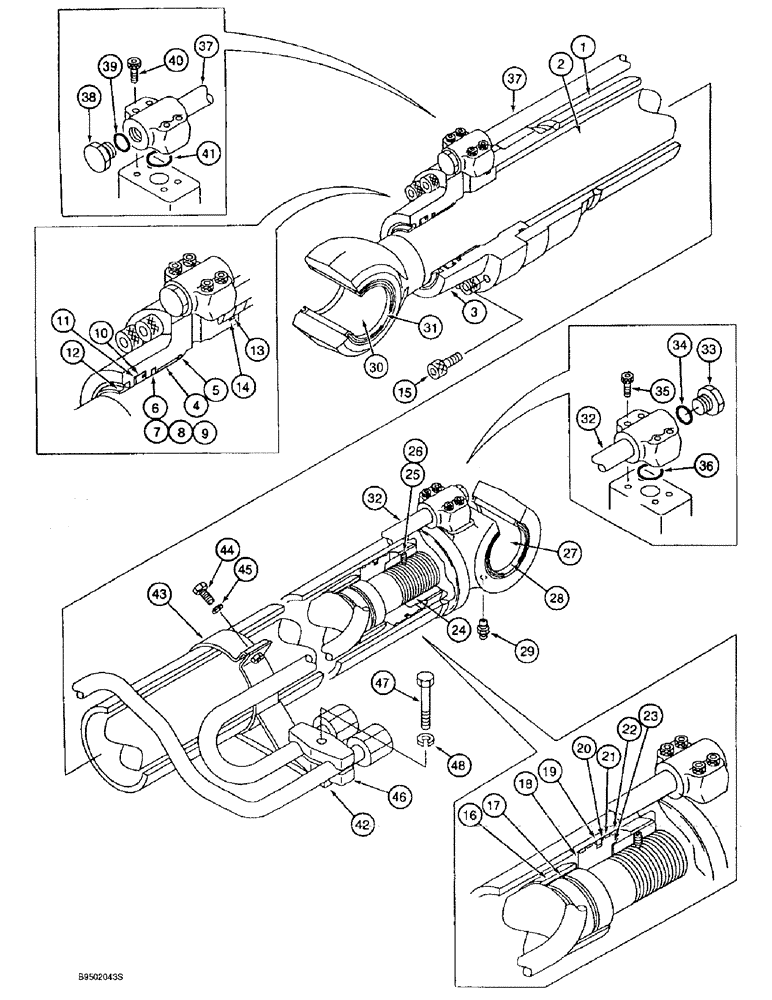

Запчасти Case 9020B (8-132) - BOOM CYLINDERS, MODELS WITHOUT LOAD HOLD OPTION (08) - HYDRAULICS

161306A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1184 mm (46-5/8 inch) stroke, boom, right-hand, Includes: Ref. 1 - 31

1шт.

161305A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1184 mm (46-5/8 inch) stroke, boom, left-hand, Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

155430A1

BUSHING

- gland

1шт.

5

155696A1

RING, SNAP

RING - snap, was 155738A1

1шт.

6

160501A1

SEALING RING

RING ASSEMBLY - buffer, Includes: Ref. 7 - 9

1шт.

7

160524A1

RING

- slide

1шт.

8

160510A1

BACK-UP RING

RING - backup

1шт.

9

160528A1

RING

- square

1шт.

10

155132A1

RING,80mm ID x 95mm OD x 9mm Thk

SEAL - U-cup

1шт.

11

155241A1

BACK-UP RING

RING - backup

1шт.

12

161884A1

BACK-UP RING

WIPER - piston rod

1шт.

13

154741A1

O-RING

SEAL - gland seal

1шт.

14

160812A1

BACK-UP RING

RING - backup

1шт.

15

161059A1

BOLT,Hex Skt, M16 x 70mm, Cl 12.9

BOLT - hex, special

12шт.

16

155160A1

RING

BEARING - cushion

1шт.

17

155155A1

SEAL

O-RING - cushion ring

1шт.

18

160943A1

PISTON

- cylinder

1шт.

19

160824A1

SEALING RING

SEAL - piston

1шт.

20

160813A1

BACK-UP RING

RING - backup

2шт.

21

161885A1

BACK-UP RING

RING - wear

2шт.

22

160827A1

RING

- wear

2шт.

23

155723A1

WASHER

- special

1шт.

24

160972A1

NUT

- special

1шт.

25

156223A1

SET SCREW

SCREW - set, was 160603A1

1шт.

26

155977A1

BALL

- steel

1шт.

27

155431A1

BUSHING

- mounting pin, cylinder closed end

1шт.

28

155156A1

RING

WIPER - mounting pin, cylinder closed end

2шт.

29

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

30

155432A1

BUSHING

- mounting pin, rod end

1шт.

31

155157A1

RING

WIPER - mounting pin, rod end

2шт.

161912A1

SEAL KIT

KIT - seal replacement, contains Refs. 6 - 14, 17, and 19 - 23, in the quantities specified

1шт.

161053A1

SET OF PARTS

KIT - gland replacement, contains Refs. 3 - 5, in the quantities specified

1шт.

161902A1

TUBE

KIT - tube replacement, contains Refs. 1 and 27, in the quantities specified

1шт.

161903A1

ROD

KIT - rod replacement, contains Refs. 2 and 30, in the quantities specified

1шт.

161306A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1184 mm (46-5/8 inch) stroke, boom, right-hand, Includes: Ref. 32 - 48

1шт.

161305A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1184 mm (46-5/8 inch) stroke, boom, left-hand, Includes: Ref. 32 - 48

1шт.

32

161889A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, right-hand, Includes: Refs. 33 and 34

1шт.

32

161890A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, left-hand, Includes: Ref. 33 and 34

1шт.

33

152924A1

PLUG

- tube assembly sealing

1шт.

34

154503A1

O-RING

- plug

1шт.

35

156235A1

BOLT

- hex socket, special

4шт.

36

154528A1

O-RING

- tube assembly

1шт.

37

161891A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, rod end, right-hand, Includes: Refs. 38 and 39

1шт.

37

163736A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, rod end, left-hand, Includes: Ref. 38 and 39

1шт.

38

152924A1

PLUG

- tube assembly sealing

1шт.

39

154503A1

O-RING

- plug

1шт.

40

156235A1

BOLT

- hex socket, special

4шт.

41

154528A1

O-RING

- tube assembly

1шт.

42

161924A1

BAND

CLAMP - band, with flange

1шт.

43

161925A1

MOUNTING CLIP

CLAMP - band

1шт.

44

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

45

156227A1

WASHER

- lock, special

2шт.

46

155701A1

COLLAR

CLAMP - tube

2шт.

47

153910A1

BOLT,High Strength, Hex, M14 x 80mm

BOLT - hex, special

1шт.

48

892-16014

LOCK WASHER,M14, Hvy

- lock, 14 mm

1шт.
