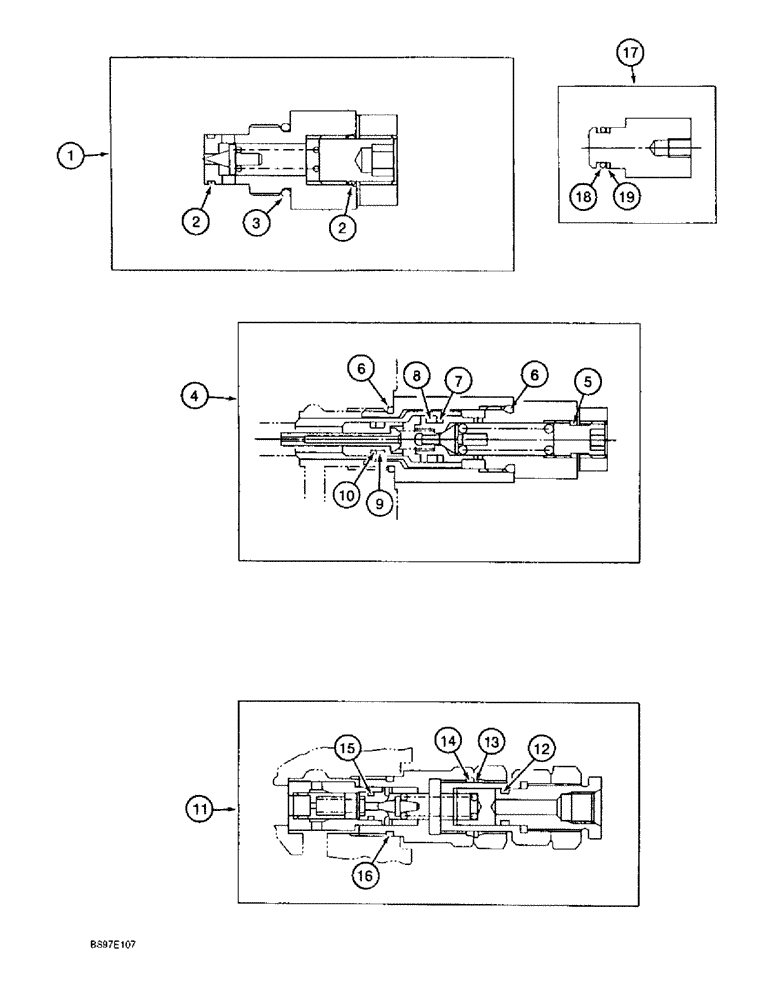

Запчасти Case 9020B (8-122) - CONTROL VALVE, WORKING CIRCUIT AND MAIN RELIEF VALVES (08) - HYDRAULICS

161309A1

VALVE

ASSEMBLY - control, models without load hold, parts list Figures 8-112 - 8-122, Includes: Ref. 1 - 19

1шт.

163715A1

VALVE

ASSEMBLY - control, models with load hold, parts list Figures 8-112 - 8-122, Includes: Ref. 1 - 19

1шт.

1

160883A1

VALVE

ASSEMBLY - relief, circuit, Includes: Ref. 2 and 3

2шт.

2

154463A1

O-RING

- relief valve, internal

2шт.

3

154475A1

O-RING

- relief, Serial Range: valve-housing

1шт.

4

161319A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, circuit, replaces 160885A1 or 162192A1, Includes: Ref. 5 - 10

6шт.

5

160792A1

O-RING

- relief valve, internal

1шт.

6

154487A1

O-RING

- relief valve to housing and internal

2шт.

7

160798A1

BACK-UP RING

RING - backup

1шт.

8

160797A1

O-RING

- relief valve, internal

1шт.

9

160799A1

O-RING

- relief valve, internal

1шт.

10

160791A1

BACK-UP RING

RING - backup

1шт.

11

163876A1

VALVE

ASSEMBLY - relief, main, replaces 160884A1, Includes: Ref. 12 - 16

1шт.

12

160796A1

O-RING

- relief valve, internal

1шт.

13

160795A1

BACK-UP RING

RING - backup

1шт.

14

160794A1

O-RING

- relief valve, internal

1шт.

15

157411A1

O-RING

- relief valve, internal

1шт.

16

154495A1

O-RING

- relief, Serial Range: valve-housing

1шт.

17

163526A1

PLUG

- hydraulic port, Includes: Ref. 18 and 19

2шт.

18

155201A1

O-RING

- plug

1шт.

19

153946A1

BACK-UP RING

RING - backup

1шт.
