Запчасти Case 9020B (8-120) - CONTROL VALVE, FOUR SPOOL HOUSING AND RELATED PARTS (08) - HYDRAULICS

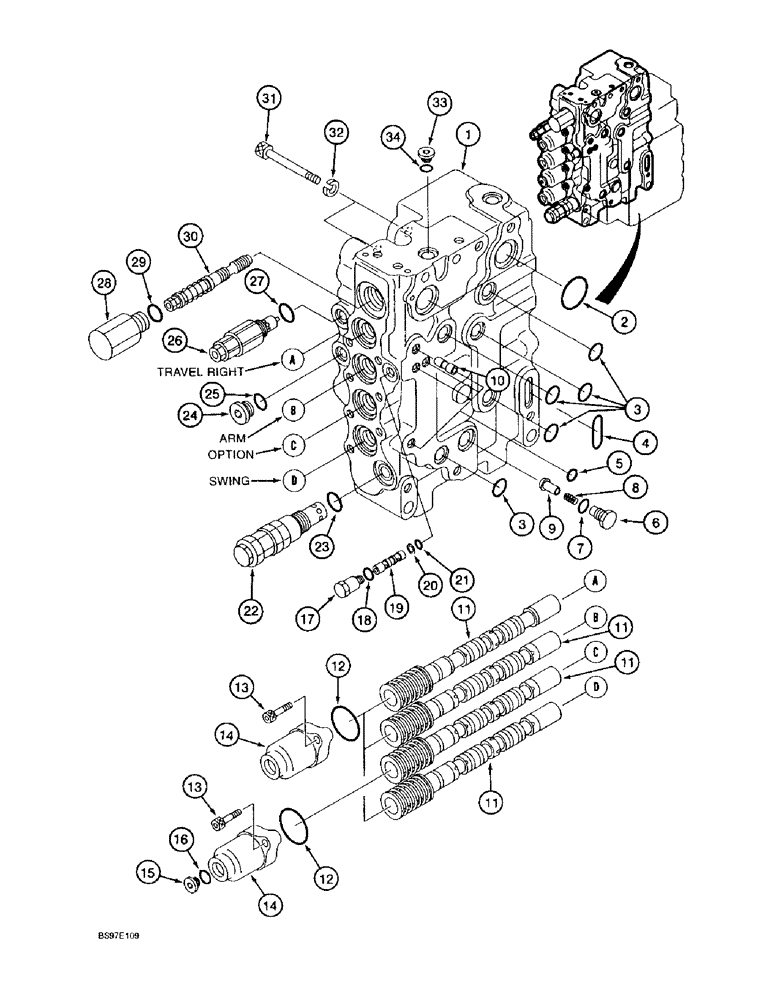

Схема запчастей Case 9020B - (8-120) - CONTROL VALVE, FOUR SPOOL HOUSING AND RELATED PARTS (08) - HYDRAULICS
3
30
33
25
6
21
26
11
27
13
1
17
2
15
19
12
23
29
11
11
24
7
14
4
13
31
3
34
14
11
22
28
18
9
16
20
32
10
8
12
5

Артикул

Название

Примечание

Количество

161309A1

VALVE

ASSEMBLY - control, models without load hold, parts list Figures 8-112 - 8-122, Includes: Ref. 1 - 34

1шт.

163715A1

VALVE

ASSEMBLY - control, models with load hold, parts list Figures 8-112 - 8-122, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - four spool side

1шт.

2

154523A1

O-RING

- port

1шт.

3

154487A1

O-RING

- port

4шт.

4

160804A1

O-RING

- port

1шт.

5

154463A1

O-RING

- port

4шт.

6

160922A1

CAP

PLUG - port

1шт.

7

154475A1

O-RING

- plug

1шт.

8

156034A1

SPRING

- valve

1шт.

9

160912A1

PLUNGER

VALVE - check, main relief isolation

1шт.

10

160840A1

RING

BUSHING - passage

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve, A2, C1, M1 and T1

4шт.

12

160806A1

O-RING

-, Serial Range: cover-housing

4шт.

13

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

8шт.

14

160975A1

COVER

- valve

4шт.

15

160306A1

CAP

PLUG - port

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

17

160901A1

CAP

FITTING - hydraulic port

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- fitting

1шт.

19

155915A1

VALVE

- check, straight travel, 161309A1 valve only

1шт.

19

163325A1

ORIFICE

- hydraulic, straight travel, 163715A1 valve only

1шт.

20

153943A1

BACK-UP RING

RING - backup

1шт.

21

154451A1

O-RING

- check valve

1шт.

22

163876A1

VALVE

ASSEMBLY - relief, main, parts list Figure 8-110

1шт.

23

154495A1

O-RING

- relief valve

1шт.

24

160903A1

CAP

PLUG - port, relief option

1шт.

25

154487A1

O-RING

- plug

1шт.

26

161319A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, arm circuit, parts list Figure 8-110

1шт.

27

154487A1

O-RING

- relief valve

1шт.

28

160926A1

CAP

- valve

1шт.

29

156790A1

O-RING

- cap

1шт.

30

NSS

NOT SOLD SEPARAT

SPOOL - valve, straight travel

1шт.

31

862-12095

HEX SOC SCREW,M12 x 95mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 95 mm, class 12.9

7шт.

32

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

7шт.

33

160306A1

CAP

PLUG - port

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

Выбрано товаров: 37
