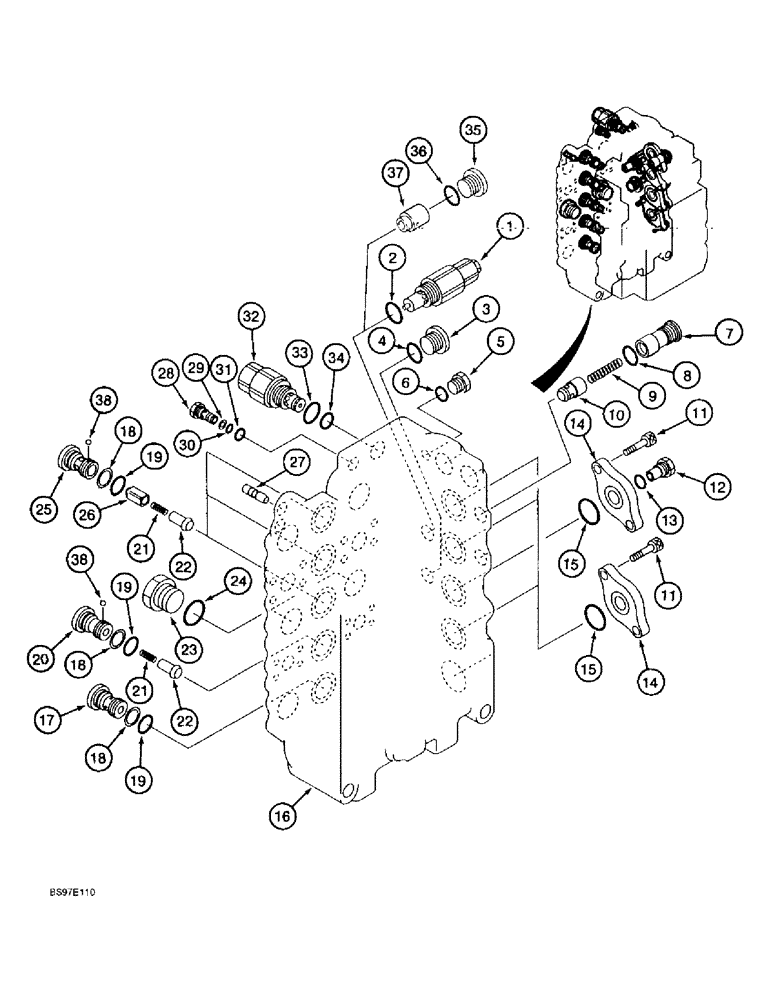

Запчасти Case 9020B (8-118) - CONTROL VALVE, FOUR SPOOL HOUSING AND RELATED PARTS (08) - HYDRAULICS

161309A1

VALVE

ASSEMBLY - control, models without load hold, parts list Figures 8-112 - 8-122, Includes: Ref. 1 - 38

1шт.

163715A1

VALVE

ASSEMBLY - control, models with load hold, parts list Figures 8-112 - 8-122, Includes: Ref. 1 - 38

1шт.

1

161319A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, 161309A1 valve, parts list Figure 8-122, Includes: Ref. 2

1шт.

2

154487A1

O-RING

- relief, Serial Range: valve-housing

1шт.

3

160903A1

CAP

PLUG - port

1шт.

4

154487A1

O-RING

- plug

1шт.

5

160902A1

CAP

PLUG - port

1шт.

6

154455A1

O-RING

- plug

1шт.

7

160921A1

CAP

PLUG - special

1шт.

8

154495A1

O-RING

- plug

1шт.

9

160947A1

SPRING

- compression

1шт.

10

160911A1

PLUNGER

VALVE - check, bucket 2

1шт.

11

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

8шт.

12

160931A1

CAP

PLUG - port, auxiliary spool stop

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

14

160850A1

RETAINER

PLATE - retainer

4шт.

15

160805A1

O-RING

- plate

4шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - four spool side

1шт.

17

160923A1

CAP

PLUG - special

1шт.

18

153976A1

BACK-UP RING

RING - backup

5шт.

19

154495A1

O-RING

- plug

5шт.

20

160974A1

CAP

PLUG - special, swing load check

1шт.

21

156027A1

SPRING

- valve

4шт.

22

155911A1

VALVE

- check, load, used in following "top down" order: right travel, arm, option and swing

4шт.

23

156262A1

CAP

PLUG - port

1шт.

24

155067A1

O-RING

- seal

1шт.

25

160918A1

CAP

PLUG - special, right travel, arm and option (in "top down" order)

3шт.

26

155920A1

VALVE, CHECK

VALVE - check

3шт.

27

160915A1

ORIFICE

- hydraulic

1шт.

28

160916A1

ORIFICE

- hydraulic

1шт.

29

153943A1

BACK-UP RING

RING - backup

1шт.

30

154451A1

O-RING

- orifice, inner

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

- orifice, outer

1шт.

32

160883A1

VALVE

ASSEMBLY - relief, neutral pump destroke, parts list Figure 8-122, Includes: Ref. 33 and 34

1шт.

33

154475A1

O-RING

- relief valve, outer

1шт.

34

154463A1

O-RING

- relief valve, inner

1шт.

35

160903A1

CAP

PLUG - port, 163715A1 valve, Includes: Ref. 36

1шт.

36

154487A1

O-RING

- plug

1шт.

37

163526A1

PLUG

- hydraulic port, 163715A1 valve, parts list Figure 8-122

1шт.

38

155295A1

BALL

INSERT - locking, nylon

4шт.
