(8-110) - CONTROL VALVE MOUNTING

Запчасти Case 9020B (8-110) - CONTROL VALVE MOUNTING (08) - HYDRAULICS

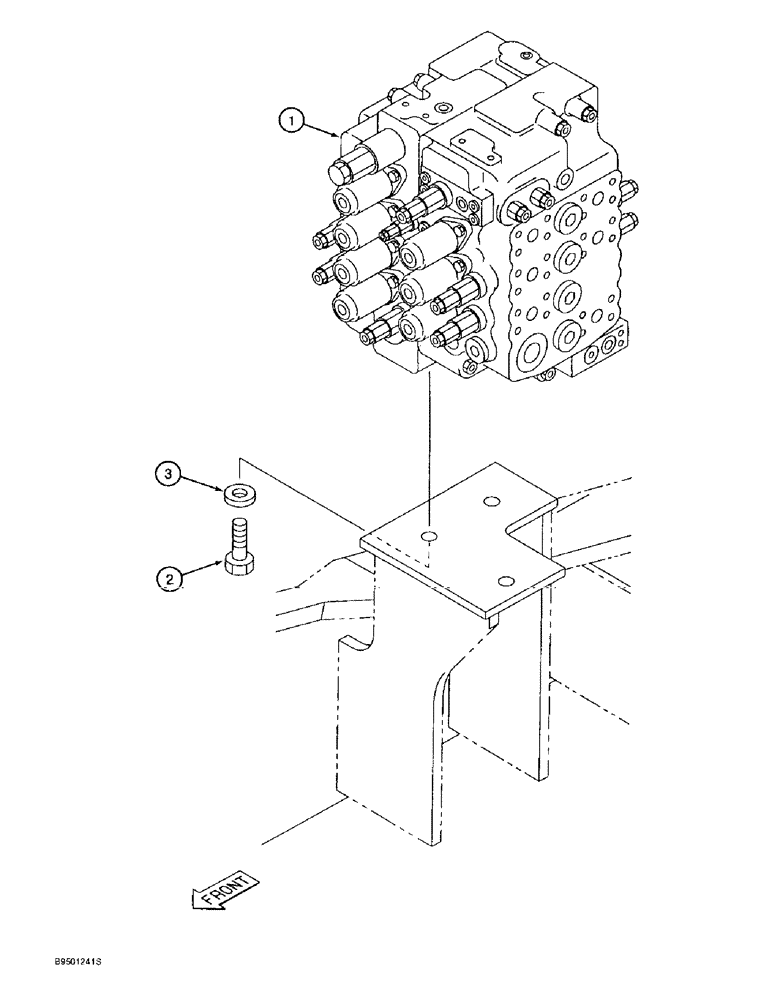

Схема запчастей Case 9020B - (8-110) - CONTROL VALVE MOUNTING (08) - HYDRAULICS
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

161309A1

VALVE

ASSEMBLY - control, models without load hold, parts list Figures 8-112 - 8-122

1шт.

1

163715A1

VALVE

ASSEMBLY - control, models with load hold, parts list Figures 8-112 - 8-122

1шт.

2

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

3шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

3шт.

Выбрано товаров: 4
