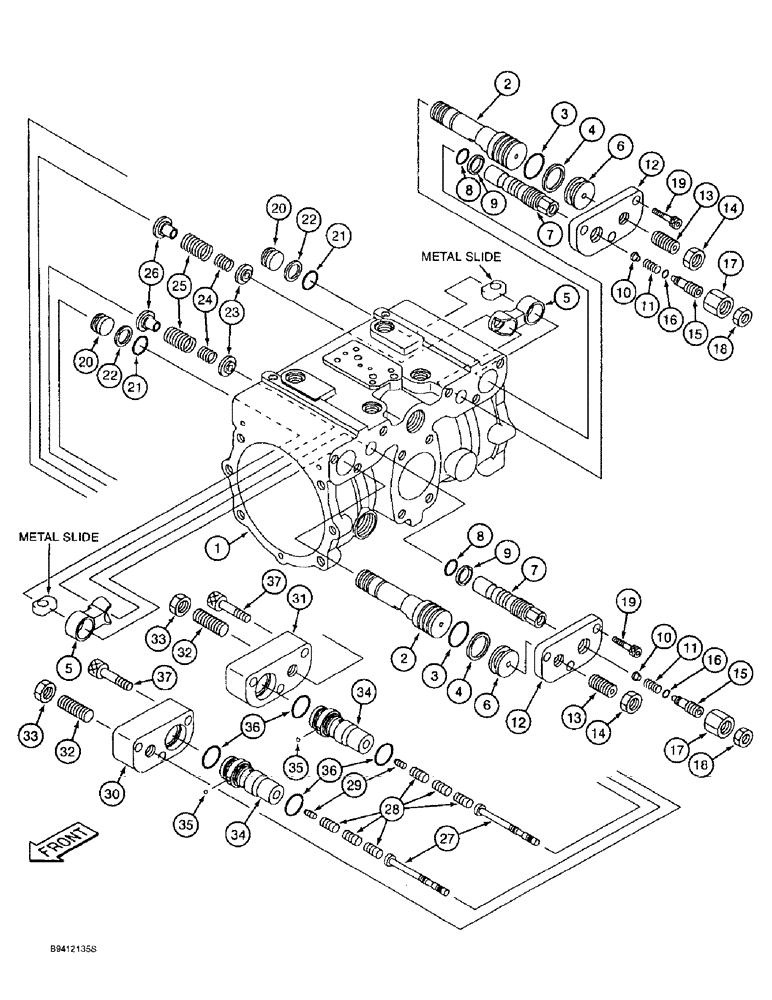

Запчасти Case 9020B (8-100) - HYDRAULIC PUMP ASSEMBLY, REGULATOR COMPONENTS (08) - HYDRAULICS

161302A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, parts list Figures 8-96 - 8-104, Includes: Ref. 1 - 37, Serial Range: -DAC02#2001

1шт.

315617A2R

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

315617A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

165409A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, parts list Figures 8-96 - 8-104, Includes: Ref. 1 - 37, Start Serial: DAC02#2001

1шт.

169304A1R

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

169304A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON - regulator

2шт.

3

154523A1

O-RING

O-RING - piston

2шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

4

153997A1

BACK-UP RING

RING - backup

2шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - regulator

2шт.

6

NSS

NOT SOLD SEPARAT

PLUG - special

2шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE - regulator

2шт.

Part of spool and sleeve, regulator KIT, P/N 165531A1

1шт.

8

154483A1

O-RING

O-RING - spool

2шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

9

153967A1

BACK-UP RING

RING - backup

2шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

10

156865A1

SPRING SEAT

SEAT - spring

2шт.

11

156864A1

SPRING

SPRING - compression

2шт.

12

NSS

NOT SOLD SEPARAT

COVER - valve

2шт.

13

161761A1

SET SCREW

SCREW - set, adjusting

2шт.

14

829-1316

NUT,M16, Cl 10

NUT - hex, 16 mm - 2.0, class 10, locking

2шт.

15

161767A1

PLUG

PLUG - adjusting

2шт.

16

154455A1

O-RING

O-RING - plug

2шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

17

161768A1

NUT

NUT - special

2шт.

18

829-1314

NUT,M14 x 2, Cl 10

NUT - hex, 14 mm - 2.0, class 10, locking

2шт.

19

863-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 30 mm, class 12.9

6шт.

20

161760A1

STOP

PLUG - special, regulator

2шт.

21

154495A1

O-RING

O-RING - plug

2шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

22

153976A1

BACK-UP RING

RING - backup

2шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

23

161766A1

SPRING SEAT

SEAT - spring

2шт.

24

NSS

NOT SOLD SEPARAT

SPRING - compression, inner, order P/N 161789A1

2шт.

25

NSS

NOT SOLD SEPARAT

SPRING - compression, outer, order P/N 161788A1

2шт.

26

156871A1

SPRING SEAT

SEAT - spring

2шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - regulator

2шт.

Part of spool and sleeve, regulator KIT, P/N 165531A1

1шт.

28

NSS

NOT SOLD SEPARAT

PISTON - regulator, order P/N 161765A1

6шт.

29

161770A1

PISTON

PISTON - regulator

2шт.

30

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

31

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

32

161762A1

SET SCREW

SCREW - set, adjusting

2шт.

33

829-1316

NUT,M16, Cl 10

NUT - hex, 16 mm - 2.0, class 10

2шт.

161782A1

VALVE POPPET

SLEEVE ASSEMBLY - regulator valve, Includes: Ref. 34 and 35

2шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - regulator valve

1шт.

35

NSS

NOT SOLD SEPARAT

BALL - steel

1шт.

36

154515A1

O-RING

O-RING - sleeve

4шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

37

863-12050

HEX SOC SCREW,M12 x 50mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 50 mm, class 12.9

6шт.

161774A1

SEAL KIT

KIT - seal components, Includes: Ref. 3, 4, 8, 9, 16, 21, 22 and 36, see also Figures 8-96 - Figure 8-102

1шт.

165531A1

SET OF PARTS

KIT - spool and sleeve, regulator, Includes: Refs. 7 and 27

1шт.
