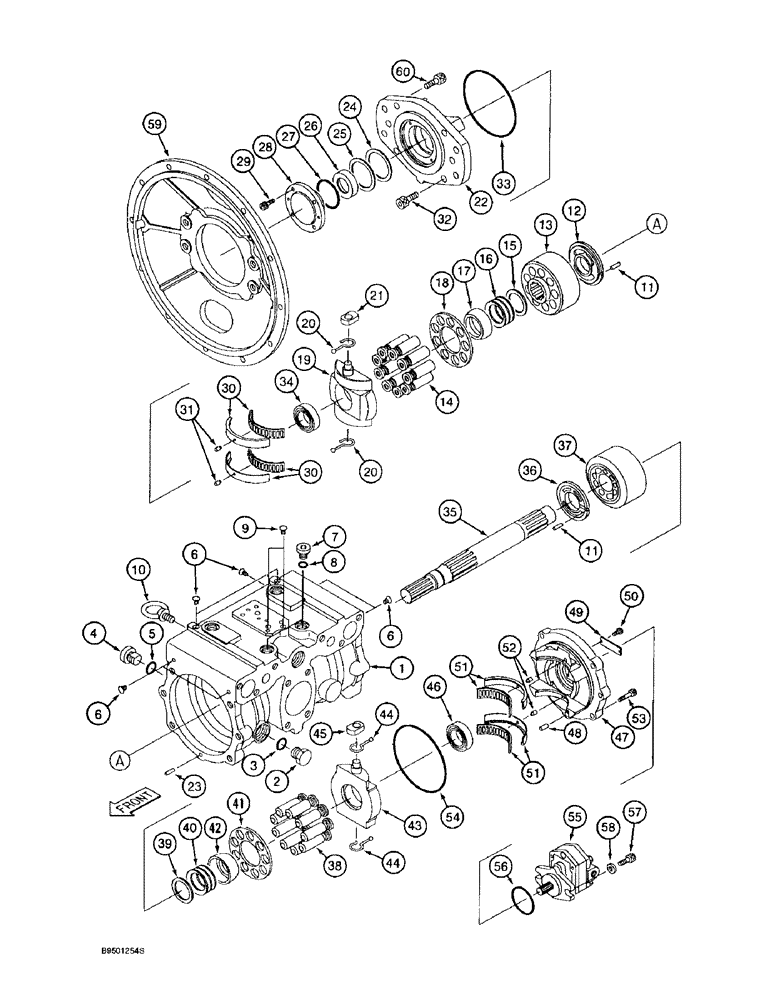

Запчасти Case 9020B (8-096) - HYDRAULIC PUMP ASSEMBLY, MAIN HOUSING AND RELATED PARTS (08) - HYDRAULICS

161302A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, parts list Figures 8-96 - 8-104, Includes: Ref. 1 - 60, Serial Range: -DAC02#2001

1шт.

315617A2R

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

315617A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

165409A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, parts list Figures 8-96 - 8-104, Includes: Ref. 1 - 60, Start Serial: DAC02#2001

1шт.

169304A1R

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

169304A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

2

161771A1

PLUG

PLUG - port

1шт.

3

154487A1

O-RING

O-RING - plug

1шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

4

161772A1

PLUG

PLUG - port

1шт.

5

154487A1

O-RING

O-RING - plug

1шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

6

163547A1

PLUG

PLUG - port

8шт.

7

161773A1

PLUG

PLUG - port

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

O-RING - plug

2шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

9

163548A1

PLUG

PLUG - port

2шт.

10

161792A1

EYEBOLT

BOLT - eye

1шт.

11

156812A1

COTTER PIN

PIN - dowel, valve plate timing

2шт.

163549A1

BLOCK ASSY.

BLOCK ASSEMBLY - cylinder, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

15

163551A1

SPRING SEAT

SEAT - spring

1шт.

16

156846A1

KIT

SPRING - compression

1шт.

LH00366

KIT

RETAINER ASSEMBLY - piston, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - spherical

1шт.

161784A1

GASKET KIT

PLATE ASSEMBLY - swash, front end, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - special

2шт.

21

163552A1

SLIDE GUIDE

SLIDE - metal

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - housing, front

1шт.

23

156825A1

COTTER PIN

PIN - dowel

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM - seal, order P/N 165530A1

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM - seal, order P/N 165529A1

1шт.

26

156855A1

OIL SEAL

SEAL - shaft

1шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

27

154667A1

O-RING

O-RING - seal

1шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - seal, order P/N 165533A1

1шт.

29

161795A1

BOLT

BOLT - hex, special

4шт.

30

161791A1

NEEDLE BEARING,Needle, 10.02mm ID x 11.2mm OD x 22.5mm W

BEARING - roller, crescent

2шт.

31

161754A1

COTTER PIN

PIN - dowel, bearing positioning

2шт.

32

863-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 30 mm, class 12.9

6шт.

33

154803A1

O-RING

O-RING - cover

1шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

34

NSS

NOT SOLD SEPARAT

BEARING - shaft, order P/N 165532A1

1шт.

35

NSS

NOT SOLD SEPARAT

SHAFT - pump drive, order P/N 165528A1

1шт.

163550A1

BLOCK ASSY.

BLOCK ASSEMBLY - cylinder, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

37

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

38

NSS

NOT SOLD SEPARAT

PISTON - pump

9шт.

39

163551A1

SPRING SEAT

SEAT - spring

1шт.

40

156846A1

KIT

SPRING - compression

1шт.

161779A1

GASKET KIT

RETAINER ASSEMBLY - piston, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

42

NSS

NOT SOLD SEPARAT

BUSHING - spherical

1шт.

161785A1

PLATE ASSY.

PLATE ASSEMBLY - swash, rear end, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

PLATE - swash

1шт.

44

NSS

NOT SOLD SEPARAT

GUIDE - special

2шт.

45

163552A1

SLIDE GUIDE

SLIDE - metal

1шт.

46

NSS

NOT SOLD SEPARAT

BEARING - shaft, order P/N 165532A1

1шт.

47

NSS

NOT SOLD SEPARAT

COVER - housing, rear

1шт.

48

156825A1

COTTER PIN

PIN - dowel

1шт.

49

NSS

NOT SOLD SEPARAT

NAMEPLATE - pump

1шт.

50

NSS

NOT SOLD SEPARAT

SCREW - drive, order P/N 163557A1

2шт.

51

161791A1

NEEDLE BEARING,Needle, 10.02mm ID x 11.2mm OD x 22.5mm W

BEARING - roller, crescent

2шт.

52

161754A1

COTTER PIN

PIN - dowel, bearing positioning

2шт.

53

863-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 30 mm, class 12.9

6шт.

54

154803A1

O-RING

O-RING - cover

1шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

55

161757A1

PUMP

PUMP ASSEMBLY - gear, Serviceable parts information not available at time of printing.

1шт.

166025A1

SEAL KIT

KIT seal, for use with Ref. 55 PUMP ASSY.

1шт.

166013A1

BOLT

BOLT for attaching rear cover

1шт.

56

154623A1

O-RING

O-RING - pump assembly

1шт.

Part of Seal Component Kit, P/N 161774A1

1шт.

57

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 25, 10.9, Full Thd

2шт.

58

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER, flat, 11 x 20 x 2 mm

2шт.

59

157074A1

FLANGE

FLANGE - mounting, Serial Range: -DAC02#2001

1шт.

59

165505A1

FLANGE

FLANGE - mounting, Start Serial: DAC02#2001

1шт.

60

861-16035

HEX SOC SCREW,M16 x 35mm, Cl 12.9

BOLT - hex socket, 16 - 2.0 x 35 mm, class 12.9

4шт.

161774A1

SEAL KIT

KIT - seal components, Includes: Ref. 3, 5, 8, 26, 27, 33, 54 and 56, see also Figures 8-96 - 8-102

1шт.
