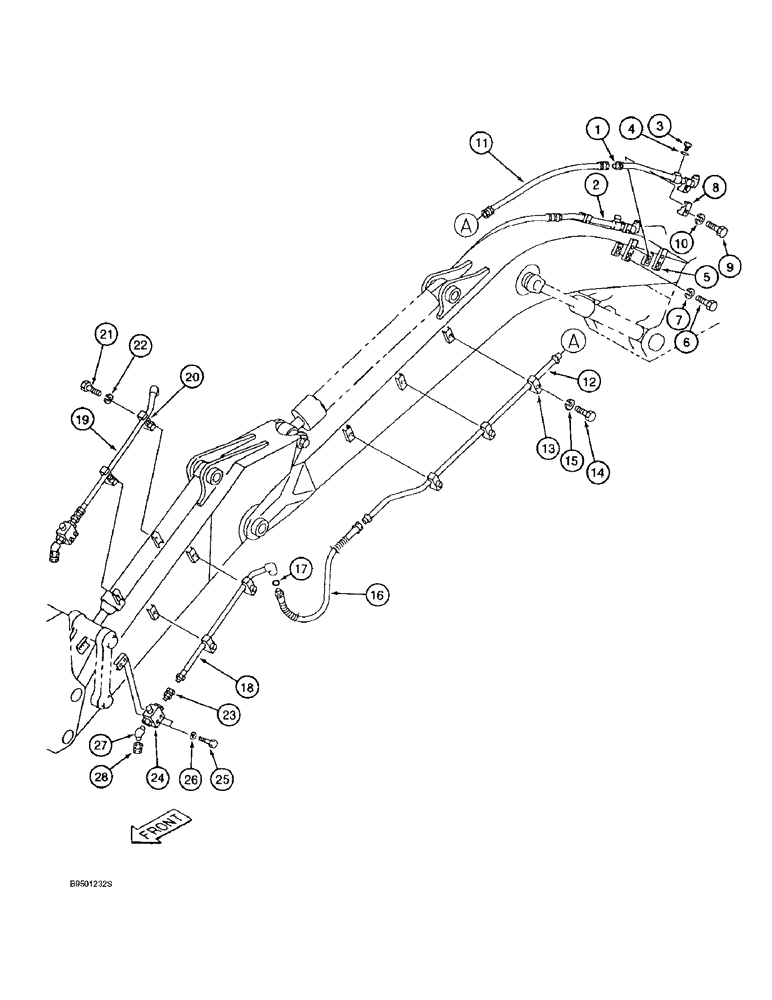

Запчасти Case 9020B (8-094) - AUXILIARY EQUIPMENT OPTIONS, SUPPLY/RETURN LINES, 2.7 AND 3.05 METER ARMS (08) - HYDRAULICS

1

163466A1

TUBE

ASSEMBLY - boom supply/return, left-hand, component parts not serviced separately

1шт.

2

163465A1

TUBE,27.2 mm OD

ASSEMBLY - boom supply/return, right-hand, component parts not serviced separately

1шт.

3

152924A1

PLUG

- port, Includes: Ref. 4

2шт.

4

154503A1

O-RING

- plug

1шт.

5

163302A1

BAR

BRACKET - flat, clamp mounting

4шт.

6

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

8шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

8шт.

8

151486A1

CLAMP BRACKET

CLAMP -

4шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

11

163298A1

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

- Top-of-boom supply/return 19.00 mm ID x 1000.00 mm

2шт.

12

163467A1

TUBE,27.2 mm OD

- boom-to-arm supply/return

2шт.

13

151486A1

CLAMP BRACKET

CLAMP -

6шт.

14

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

6шт.

15

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

6шт.

16

160678A1

HYDRAULIC HOSE,19.00 mm ID x 1400.00 mm

- 2.7 meter arm only, Includes Ref. 17 19.00 mm ID x 1400.00 mm

2шт.

16

162772A1

HYDRAULIC HOSE,19.00 mm ID x 1700.00 mm

- 3.05 meter arm only, Includes Ref. 17 19.00 mm ID x 1700.00 mm

2шт.

17

154503A1

O-RING

- 160678A1 or 162772A1 hose

2шт.

18

163469A1

HYD TUBE,27.2 mm OD

TUBE ASSEMBLY - cylinder supply/return, left-hand, contains no serviceable parts

1шт.

19

163468A1

HYD TUBE,27.2 mm OD

TUBE ASSEMBLY - cylinder supply/return, right-hand, contains no serviceable parts

1шт.

20

151486A1

CLAMP BRACKET

CLAMP -

4шт.

21

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

23

153638A1

ADAPTER

- straight, special

2шт.

24

153692A1

VALVE

- stop

2шт.

25

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

4шт.

26

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

27

152400A1

ADAPTER

ELBOW - 45 degree, special

2шт.

28

153683A1

PLUG

- elbow

2шт.
