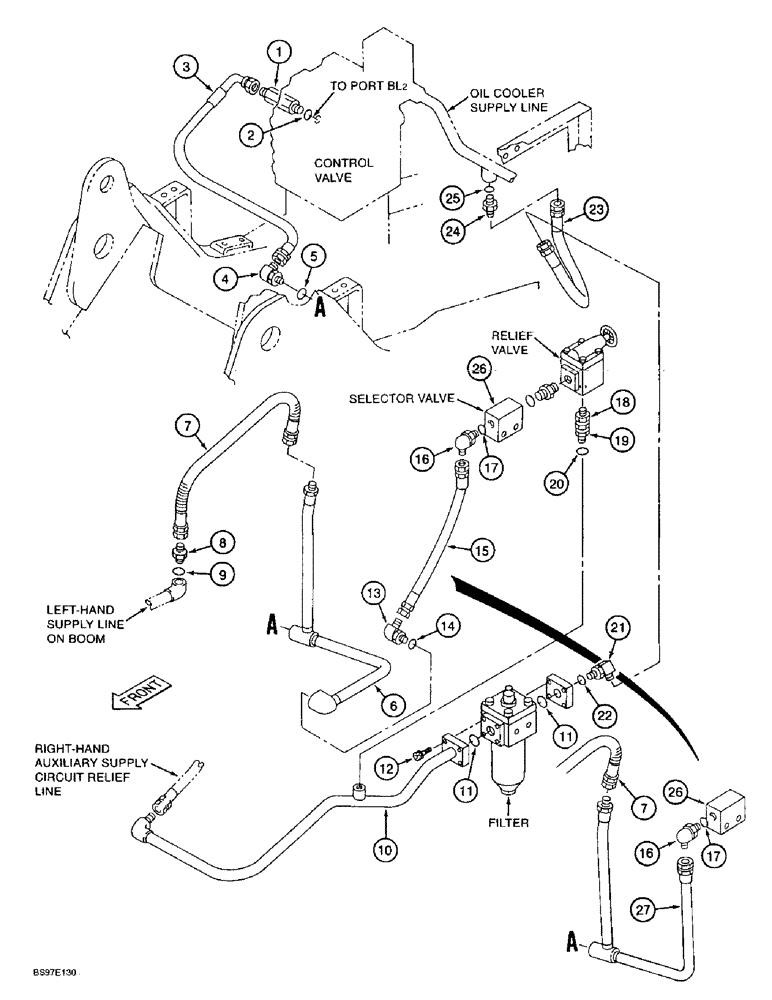

Запчасти Case 9020B (8-092) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, SUPPLY LINES, RELIEF CIRCUIT SIDE (08) - HYDRAULICS

1

152019A1

ELEC CONNECTOR

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154503A1

O-RING

- adapter

1шт.

3

162138A1

HYDRAULIC HOSE,1150.00 mm

- LH auxiliary supply circuit at control valve port "BL2" 1150.00 mm, Serial Range: -DAC0201004

1шт.

3

163505A1

HYDRAULIC HOSE,19.00 mm ID x 1100.00 mm

- 1150 mm (45-1/4 inch) long, LH auxiliary supply circuit at control valve port "BL2", Start Serial: DAC0201004

1шт.

4

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 5

1шт.

5

154503A1

O-RING

- elbow

1шт.

6

163527A1

TUBE

- anchored, Serial Range: -DAC0201004

1шт.

7

163498A1

HYDRAULIC HOSE,19.00 mm ID x 1440.00 mm

- LH auxiliary supply circuit (Anchored tube to LH supply line on boom) 19.00 mm ID x 1440.00 mm

1шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 9

1шт.

9

154503A1

O-RING

- adapter

1шт.

10

163533A1

TUBE

- auxiliary equipment relief

1шт.

11

154569A1

O-RING

- filter

2шт.

12

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 35 mm, class 12.9

4шт.

13

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 14, Serial Range: -DAC0201004

1шт.

14

154503A1

O-RING

- elbow

1шт.

15

163499A1

HYDRAULIC HOSE,19.00 mm ID x 490.00 mm

- Auxiliary equipment relief line (Anchored tube to selector valve) 19.00 mm ID x 490.00 mm, Serial Range: -DAC0201004

1шт.

16

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 17

1шт.

17

154503A1

O-RING

- elbow

1шт.

18

153638A1

ADAPTER

- straight, special, Includes: Ref. 20

1шт.

19

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 20

1шт.

20

154503A1

O-RING

- adapter

1шт.

21

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, see also Refs. 14 and 15, Figure 8-82), Includes: Ref. 22

1шт.

22

154503A1

O-RING

- elbow

1шт.

23

163535A1

HYDRAULIC HOSE,19.00 mm ID x 800.00 mm

- Auxiliary equipment relief line (Filter to oil cooler supply line) 19.00 mm ID x 800.00 mm

1шт.

24

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 25

1шт.

25

154503A1

O-RING

- adapter

1шт.

26

159485A1

VALVE

- selector

1шт.

27

163503A1

TUBE

- boom supply, Start Serial: DAC0201004

1шт.
