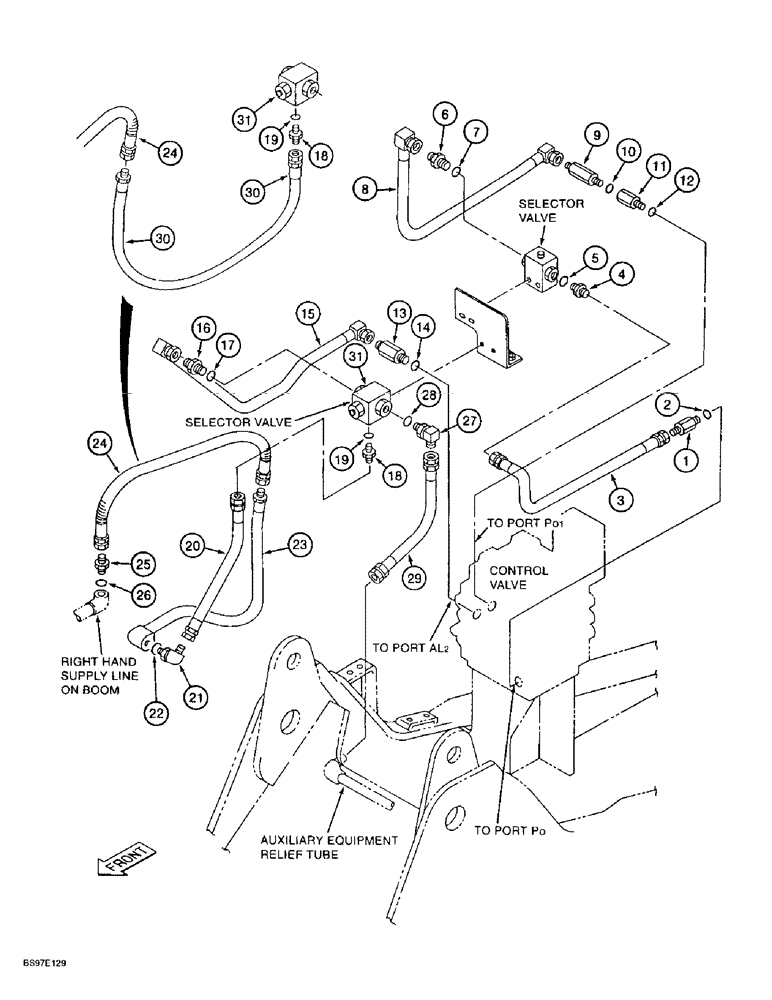

Запчасти Case 9020B (8-090) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, SUPPLY LINES, SELECTION CIRCUIT SIDE (08) - HYDRAULICS

1

159361A1

ADAPTER

- straight, special, Includes: Ref. 2

1шт.

2

154487A1

O-RING

- adapter

1шт.

3

163500A1

HYDRAULIC HOSE,12.70 mm ID x 850.00 mm

- Dual pump supply circuit (Control valve port "Po" to selector valve) 12.70 mm ID x 850.00 mm

1шт.

4

161079A1

REDUCER

- special, Includes: Ref. 5

1шт.

5

154503A1

O-RING

- reducer

1шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154503A1

O-RING

- adapter

1шт.

8

163538A1

TUBE,27.2 mm OD

- dual pump supply circuit (selector valve to control valve port "Po1"

1шт.

9

163287A1

STUD

CONNECTOR - hydraulic, straight, Includes: Ref. 10

1шт.

10

154487A1

O-RING

- connector

1шт.

11

163285A1

VALVE

- check, Includes: Ref. 12

1шт.

12

154495A1

O-RING

- check valve

1шт.

13

156664A1

STUD

ADAPTER - straight, special, Includes: Ref. 14

1шт.

14

154503A1

O-RING

- adapter

1шт.

15

163539A1

TUBE

- right-hand auxiliary supply circuit (control valve port "AL2" to selector valve)

1шт.

16

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154503A1

O-RING

- adapter

1шт.

18

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 19

1шт.

19

154503A1

O-RING

- adapter

1шт.

20

163499A1

HYDRAULIC HOSE,19.00 mm ID x 490.00 mm

- RH auxiliary supply circuit (Selector valve to anchored tube) 19.00 mm ID x 490.00 mm, Serial Range: -DAC0201004

1шт.

21

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 22, Serial Range: -DAC0201004

1шт.

22

154503A1

O-RING

- elbow

1шт.

23

163537A1

TUBE

- anchored, Serial Range: -DAC0201004

1шт.

24

163498A1

HYDRAULIC HOSE,19.00 mm ID x 1440.00 mm

- RH auxiliary supply circuit (Anchored tube to RH supply line on boom) 19.00 mm ID x 1440.00 mm

1шт.

25

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 26

1шт.

26

154503A1

O-RING

- adapter

1шт.

27

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 28

1шт.

28

154503A1

O-RING

- elbow

1шт.

29

159747A1

HYDRAULIC HOSE,19.00 mm ID x 400.00 mm

- RH auxiliary supply circuit relief line (Selector valve to auxiliary equipment relief tube) 19.00 mm ID x 400.00 mm

1шт.

30

163502A1

TUBE

- right-hand auxiliary supply circuit, Start Serial: DAC0201004

1шт.

31

159748A1

VALVE

- selector

1шт.
