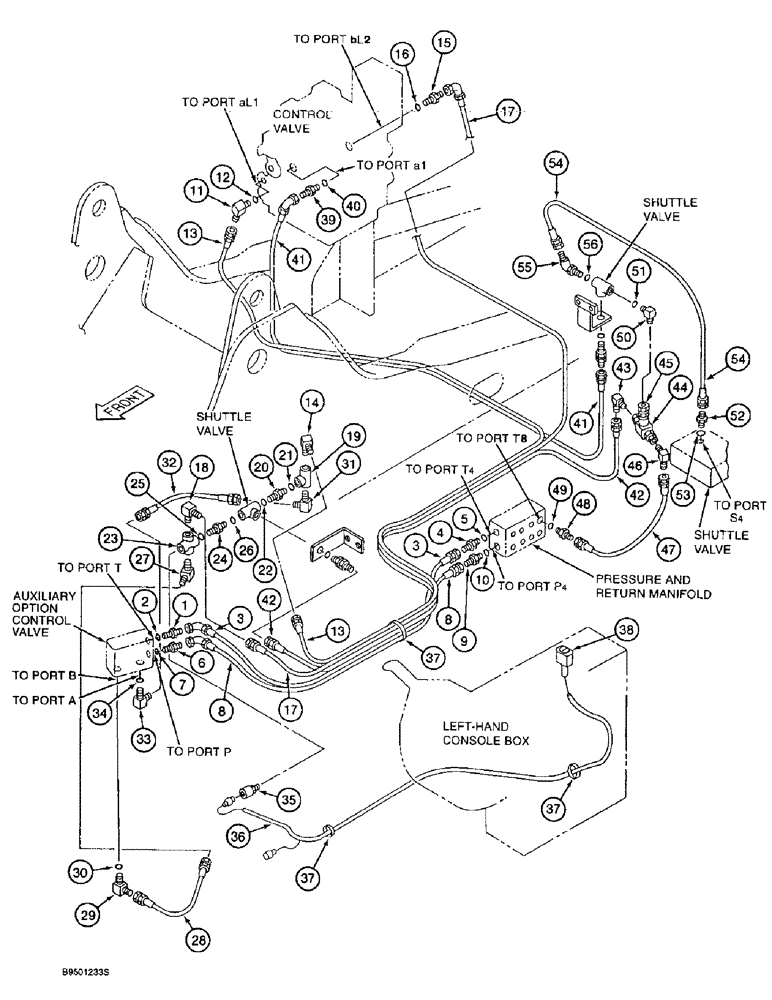

Запчасти Case 9020B (8-086) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, auxiliary equipment return line (pedal control valve port "T" to pressure and return manifold port "T4")

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

6

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, auxiliary equipment return line (pedal control valve port "P" to pressure and return manifold port "P4")

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

13

159005A1

HOSE

- 3250 mm (127-15/16 inch) long, control signal line (from control valve port "aL1" to tee at forward shuttle valve)

1шт.

14

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

17

159008A1

HOSE ASSY.

HOSE - 3050 mm (120 inch) long, control signal line (from control valve port "bL2" to cross fitting at forward shuttle valve)

1шт.

18

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

19

152135A1

TEE

-

1шт.

20

152899A1

HYD CONNECTOR

CONNECTOR - straight, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- shuttle valve

1шт.

23

152303A1

4 WAY CONNECTION

CROSS - special

1шт.

24

152899A1

HYD CONNECTOR

CONNECTOR - straight, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- shuttle valve

1шт.

27

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

28

152793A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long, control signal line (from pedal control valve port "B" to cross fitting at forward shuttle valve)

1шт.

29

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

31

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

32

156735A1

HOSE,6.3 mm ID x 350.00 mm

- 350 mm (13-3/4 inch) long, control signal line (from pedal control valve port "A" to tee at forward shuttle valve)

1шт.

33

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

35

159599A1

PRESSURE SWITCH

SWITCH - pressure

1шт.

36

162641A1

HARNESS

- wiring

1шт.

37

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

3шт.

38

162642A1

SWITCH

- special

1шт.

39

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

-

1шт.

41

159009A1

HOSE ASSY.

HOSE - 2600 mm (102-5/16 inch) long, dual flow signal line (from control valve port "a1" to tee at rear shuttle valve)

1шт.

42

152581A1

HOSE,6.3mm ID x 1900mm L

- Control signal drain line (From forward shuttle valve to pilot line selector valve) 63.00 mm ID x 1900.00 mm

1шт.

43

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

44

162643A1

VALVE

- selector, pilot line

1шт.

45

153601A1

ADAPTER

- straight

1шт.

46

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

47

153342A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long, pilot drain line (from pilot line selector valve to pressure and return manifold port "T8")

1шт.

48

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 49

1шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

50

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 51

1шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

52

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

54

157854A1

HOSE,4mm ID x 750mm L

- 750 mm (29-1/2 inch) long, arm dual flow signal line (main shuttle valve port "S4" to rear shuttle valve)

1шт.

55

150933A1

ELBOW

- 45 degree

1шт.

56

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.
