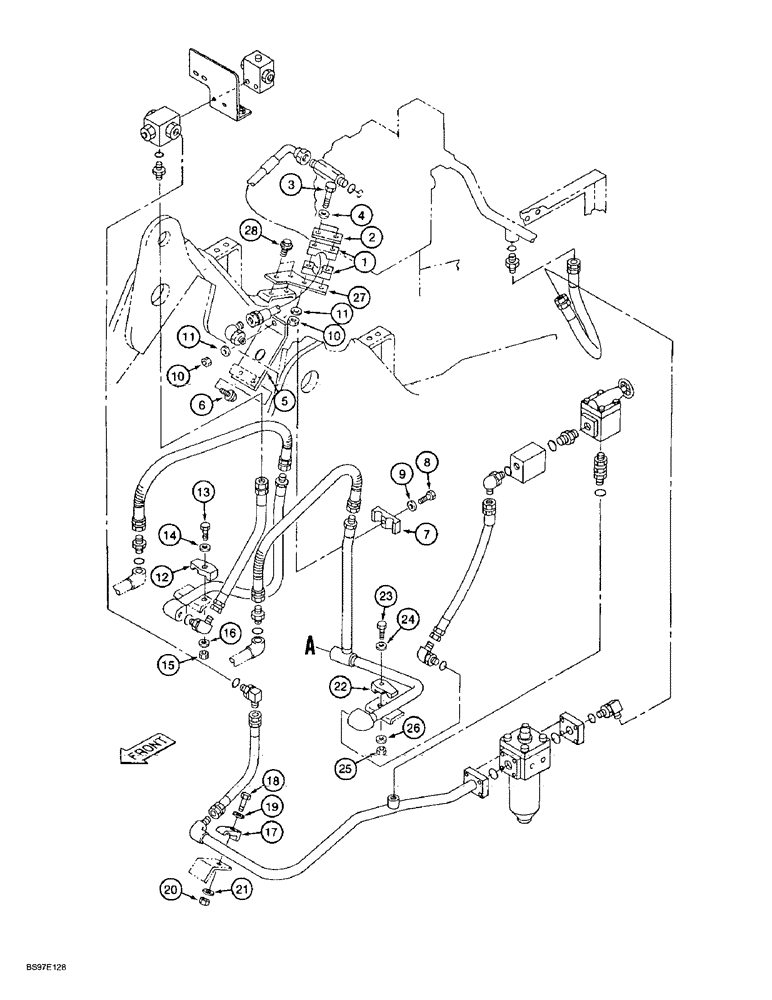

Запчасти Case 9020B (8-084) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, HOSE SUPPORTS (08) - HYDRAULICS

1

162248A1

COLLAR

CLAMP - hose

2шт.

2

162249A1

LARGE PLATE

PLATE - flat, hose clamp

1шт.

3

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

- hex, 12 - 1.75 x 80 mm, class 10.9

2шт.

4

150811A1

WASHER

- flat, special, 12 mm

2шт.

5

163536A1

BRACKET

- mounting

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

7

152085A1

COLLAR

CLAMP - tube

1шт.

8

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

9

150811A1

WASHER

- flat, special, 12 mm

1шт.

10

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

3шт.

11

150811A1

WASHER

- flat, special, 12 mm

3шт.

12

151486A1

CLAMP BRACKET

CLAMP - tube, Serial Range: -DAC0201004

1шт.

13

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

14

150811A1

WASHER

- flat, special, 12 mm

1шт.

15

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

16

150811A1

WASHER

- flat, special, 12 mm

1шт.

17

151486A1

CLAMP BRACKET

CLAMP -

1шт.

18

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

19

150811A1

WASHER

- flat, special, 12 mm

1шт.

20

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

21

150811A1

WASHER

- flat, special, 12 mm

1шт.

22

151486A1

CLAMP BRACKET

CLAMP - tube, Serial Range: -DAC0201004

1шт.

23

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

24

150811A1

WASHER

- flat, special, 12 mm

1шт.

25

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

26

150811A1

WASHER

- flat, special, 12 mm

1шт.

27

163504A1

BRACKET

- flat plate, angled

1шт.

28

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.
