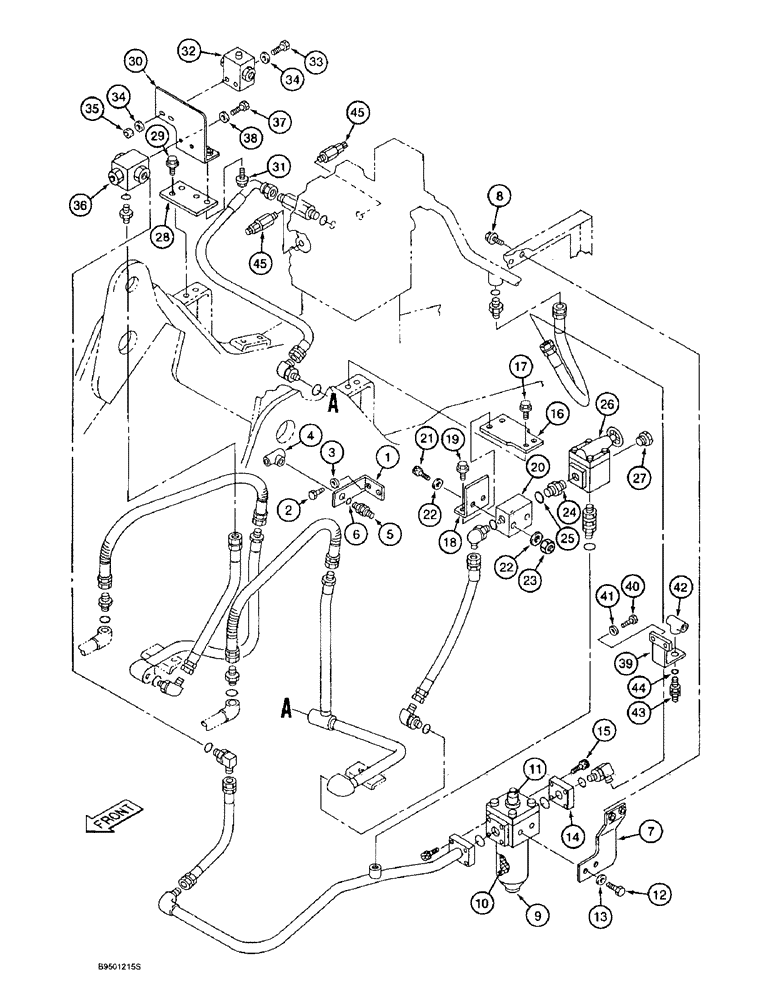

Запчасти Case 9020B (8-082) - DOUBLE ACTION AUXILIARY EQUIPMENT OPTION, COMPONENT MOUNTING (08) - HYDRAULICS

1

159708A1

BRACKET

- 90 degree angle

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

1шт.

5

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

7

163534A1

BRACKET

- mounting, filter

1шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

9

163278A1

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 10 and 11

1шт.

10

163279A1

HYDRAULIC OIL FILTER

ELEMENT - oil filter

1шт.

11

159706A1

INDICATOR

GAUGE - special indicator

1шт.

12

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

13

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

14

163275A1

FLANGE

- tube mounting

1шт.

15

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 35 mm, class 12.9

4шт.

16

163541A1

BRACKET

- mounting

1шт.

17

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

18

163540A1

BRACKET

- mounting, manifold

1шт.

19

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

20

159485A1

VALVE

- selector, hydraulic

1шт.

21

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

- hex, 12 - 1.75 x 75 mm, class 10.9

2шт.

22

150811A1

WASHER

- flat, special, 12 mm

4шт.

23

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

24

157685A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 25

1шт.

25

154503A1

O-RING

- adapter

1шт.

26

159490A1

VALVE

- relief

1шт.

27

151002A1

PLUG

- pipe

1шт.

28

163532A1

BRACKET

- mounting

1шт.

29

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

30

163530A1

BRACKET

- mounting, manifold

1шт.

31

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

BOLT - special

2шт.

32

159485A1

VALVE

- selector, hydraulic

1шт.

33

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

34

150811A1

WASHER

- flat, special, 12 mm

2шт.

35

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

36

159748A1

VALVE

- selector

1шт.

37

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

38

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

39

163267A1

BRACKET

- 90 degree angle

1шт.

40

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

2шт.

41

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

42

KHJ17090

VALVE PRESSURE RELIE

VALVE - shuttle; Replaces 158186A1

1шт.

43

158183A1

ELEC CONNECTOR,Male

ADAPTER - straight, special, Includes: Ref. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

45

158257A1

VALVE, PRESSURE RELI

VALVE - relief, Serial Range: -DAC0201004

2шт.

45

162192A1

VALVE

- port relief, Start Serial: DAC0201004

2шт.
