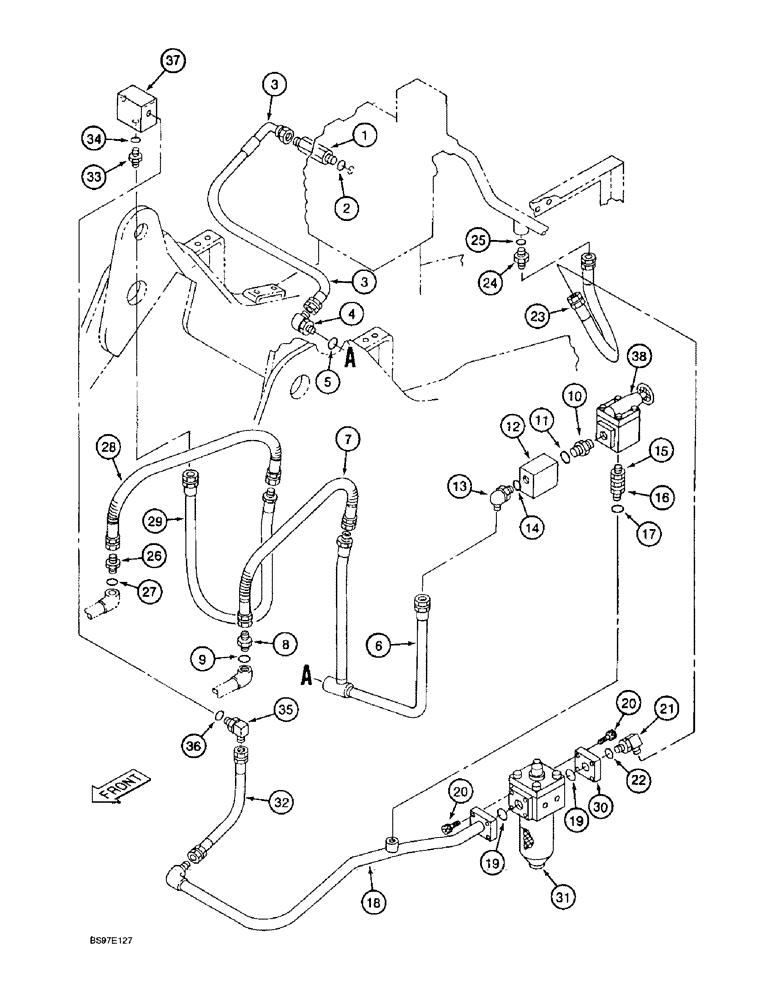

Запчасти Case 9020B (8-080) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, SUPPLY AND RELIEF LINES, P.I.N. DAC0201004 AND AFTER (08) - HYDRAULICS

1

152019A1

ELEC CONNECTOR

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154503A1

O-RING

- adapter

1шт.

3

163505A1

HYDRAULIC HOSE,19.00 mm ID x 1100.00 mm

- 1150 mm (45-1/4 inch) long, Auxiliary equipment supply line (Control valve port "AL2" to supply and relief tube)

1шт.

4

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 5

1шт.

5

154503A1

O-RING

- elbow

1шт.

6

163503A1

TUBE

- auxiliary equipment supply line

1шт.

7

163498A1

HYDRAULIC HOSE,19.00 mm ID x 1440.00 mm

- Auxiliary equipment supply line (Supply and relief tube to supply line on boom) 19.00 mm ID x 1440.00 mm

1шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 9

1шт.

9

154503A1

O-RING

- adapter

1шт.

10

157685A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 11

1шт.

11

154503A1

O-RING

- adapter

1шт.

12

159726A1

MANIFOLD

- hydraulic

1шт.

13

159372A1

ELBOW

- 90 degree, special, Includes: Ref. 14

1шт.

14

154503A1

O-RING

- elbow

1шт.

15

153638A1

ADAPTER

- straight, special

1шт.

16

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154503A1

O-RING

- adapter

1шт.

18

163533A1

TUBE

- auxiliary equipment relief

1шт.

19

154569A1

O-RING

- filter

2шт.

20

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 35 mm, class 12.9

8шт.

21

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 22

1шт.

22

154503A1

O-RING

- elbow

1шт.

23

163535A1

HYDRAULIC HOSE,19.00 mm ID x 800.00 mm

- Auxiliary equipment relief line (Filter to oil cooler supply line) 19.00 mm ID x 800.00 mm

1шт.

24

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 25

1шт.

25

154503A1

O-RING

- adapter

1шт.

26

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 27

1шт.

27

154503A1

O-RING

- adapter

1шт.

28

163498A1

HYDRAULIC HOSE,19.00 mm ID x 1440.00 mm

- Auxiliary equipment relief line (Relief line on boom to relief tube) 19.00 mm ID x 1440.00 mm

1шт.

29

163502A1

TUBE

- relief, auxiliary equipment relief line

1шт.

30

163275A1

FLANGE

- tube mounting

1шт.

31

163278A1

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-72

1шт.

32

159747A1

HYDRAULIC HOSE,19.00 mm ID x 400.00 mm

- Auxiliary equipment relief line (Manifold to auxiliary equipment relief tube) 19.00 mm ID x 400.00 mm

1шт.

33

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 34

1шт.

34

154503A1

O-RING

- adapter

1шт.

35

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 36

1шт.

36

154503A1

O-RING

- elbow

1шт.

37

159726A1

MANIFOLD

- hydraulic

1шт.

38

159490A1

VALVE

- relief

1шт.
