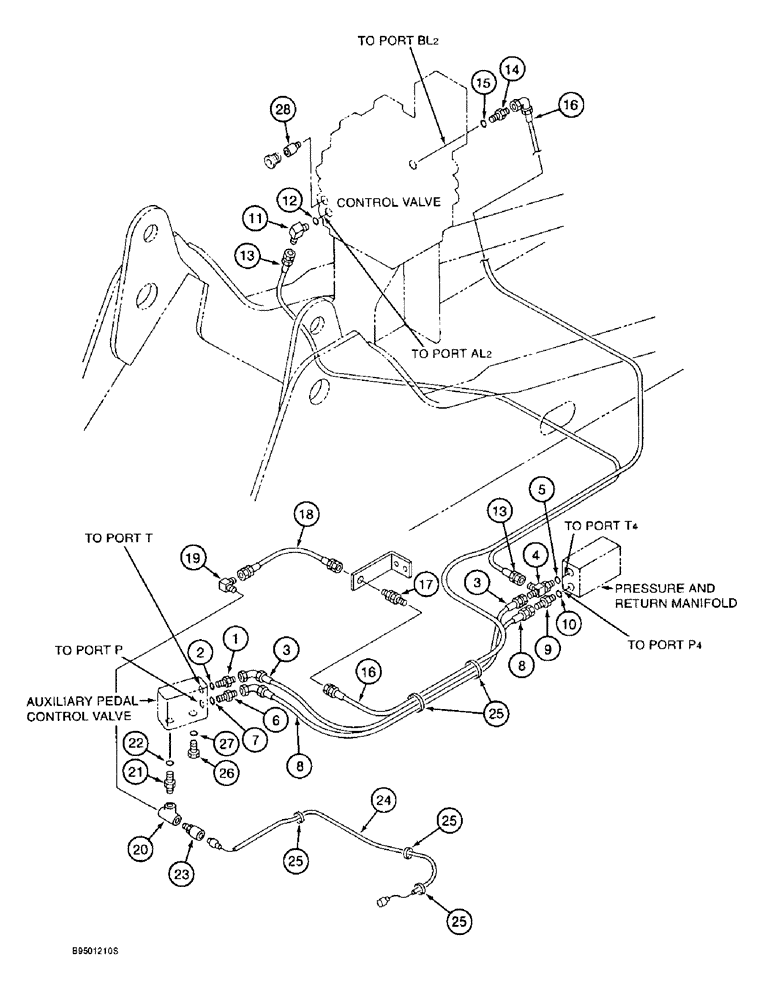

Запчасти Case 9020B (8-076) - SINGLE ACTION AUXILIARY EQUIPMENT OPTION, PILOT CONTROL LINES (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, auxiliary equipment return line (pedal control valve port "T" to pressure and return manifold port "T4")

1шт.

4

159497A1

TEE

- special, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

6

161841A1

HYD CONNECTOR

ADAPTER - straight, special, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159045A1

HOSE ASSY.

HOSE - 1150 mm (45-1/4 inch) long, auxiliary equipment presssure line (pedal control valve port "P" to pressure and return manifold port "P4")

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

13

157850A1

HOSE,6.4 mm ID x 2350.00 mm

- 2350 mm (92-1/2 inch) long, control valve return line (control valve port "aL2" to tee fitting in pressure and return manifold port "T4")

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

159433A1

HOSE ASSY.

HOSE - 2700 mm (106-5/16 inch) long, auxiliary option signal line (main control valve port "bL2" to thru fitting at support bracket)

1шт.

17

159481A1

ADAPTER

FITTING - special

1шт.

18

152793A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long, auxiliary option signal line (thru fitting at support bracket to auxiliary pedal control valve port "B")

1шт.

19

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

20

152135A1

TEE

-

1шт.

21

152899A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

23

159599A1

PRESSURE SWITCH

SWITCH - pressure

1шт.

24

159636A1

HARNESS

- wiring

1шт.

25

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

5шт.

26

159002A1

PLUG

- port (auxiliary pedal control valve port "A"), Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

28

163526A1

PLUG

- hydraulic port

1шт.
