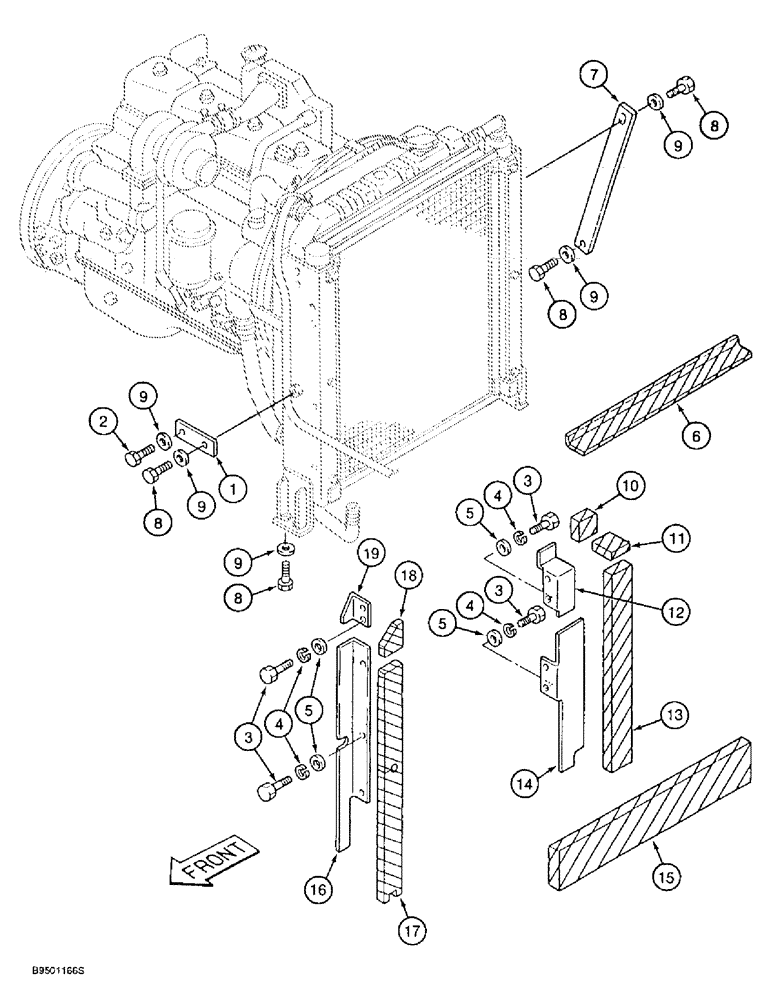

Запчасти Case 9020B (2-006) - RADIATOR MOUNTING, SUPPORTS AND SEALS, PRIOR TO P.I.N. DAC02#2001 (02) - ENGINE

161073A1

RADIATOR

ASSEMBLY - water and hydraulic oil cooling, parts list Figure 2-22

1шт.

1

161522A1

SUPPORT

- radiator, front

1шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

1шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

9шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

9шт.

6

161143A1

SEAL

- cushion

1шт.

7

162213A1

SUPPORT

- radiator, rear

1шт.

8

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

7шт.

9

150811A1

WASHER

- flat, special, 12 mm

8шт.

10

161529A1

SEAL

- cushion

1шт.

11

161530A1

SEAL

- cushion

1шт.

12

161525A1

RETAINER

- cushion seal

1шт.

13

161531A1

SEAL

- cushion

1шт.

14

161526A1

RETAINER

- cushion seal

1шт.

15

161147A1

SEAL

- cushion

1шт.

16

161524A1

RETAINER

- cushion seal

1шт.

17

161528A1

SEAL

- cushion

1шт.

18

161527A1

SEAL

- cushion

1шт.

19

161523A1

RETAINER

- cushion seal

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

9шт.
