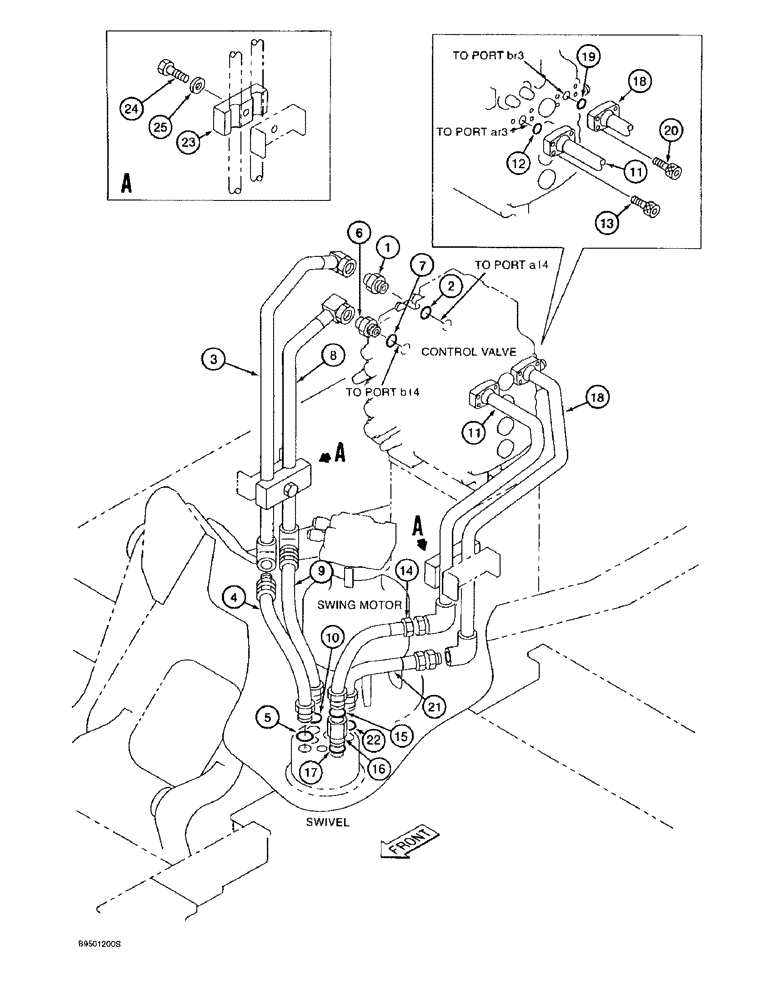

Запчасти Case 9020B (8-070) - TRACK DRIVE HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154503A1

O-RING

- adapter

1шт.

3

161563A1

TUBE

- right-hand track backward travel line (from control valve port, Serial Range: "al4"-hose)

1шт.

4

161541A1

HYDRAULIC HOSE,15.90 mm ID x 560.00 mm

- RH track backward travel line (From "al4" tube to hydraulic swivel port "A"), Includes Ref. 5 15.90 mm ID x 560.00 mm

1шт.

5

154503A1

O-RING

- hose

1шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154503A1

O-RING

- adapter

1шт.

8

161564A1

TUBE,27.2 mm OD, 530, 525 mm Length

- right-hand track forward travel line (from control valve port "bl4" to hose)

1шт.

9

161541A1

HYDRAULIC HOSE,15.90 mm ID x 560.00 mm

- RH track forward travel line (From "bl4" tube to hydraulic swivel port "C"), Includes Ref. 10 15.90 mm ID x 560.00 mm

1шт.

10

154503A1

O-RING

- hose

1шт.

11

161561A1

TUBE

- left-hand track travel forward line (from "ar3" port of control, Serial Range: valve-hose)

1шт.

12

154528A1

O-RING

- tube

1шт.

13

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

14

161159A1

HYDRAULIC HOSE

HOSE - 430 mm (17 inch) long, left-hand track travel forward line (from "ar3" tube to hydraulic swivel port "B"), Includes: Ref. 15

1шт.

15

154503A1

O-RING

- hose

1шт.

16

159198A1

ADAPTER

- special, Includes: Ref. 17

1шт.

17

154503A1

O-RING

- adapter

1шт.

18

161562A1

TUBE

- left-hand track travel backward line (from "br3" port of control, Serial Range: valve-hose)

1шт.

19

154528A1

O-RING

- tube

1шт.

20

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

21

161159A1

HYDRAULIC HOSE

HOSE - 430 mm (17 inch) long, left-hand track travel backward line (from "br3" tube to port "D" of hydraulic swivel), Includes: Ref. 22

1шт.

22

154503A1

O-RING

- hose

1шт.

23

152085A1

COLLAR

CLAMP - tube

2шт.

24

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9

2шт.

25

150811A1

WASHER

- flat, special, 12 mm

2шт.
