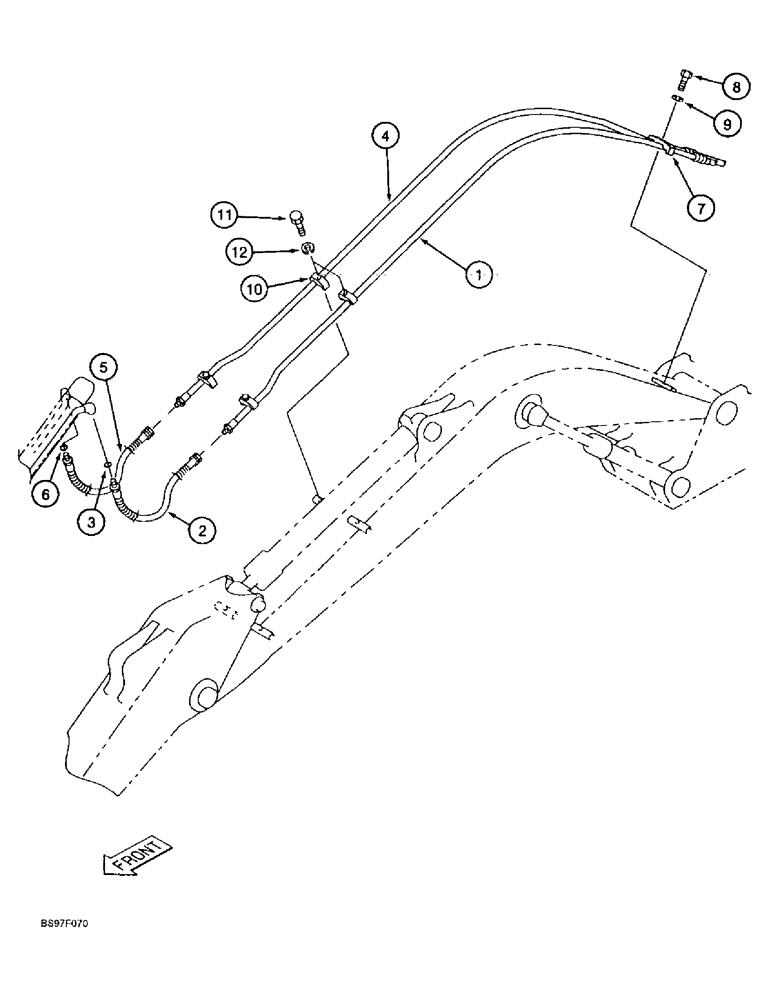

Запчасти Case 9020B (8-068) - BUCKET CYLINDER LINES - 3.05 METER ARM (08) - HYDRAULICS

1

161637A1

TUBE,27.2 mm OD, 3482.6, 2447.3 mm Length

- bucket-open line

1шт.

2

162772A1

HYDRAULIC HOSE,19.00 mm ID x 1700.00 mm

- Bucket-open line, Includes Ref. 3 19.00 mm ID x 1700.00 mm

1шт.

3

154503A1

O-RING

- line seal

1шт.

4

161636A1

TUBE

- bucket-close line

1шт.

5

162772A1

HYDRAULIC HOSE,19.00 mm ID x 1700.00 mm

- Bucket-close line, Includes Ref. 6 19.00 mm ID x 1700.00 mm

1шт.

6

154503A1

O-RING

- line seal

1шт.

7

159742A1

COLLAR

CLAMP - bucket cylinder lines

1шт.

8

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

10

151486A1

CLAMP BRACKET

CLAMP - bucket cylinder lines

4шт.

11

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.
