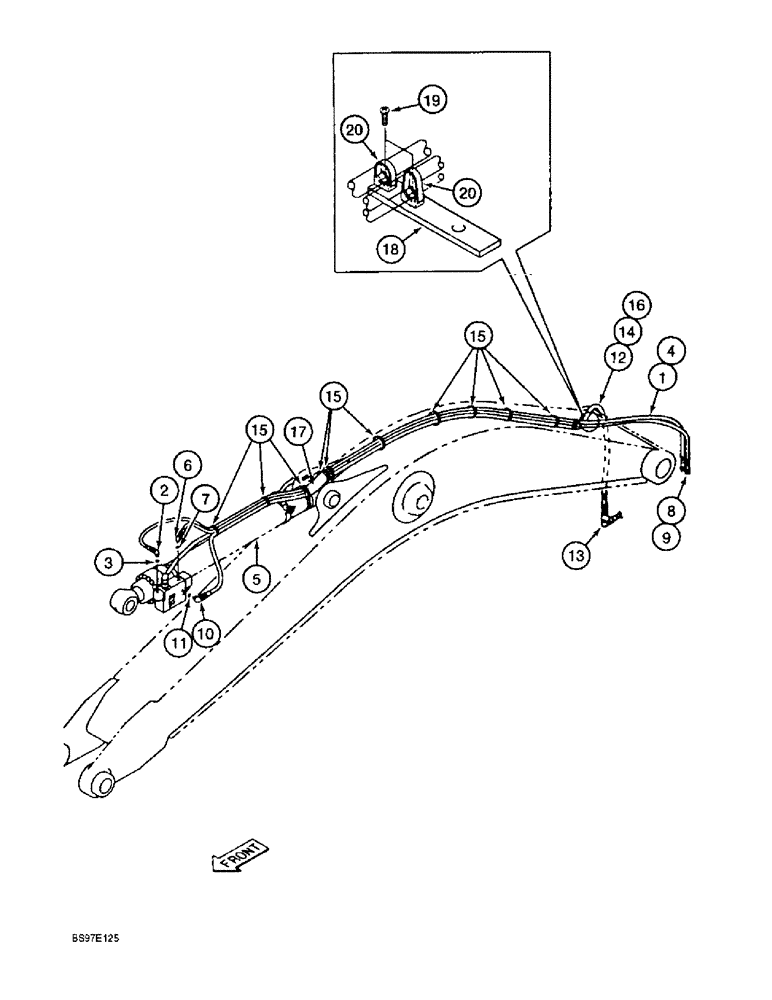

Запчасти Case 9020B (8-064) - ARM AND BOOM HOLDING OPTION, ARM COMPONENTS (08) - HYDRAULICS

1

161969A1

HYDRAULIC HOSE

- 6100 mm (240-1/8 inch) long, Arm cylinder release signal line (From fitting in free end of locking hose bracket to port "P" of the arm cylinder lock valve) See Figure 8-30 Ref. 39 for connection

1шт.

2

159367A1

ELBOW

- 90 degree, special, Includes: Ref. 3

1шт.

3

154475A1

O-RING

- elbow

1шт.

4

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see Figures 8-144 and 8-146 for correct cylinder and components

1шт.

6

159367A1

ELBOW

- 90 degree, special, Includes: Ref. 7

2шт.

7

154475A1

O-RING

- elbow

2шт.

8

161969A1

HYDRAULIC HOSE

- 6100 mm (240-1/8 inch) long, Arm cylinder release signal return line (From port "T" of the arm cylinder lock valve to the fitting in the mounting end of the locking hose bracket) See Figure 8-12 Ref. 32 for connection

2шт.

9

150773A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

2шт.

10

159370A1

ELBOW

- 90 degree, special, Includes: Ref. 11

1шт.

11

154487A1

O-RING

- elbow

2шт.

12

163723A1

HYDRAULIC HOSE,12.70 mm ID x 6100.00 mm

(From arm cylinder lock valve to tee in center of arm and boom return line) 12.70 mm ID x 6100.00 mm

1шт.

13

150915A1

ADAPTER

ELBOW - 45 degree, see Figure 8-12 Ref. 36 for connection

1шт.

14

158061A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 800 mm (31-1/2 inch) long

1шт.

15

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

16

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

17

163160A1

SHEET

PLATE - rubber

1шт.

18

163713A1

BAR

PLATE - support

1шт.

19

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

2шт.

20

150860A1

COLLAR

BRACKET - support, hose

2шт.
