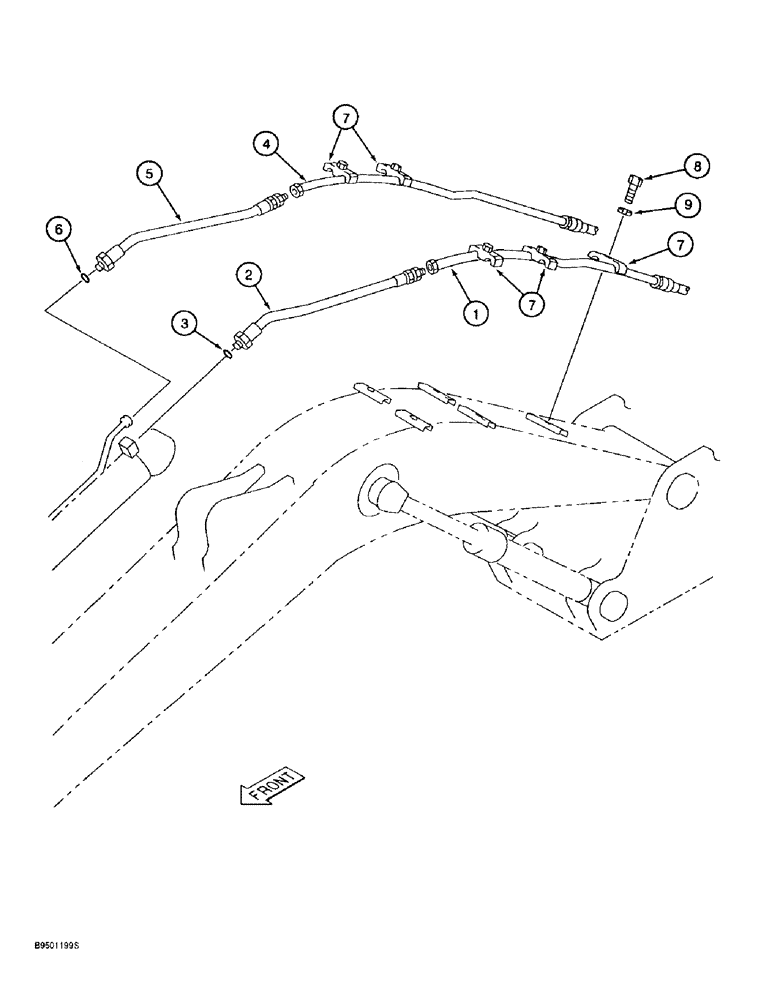

Запчасти Case 9020B (8-062) - ARM CYLINDER LINES (08) - HYDRAULICS

1

161635A1

TUBE

- arm-in line

1шт.

2

159740A1

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

- Arm-in line, Includes Ref. 3 19.00 mm ID x 1000.00 mm

1шт.

3

154503A1

O-RING

- cylinder seal

1шт.

4

161634A1

TUBE

- arm-out line

1шт.

5

159740A1

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

- Arm-out line, Includes Ref. 6 19.00 mm ID x 1000.00 mm

1шт.

6

154503A1

O-RING

- cylinder seal

1шт.

7

159742A1

COLLAR

CLAMP - tube

5шт.

8

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

5шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

5шт.
