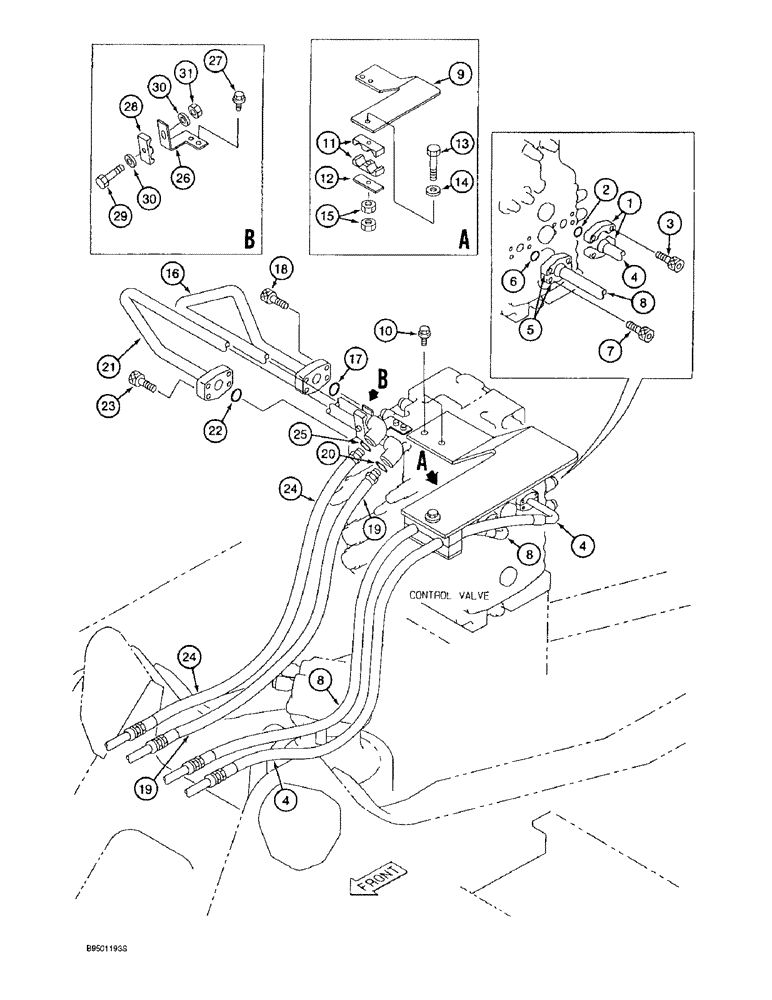

Запчасти Case 9020B (8-060) - ARM AND BUCKET SUPPLY LINES (08) - HYDRAULICS

1

161080A1

FLANGE

- split

2шт.

2

161096A1

O-RING

- split flange

1шт.

3

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 30 mm, class 12.9

4шт.

4

161545A1

HYDRAULIC HOSE,12.70 mm ID x 1250.00 mm

HOSE - 1210 mm (47-5/8 inch) long, bucket-open supply line (connects to control valve port "BR2")

1шт.

5

161080A1

FLANGE

- split

2шт.

6

161096A1

O-RING

- hose seal

1шт.

7

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 30 mm, class 12.9

4шт.

8

161544A1

HYDRAULIC HOSE,15.88mm ID x 1210mm L

Bucket-close supply line (Connects to control valve port "AR2") 15.90 mm ID x 1210.00 mm

1шт.

9

161547A1

COVER

BRACKET - mounting

1шт.

10

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

11

161179A1

HOSE CLAMP

CLAMP - hose

2шт.

12

161160A1

PLATE, SPACER

PLATE - clamp retaining

1шт.

13

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 85 mm, class 10.9

1шт.

14

150811A1

WASHER

- flat, special, 12 mm

1шт.

15

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

16

161169A1

TUBE ASSY.

TUBE - arm-out supply line (connects to control valve port "BL3")

1шт.

17

154528A1

O-RING

- tube seal

1шт.

18

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

19

161546A1

HYDRAULIC HOSE,15.90 mm ID x 1090.00 mm

- Arm supply lines (Connects to control valve ports "AL3 and BL3"), Includes Ref. 20 15.90 mm ID x 1090.00 mm

2шт.

20

154503A1

O-RING

- hose seal

1шт.

21

161164A1

TUBE ASSY.

TUBE - arm-in supply line (connects to control valve port "AL3")

1шт.

22

154528A1

O-RING

- hose seal

1шт.

23

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

24

161546A1

HYDRAULIC HOSE,15.90 mm ID x 1090.00 mm

- Arm supply lines (Connects to control valve ports "AL3 and BL3"), Includes Ref. 25 15.90 mm ID x 1090.00 mm

2шт.

25

154503A1

O-RING

- hose seal

1шт.

26

161171A1

BRACKET

- tube clamp mounting

1шт.

27

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

28

152085A1

COLLAR

CLAMP - tube

1шт.

29

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

30

150811A1

WASHER

- flat, special, 12 mm

2шт.

31

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

3шт.
