Запчасти Case 9020B (8-058) - ARM AND BOOM HOLDING OPTION, BOOM COMPONENTS (08) - HYDRAULICS

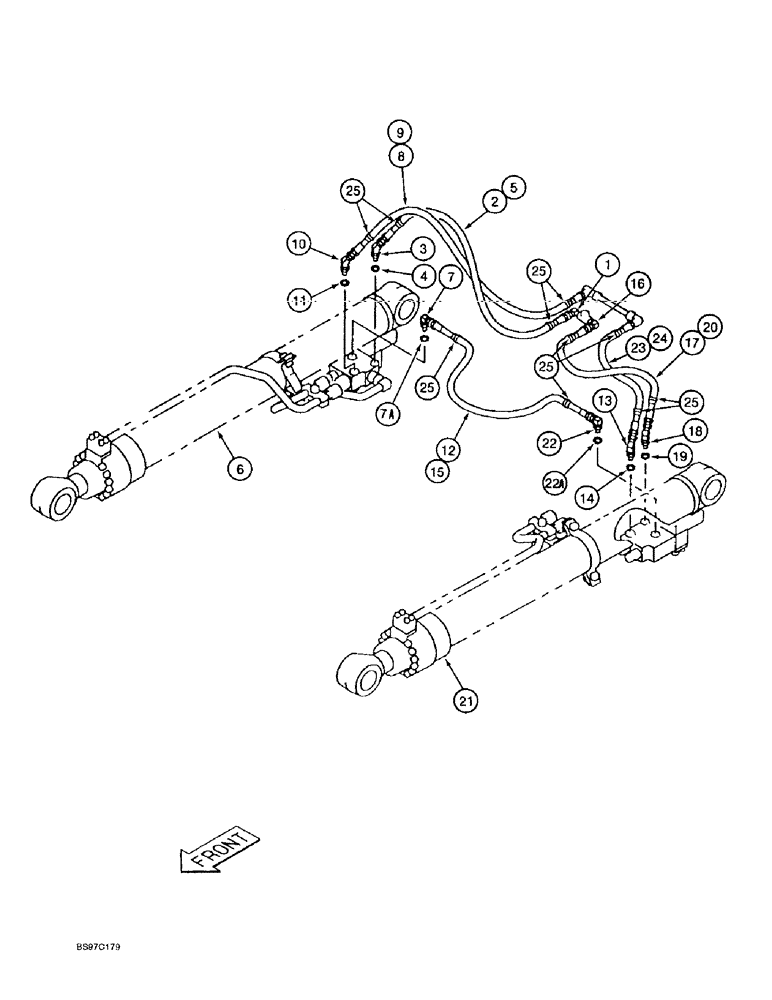

Схема запчастей Case 9020B - (8-058) - ARM AND BOOM HOLDING OPTION, BOOM COMPONENTS (08) - HYDRAULICS
22a
25
25
21
22
17
2
24
7
16
4
20
15
5
7a
3
25
23
25
12
25
9
6
10
13
8
11
19
14
18
1

Артикул

Название

Примечание

Количество

1

153495A1

ADAPTER

ELBOW - 90 degree

1шт.

2

161456A1

HYDRAULIC HOSE,9.50 mm ID x 550.00 mm

Boom release signal line (From tee at arm and boom manifold bracket to port "P" of RH hydraulic cylinder lock valve port) See Figure 8-28, Ref. 41 for connection 9.50 mm ID x 550.00 mm

1шт.

3

161087A1

ELBOW

- 90 degree, special, Includes: Ref. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

5

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long, signal line

1шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, right-hand, see Figures 8-136 and 8-138 for correct cylinder and components

1шт.

7

158784A1

ELBOW

- 90 degree, special, Includes: Ref. 7A

1шт.

7a

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

8

163722A1

HYDRAULIC HOSE,9.50 mm ID x 700.00 mm

- Boom release signal return line (From RH hydraulic cylinder lock valve port "T" to arm and boom return line) see Figure 8-12, Ref. 25 for connection 9.50 mm ID x 700.00 mm

1шт.

9

158060A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, return line

1шт.

10

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 11

1шт.

11

154475A1

O-RING

- elbow

1шт.

12

157845A1

HOSE ASSY.,6.30 mm ID x 750.00 mm

HOSE, , Crossover Line Between Boom Cylinders 6.30 mm ID x 750.00 mm

1шт.

13

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 14

1шт.

14

154475A1

O-RING

- elbow

1шт.

15

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long, crossover line

1шт.

16

153495A1

ADAPTER

ELBOW - 90 degree

1шт.

17

161456A1

HYDRAULIC HOSE,9.50 mm ID x 550.00 mm

Boom release signal line (From tee at arm and boom manifold bracket to port "P" of LH hydraulic cylinder lock valve port) See Figure 8-28, Ref. 41 for connection 9.50 mm ID x 550.00 mm

1шт.

18

161087A1

ELBOW

- 90 degree, special, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

20

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long, signal line

1шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, left-hand, see Figures 8-136 and 8-138 for correct cylinder and components

1шт.

22

158784A1

ELBOW

- 90 degree, special, Includes: Ref. 22A

1шт.

22a

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

23

163722A1

HYDRAULIC HOSE,9.50 mm ID x 700.00 mm

- Boom release signal return line (From LH hydraulic cylinder lock valve port "T" to end of arm and boom return line) see Figure 8-12, Ref. 30 for connection 9.50 mm ID x 700.00 mm

1шт.

24

158060A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, return line

1шт.

25

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

Выбрано товаров: 27
