Запчасти Case 9020B (8-056) - BOOM CYLINDER LINES (08) - HYDRAULICS

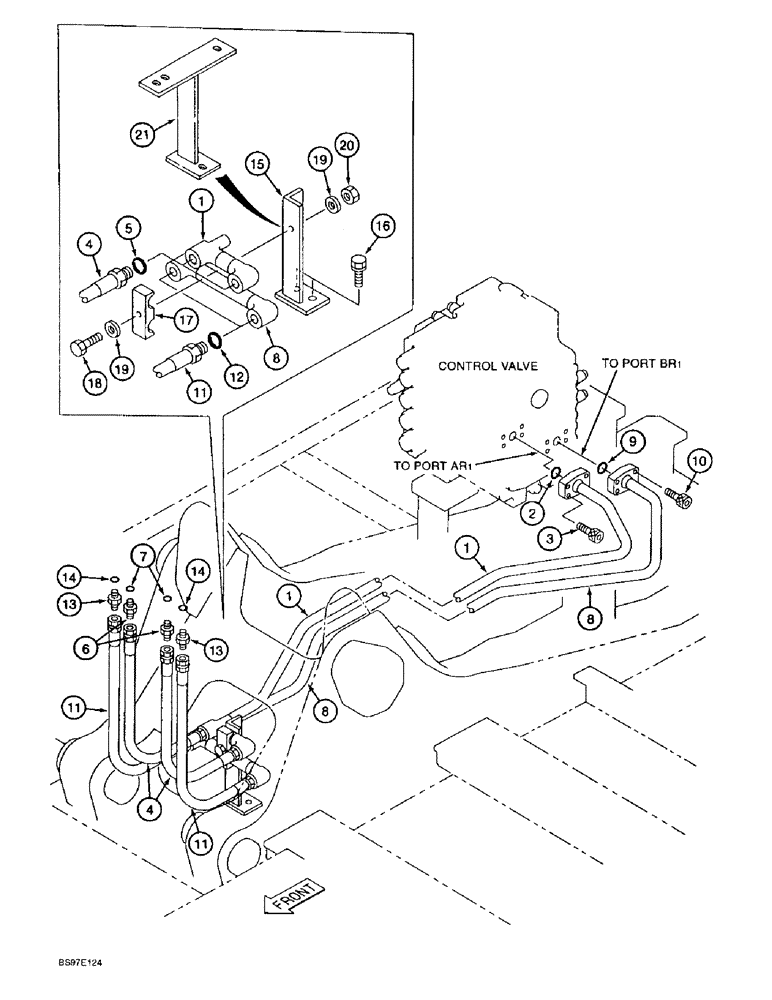

Схема запчастей Case 9020B - (8-056) - BOOM CYLINDER LINES (08) - HYDRAULICS
1
15
3
20
11
4
13
2
13
21
11
8
1
17
8
19
14
19
5
9
12
8
10
14
18
6
11
1
7
4
16

Артикул

Название

Примечание

Количество

1

161568A1

TUBE

- boom-down (connects to control valve port "AR1")

1шт.

2

154499A1

O-RING

- tube

1шт.

3

862-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

BOLT - hex socket, 8 - 1.25 x 30 mm, class 12.9

4шт.

4

162115A1

HOSE ASSY.

HOSE - 650 mm (25-5/8 inch) long, boom-down lines, Includes: Ref. 5

2шт.

5

154487A1

O-RING

- hose

1шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 7

2шт.

7

154503A1

O-RING

- adapter

1шт.

8

162117A1

TUBE

- boom-up (connects to control valve port "BR1")

1шт.

9

154528A1

O-RING

- tube

1шт.

10

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

11

162116A1

HOSE ASSY.

HOSE - 645 mm (25-3/8 inch) long, boom-up lines, Includes: Ref. 12

2шт.

12

154503A1

O-RING

- hose

1шт.

13

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 14

2шт.

14

154503A1

O-RING

- adapter

1шт.

15

161157A1

BRACKET

- mounting, models without load hold

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

17

152085A1

COLLAR

CLAMP - tube

1шт.

18

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

19

150811A1

WASHER

- flat, special, 12 mm

2шт.

20

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

21

163496A1

COVER

BRACKET - mounting, models with load hold

1шт.

Выбрано товаров: 21
