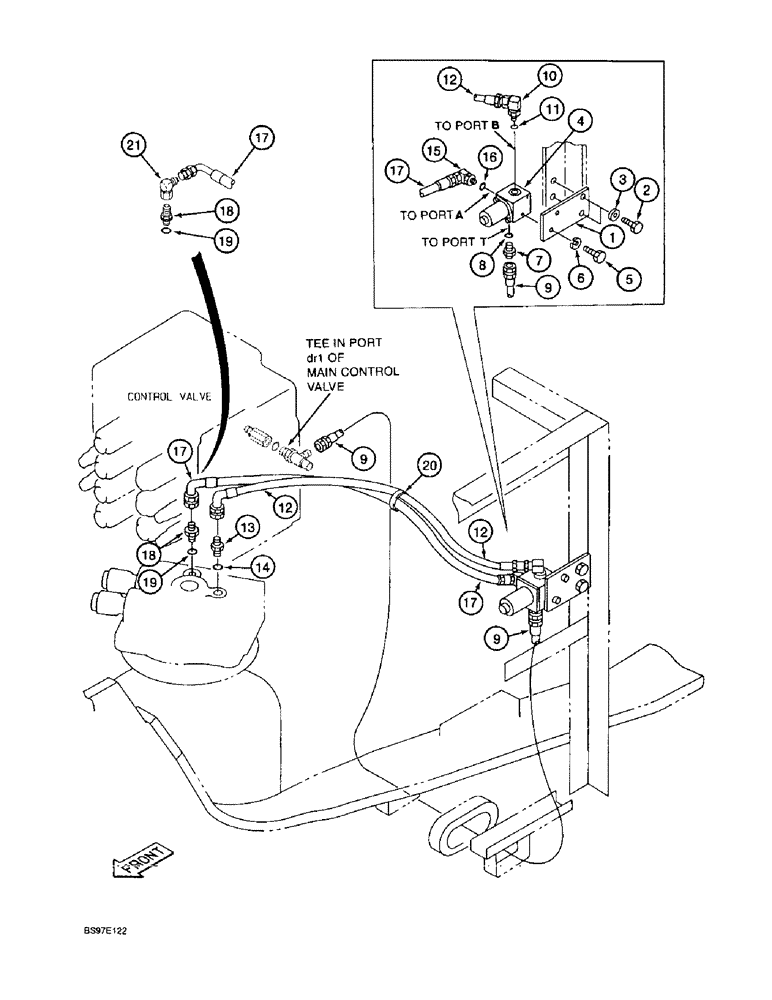

Запчасти Case 9020B (8-050) - FREE SWING CIRCUIT (08) - HYDRAULICS

1

161539A1

BRACKET

- mounting

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

159205A1

VALVE

ASSEMBLY - solenoid, free swing, parts list on Figure 8-126

1шт.

5

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 8

1шт.

Used on units P.I.N. DAC0201004 and after. See Figure 8-052 for parts on units prior to P.I.N. DAC0201004, which are keyed to this figure for comparison purposes.

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

Used on units P.I.N. DAC0201004 and after. See Figure 8-052 for parts on units prior to P.I.N. DAC0201004, which are keyed to this figure for comparison purposes.

1шт.

9

163258A1

HOSE,6.4mm ID x 1750mm L

(from solenoid valve port "T" to tee in main control valve port "dr1") 6.40 mm ID x 1750.00 mm ID

1шт.

Used on units P.I.N. DAC0201004 and after. See Figure 8-052 for parts on units prior to P.I.N. DAC0201004, which are keyed to this figure for comparison purposes.

1шт.

10

158784A1

ELBOW

- 90 degree, special, Includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

12

159204A1

HYDRAULIC HOSE,6.30 mm ID x 650.00 mm

(From solenoid valve port "B" to swing motor) 6.30 mm ID x 650.00 mm

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

15

158784A1

ELBOW

- 90 degree, special, Includes: Ref. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

17

159204A1

HYDRAULIC HOSE,6.30 mm ID x 650.00 mm

- Metering line (From solenoid valve port "A" to swing motor) 6.30 mm ID x 650.00 mm

1шт.

18

159848A1

ORIFICE

ADAPTER - special, with orifice, Includes: Ref. 19 and 20

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

20

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

21

163814A1

ELBOW

- 90 degree, special

1шт.
