Запчасти Case 9020B (8-048) - MISCELLANEOUS PILOT LINES (08) - HYDRAULICS

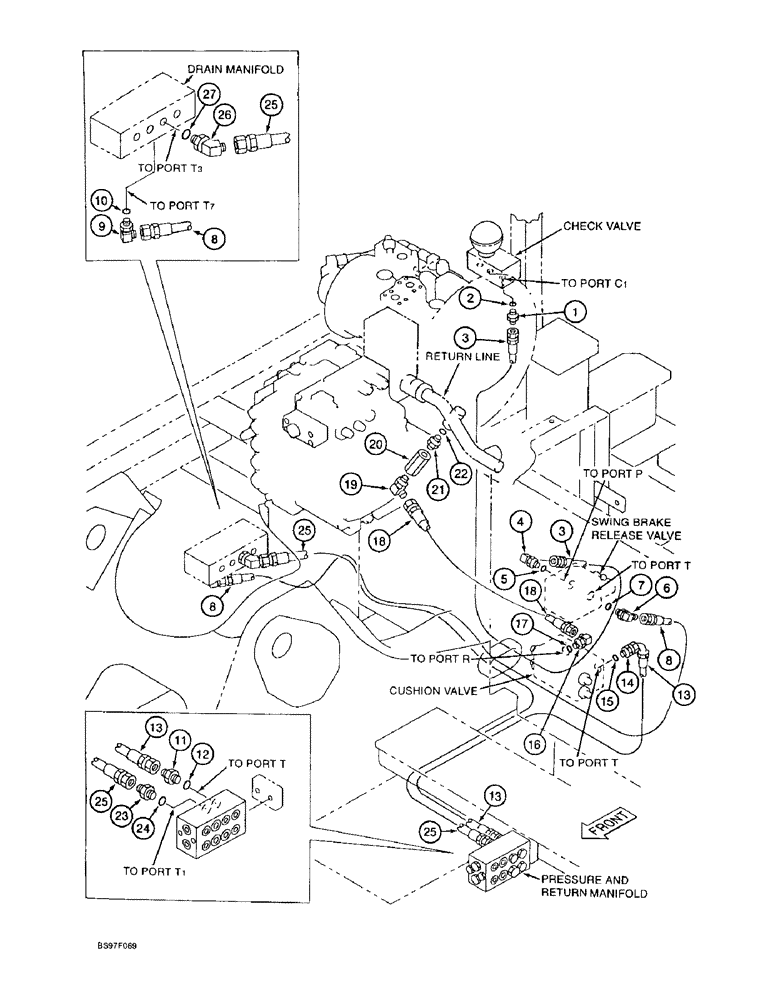

Схема запчастей Case 9020B - (8-048) - MISCELLANEOUS PILOT LINES (08) - HYDRAULICS
6
15
8
16
12
8
3
19
13
13
20
18
23
1
25
22
3
4
7
27
25
11
5
21
26
2
25
25
14
8
13
18
9
10
24
17

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

157851A1

HOSE

- 2850 mm (112-3/16 inch) long (check valve port "C1" to swing brake release valve port "P")

1шт.

4

156554A1

ELBOW

- 90 degree, special, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- elbow

1шт.

6

156554A1

ELBOW

- 90 degree, special, Includes: Ref. 7

1шт.

7

154475A1

O-RING

- elbow

1шт.

8

152773A1

HOSE ASSY.

HOSE - 1850 mm (72-13/16 inch) long ( swing brake release valve port "T" to drain manifold port "T7")

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

11

153378A1

ADAPTER

- straight, Includes: Ref. 12

1шт.

12

154475A1

O-RING

- adapter

1шт.

13

159019A1

HOSE ASSY.

HOSE - 900 mm (35-7/8 inch) long (pressure and return manifold port "T" to cushion valve port "T")

1шт.

14

153378A1

ADAPTER

- straight, Includes: Ref. 15

1шт.

15

154475A1

O-RING

- adapter

1шт.

16

156554A1

ELBOW

- 90 degree, special, Includes: Ref. 17

1шт.

17

154475A1

O-RING

- elbow

1шт.

18

152514A1

HOSE,63mm ID x 1000mm L

(Cushion valve port "R" to return line) 63.00 mm ID x 1000.00 mm

1шт.

19

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

20

151552A1

FILTER

- hydraulic, in-line

1шт.

21

152899A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector

1шт.

23

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 24

1шт.

24

154475A1

O-RING

- adapter

1шт.

25

152764A1

HOSE ASSY.

HOSE - 2000 mm (78-3/4 inch) long (pressure and return manifold port "T1" to drain manifold port "T3")

1шт.

26

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 27

1шт.

27

154475A1

O-RING

- elbow

1шт.

Выбрано товаров: 27
