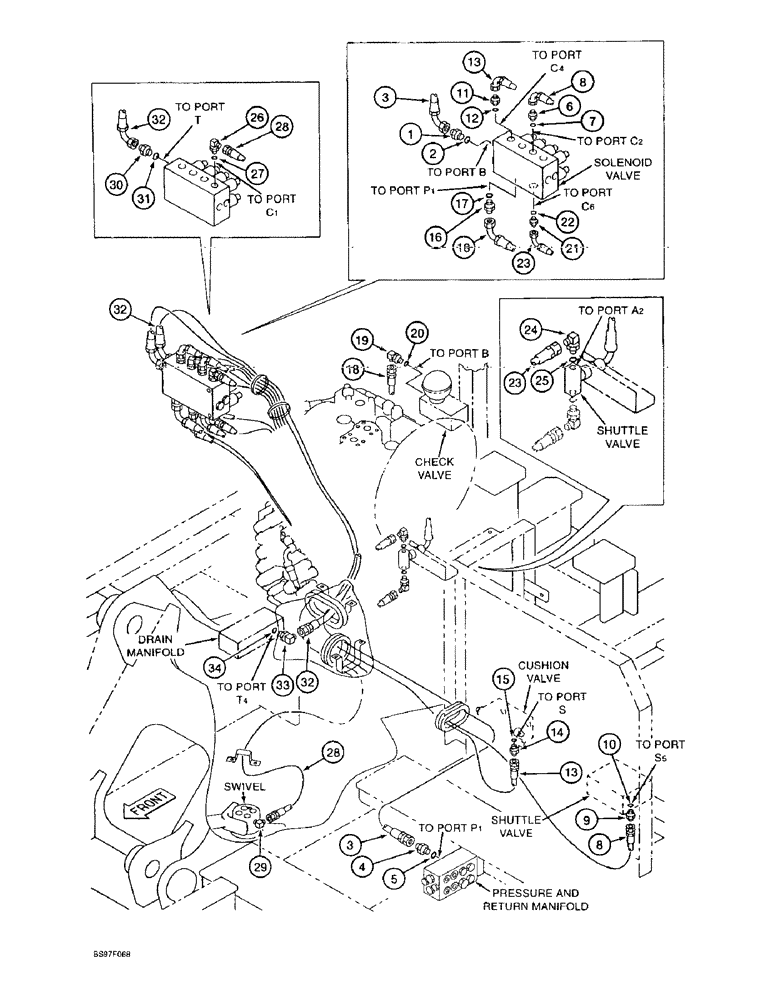

Запчасти Case 9020B (8-046) - SOLENOID VALVE PILOT LINES (08) - HYDRAULICS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 2

1шт.

2

154475A1

O-RING

- adapter

1шт.

3

161656A1

HOSE ASSY.

HOSE - 3100 mm (122 inch) long (solenoid valve port "B" to pressure and return manifold port "P1")

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

161086A1

HYDRAULIC HOSE

- 2800 mm (110-1/4 inch) long (Solenoid valve port "C2" to shuttle valve port "S5"), Serial Range: -DAC0201173

1шт.

8

163359A1

HOSE ASSY.

HOSE - 2750 mm (108-1/4 inch) long (solenoid valve port "C2" to shuttle valve port "S5"), Start Serial: DAC0201173

1шт.

8

163359A1

HOSE ASSY.

HOSE - 2750 mm (108-1/4 inch) long (solenoid valve port "C2" to shuttle valve port "S5"), Start Serial: DAC0211001

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

159020A1

HOSE

- 2450 mm (96-7/16 inch) long (solenoid valve port "C4" to cushion valve port "S")

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154475A1

O-RING

- adapter

1шт.

18

161492A1

HOSE

- 1150 mm (45-1/4 inch) long (Solenoid valve port "P1" to check valve port "B")

1шт.

19

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 20

1шт.

20

154475A1

O-RING

- elbow

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

23

161659A1

HYDRAULIC HOSE

- 700 mm (27-5/8 inch) long (Solenoid valve port "C6" to shuttle valve port "A2"), Serial Range: -DAC0201173

1шт.

23

159013A1

HOSE ASSY.

HOSE - 600 mm (23-5/8 inch) long (solenoid valve port "C6" to shuttle valve port "A2"), Start Serial: DAC0201173

1шт.

23

159013A1

HOSE ASSY.

HOSE - 600 mm (23-5/8 inch) long (solenoid valve port "C6" to shuttle valve port "A2"), Start Serial: DAC0211001

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

28

152709A1

HOSE,6.4mm ID x 2100mm L

(Solenoid valve port "C1" to hydraulic swivel) 64.00 mm ID x 2100.00 mm

1шт.

29

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

30

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 31

1шт.

31

154475A1

O-RING

- adapter

1шт.

32

159011A1

HOSE ASSY.

HOSE - 1250 mm (49-3/16 inch) long (solenoid valve port "T" to drain manifold port "T4")

1шт.

33

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 34

1шт.

34

154475A1

O-RING

- elbow

1шт.
