(8-042) - CONTROL VALVE PILOT LINES

Запчасти Case 9020B (8-042) - CONTROL VALVE PILOT LINES (08) - HYDRAULICS

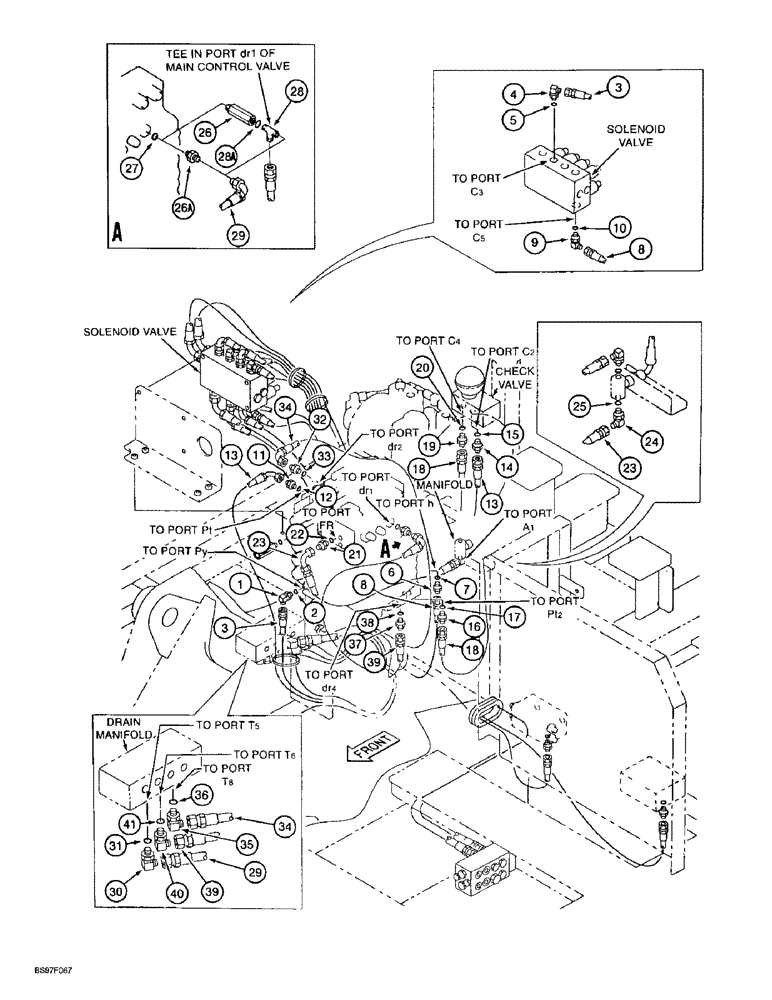

Схема запчастей Case 9020B - (8-042) - CONTROL VALVE PILOT LINES (08) - HYDRAULICS
22
4
41
40
28a
23
13
2
3
15
28
26
14
33
12
30
19
24
39
8
38
29
37
8
32
5
20
18
17
13
16
21
1
11
26a
10
31
25
39
18
6
23
29
3
27
34
7
9
34
35
36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

151892A1

HOSE,6.3mm ID x 1950mm L

(Control valve port "PY" to solenoid valve port "C3") 1950.00 mm

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

151888A1

HOSE,63.00 mm ID x 1350.00 mm

(Control valve port "h" to solenoid valve port "C5") 63.00 mm ID x 1350.00 mm

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

161648A1

HOSE ASSY.

HOSE - 2300 mm (90-9/16 inch) long ( control valve port "Pt" to check valve port "C2")

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

152604A1

HOSE,63.00 mm ID x 1600.00 mm

- Control valve port "Pt2" to check valve port "C4") 63.00 mm ID x 1600.00 mm

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

23

161485A1

HOSE ASSY.

HOSE - 1850 mm (72-13/16 inch) long (control valve port "FR" to shuttle valve port "A1")

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

162525A1

STUD

ADAPTER - straight, special, Includes Ref. 27, O-Ring

1шт.

Used on units P.I.N. DAC0201004 and after.

1шт.

26a

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 27

1шт.

Used on units prior to P.I.N. DAC0201004. These units can be updated by replacing Ref. 26A and 27 with Ref. 26 and 27 - 28A, plus other parts identified on Figures 8-002, 8-00, 8-018, and 8-050.

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

2шт.

Used on units P.I.N. DAC0201004 and after.

1шт.

Used on units prior to P.I.N. DAC0201004. These units can be updated by replacing Ref. 26A and 27 with Ref. 26 and 27 - 28A, plus other parts identified on Figures 8-002, 8-00, 8-018, and 8-050.

1шт.

28

159497A1

TEE

- special, Includes: Ref. 28A

1шт.

Used on units P.I.N. DAC0201004 and after.

1шт.

28a

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

2шт.

Used on units P.I.N. DAC0201004 and after.

1шт.

29

161271A1

HOSE ASSY.

HOSE - 1650 mm (64-15/16 inch) long (control valve port "dr1" to drain manifold port "T5")

1шт.

30

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 31

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

34

161491A1

HOSE

- 1300 mm (51-3/16 inch) long (Control valve port "dr2" to drain manifold port "T8")

1шт.

35

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

37

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

39

151872A1

HOSE ASSY.

HOSE - 850 mm (33-1/2 inch) long (control valve port "dr4" to drain manifold port "T6")

1шт.

40

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.
