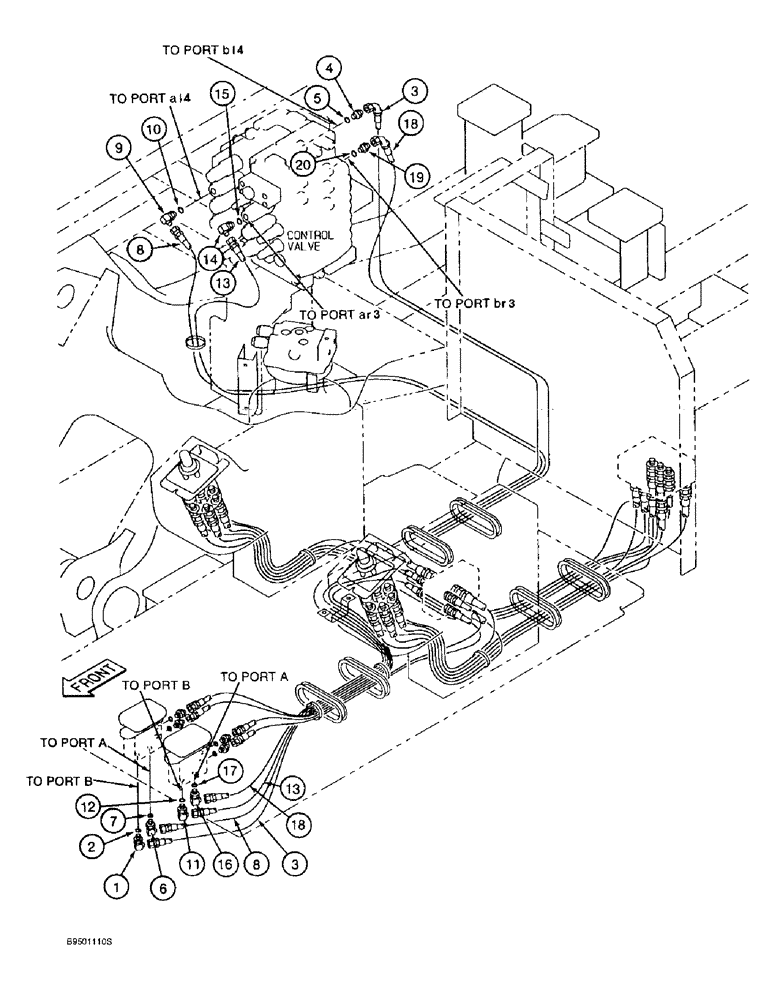

Запчасти Case 9020B (8-036) - TRAVEL CONTROL LINES (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

3

161077A1

HOSE ASSY.

HOSE - 3400 mm (133-7/8 inch) long, right-hand forward-travel line (right-hand controller port "B" to control valve port "bl4")

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

8

161293A1

HOSE

- 3600 mm (141-3/4 inch) long, RH backward-travel line (RH controller port "A" to control valve port "al4")

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

13

161292A1

HOSE,3550.00 mm

- LH forward-travel line (Left-hand controller port "B" to control valve port "ar3") 3550.00 mm

1шт.

14

150933A1

ELBOW

- 45 degree, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

18

161458A1

HOSE ASSY.

HOSE - 3300 mm (129-15/16 inch) long, left-hand backward-travel line) left-hand controller port "A" to control valve port "br3")

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.
