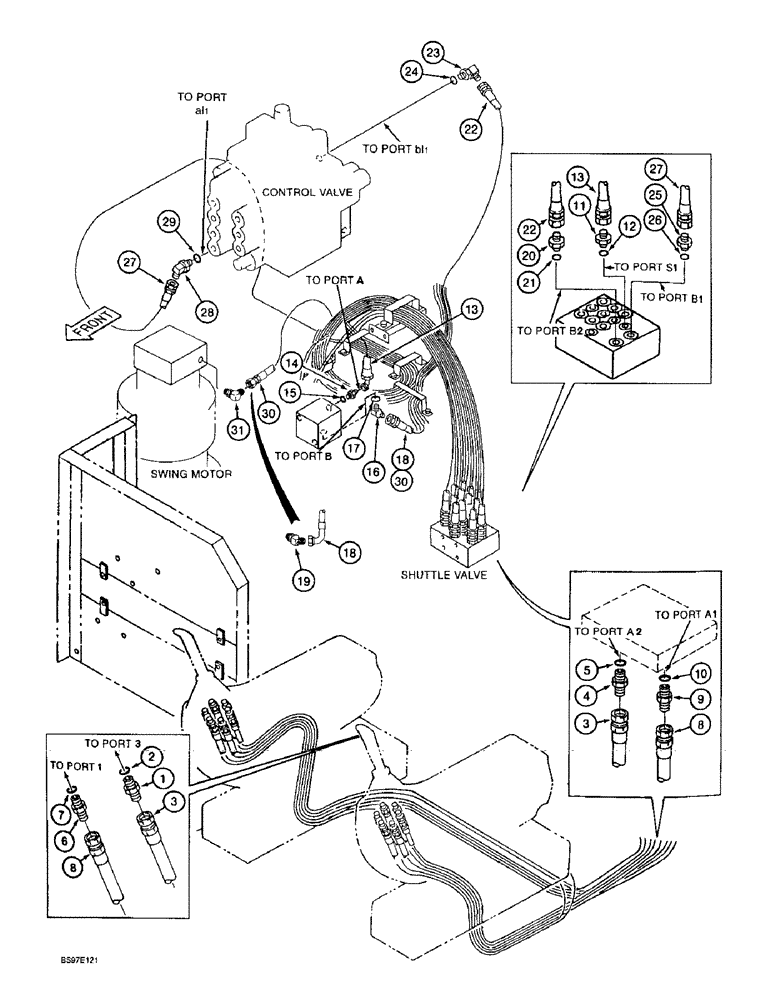

Запчасти Case 9020B (8-034) - SWING CONTROL LINES (08) - HYDRAULICS

1

152747A1

ADAPTER

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159215A1

HYDRAULIC HOSE,9.50 mm ID x 1650.00 mm

- Swing left line (LH controller port "3" to shuttle valve port "A2") 9.50 mm ID x 1650.00 mm

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152747A1

ADAPTER

- straight, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

8

159216A1

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

- Swing-right line (LH controller port "1" to shuttle valve port "A1") 9.50 mm ID x 1750.00 mm

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154475A1

O-RING

- adapter

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

13

159017A1

HOSE

- 700 mm (27-5/8 inch) long, swing control line (shuttle valve port "S1" to swing brake release valve port "A")

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

150933A1

ELBOW

- 45 degree, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

18

162648A1

HOSE

- 1150 mm (45-1/4 inch) long, swing control line (swing brake release valve port "B" to swing motor), Serial Range: -DAC0201377

1шт.

19

153599A1

ADAPTER

ELBOW - 45 degree, Serial Range: -DAC0201377

1шт.

20

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 21

1шт.

21

154475A1

O-RING

- adapter

1шт.

22

152764A1

HOSE ASSY.

HOSE - 2000 mm (78-3/4 inch) long, swing-left line (shuttle valve port "B2" to control valve port "bl1")

1шт.

23

153559A1

ELBOW

- 90 degree, Includes: Ref. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

25

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 26

1шт.

26

154475A1

O-RING

- adapter

1шт.

27

157969A1

HOSE

- 2600 mm (102-3/8 inch) long, swing-right line (shuttle valve port "B1" to control valve port "al1")

1шт.

28

153559A1

ELBOW

- 90 degree, Includes: Ref. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

30

164728A1

HYDRAULIC HOSE,6.30 mm ID x 1150.00 mm

6.30 mm ID x 1150.00 mm, Start Serial: DAC0201377

1шт.

30

164728A1

HYDRAULIC HOSE,6.30 mm ID x 1150.00 mm

6.30 mm ID x 1150.00 mm, Start Serial: DAC0211001

1шт.

31

153596A1

ADAPTER

ELBOW - 90 degree, Start Serial: DAC0201377

1шт.

31

153596A1

ADAPTER

ELBOW - 90 degree, Start Serial: DAC0211001

1шт.
