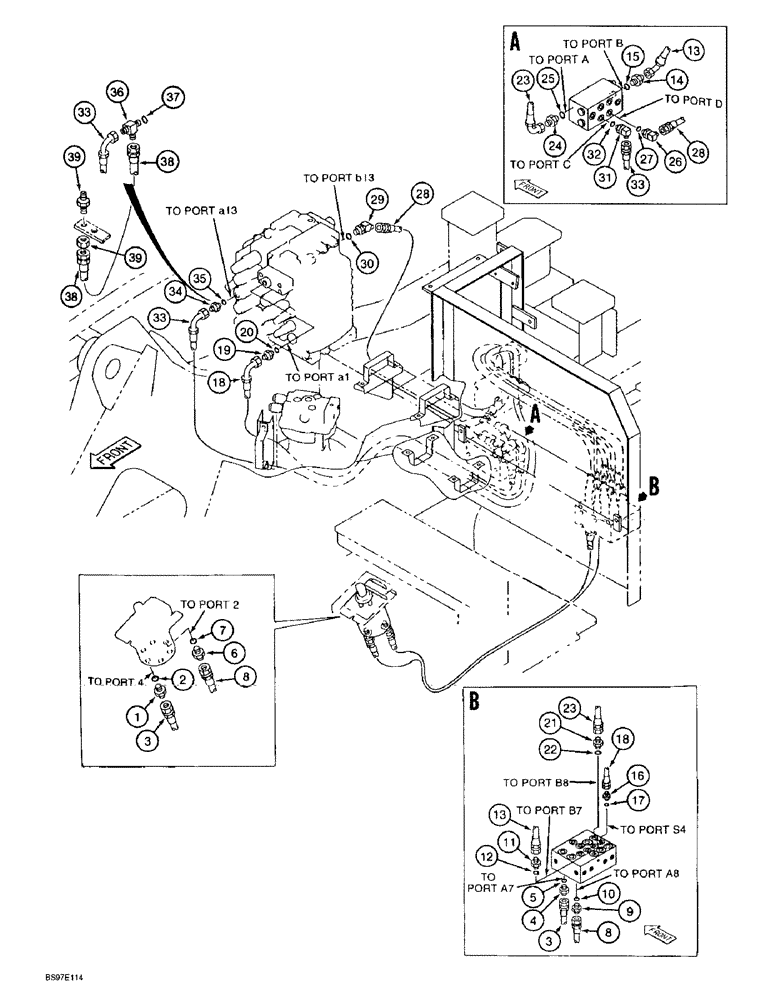

Запчасти Case 9020B (8-030) - ARM CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
- straight, Includes: Ref. 2
1шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
3
159217A1
HYDRAULIC HOSE
HOSE - 1850 mm (72-13/16 inch) long, arm-out line (left-hand controller port "4" to shuttle valve port "A7")
1шт.
4
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 5
1шт.
5
154475A1
O-RING
- adapter
1шт.
6
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
- straight, Includes: Ref. 7
1шт.
7
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
8
159216A1
HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm
- Arm-in line (LH controller port "2" to shuttle valve port "A8") 9.50 mm ID x 1750.00 mm
1шт.
9
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 10
1шт.
10
154475A1
O-RING
- adapter
1шт.
11
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 12
1шт.
12
154475A1
O-RING
- adapter
1шт.
13
159223A1
HOSE ASSY.
HOSE - 1100 mm (44-3/16 inch) long, arm-out line (shuttle valve port "B7" to cushion valve port "B")
1шт.
14
153120A1
HYD CONNECTOR
ADAPTER - straight, Includes: Ref. 15
1шт.
15
154486A1
O-RING
- adapter
1шт.
16
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER - straight, Includes: Ref. 17
1шт.
17
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
18
162193A1
HOSE ASSY.
HOSE - 2900 mm (114-3/16 inch) long, arm-in line (shuttle valve port "S4" to control valve port "a1")
1шт.
19
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ADAPTER - straight, Includes: Ref. 20
1шт.
20
154467A1
O-RING,10.8mm ID x 2.4mm Width
- elbow
1шт.
21
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ADAPTER - straight, Includes: Ref. 22
1шт.
22
154475A1
O-RING
- adapter
1шт.
23
159224A1
HOSE ASSY.
HOSE - 900 mm (35-7/16 inch) long, arm-in line (shuttle valve port "B8" to cushion valve port "A")
1шт.
24
153120A1
HYD CONNECTOR
ADAPTER - straight, Includes: Ref. 25
1шт.
25
154486A1
O-RING
- adapter
1шт.
26
157584A1
ELBOW
- 90 degree, special, Includes: Ref. 27
1шт.
27
154475A1
O-RING
- elbow
1шт.
28
152757A1
HOSE ASSY.
HOSE - 1200 mm (47-1/4 inch) long, arm-out line, (cushion valve port "D" to control valve port "bl3")
1шт.
29
161087A1
ELBOW
- 90 degree, special, Includes: Ref. 30
1шт.
30
154467A1
O-RING,10.8mm ID x 2.4mm Width
- elbow
1шт.
31
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
- 90 degree, Includes: Ref. 32
1шт.
32
154475A1
O-RING
- elbow
1шт.
33
159229A1
HOSE ASSY.
HOSE - 1650 mm (65 inch) long, arm-in line (cushion valve port "C" to control valve port "al3")
1шт.
34
152747A1
ADAPTER
- straight, models without load hold, Includes: Ref. 35
1шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
- adapter
1шт.
36
162827A1
TEE
- special, models with load hold, Includes: Ref. 37
1шт.
37
154467A1
O-RING,10.8mm ID x 2.4mm Width
- tee
1шт.
38
159011A1
HOSE ASSY.
HOSE - 1250 mm (49-3/16 inch) long, models with load hold
1шт.
39
162826A1
ADAPTER
- straight, special, see Figure 8-64 Ref. 1 for connection
1шт.
Выбрано товаров: 39
