Запчасти Case 9020B (2-002) - ENGINE MOUNTING (02) - ENGINE

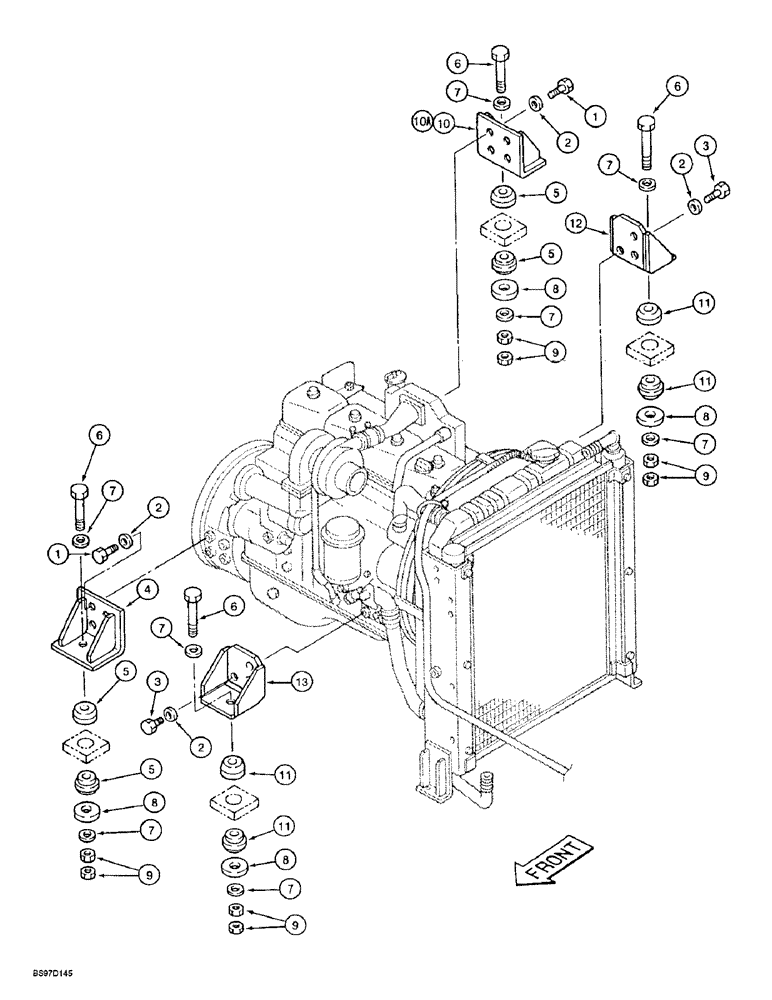

Схема запчастей Case 9020B - (2-002) - ENGINE MOUNTING (02) - ENGINE
3
6
2
6
4
2
8
5
5
11
2
6
5
10
13
3
7
8
12
7
5
1
11
10a
7
8
1
7
11
7
8
11
7
9
9
2
7
7
9
6
9

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

ENGINE ASSEMBLY - see Figures 2-26 - 2-96 and 3-12 - 3-28 for correct assembly and components

1шт.

1

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

8шт.

2

150811A1

WASHER

- flat, special, 12 mm

14шт.

3

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

6шт.

4

161128A1

SUPPORT

BRACKET - engine mounting, right-hand, front

1шт.

5

159782A1

GROMMET

ISOLATOR - rubber, engine mounting

4шт.

6

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

- hex, 16 - 2.0 x 140 mm, class 10.9

4шт.

7

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

8шт.

8

161127A1

WASHER

- special, isolator

4шт.

9

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

8шт.

10

161646A1

ENGINE MOUNT

BRACKET - engine mounting, right-hand, rear, Serial Range: -DAC02#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.

10a

164623A1

ENGINE MOUNT

BRACKET - engine mounting, right-hand, rear, Start Serial: DAC02#2001

1шт.

See Figure 1-002 for explanation of model variations.

1шт.

11

161122A1

INSULATOR BLOCK

ISOLATOR - rubber, engine mounting

4шт.

12

161129A1

ENGINE MOUNT

BRACKET - engine mounting, left-hand, rear

1шт.

13

151291A1

ENGINE MOUNT

BRACKET - engine mounting, left-hand, front

1шт.

Выбрано товаров: 17
