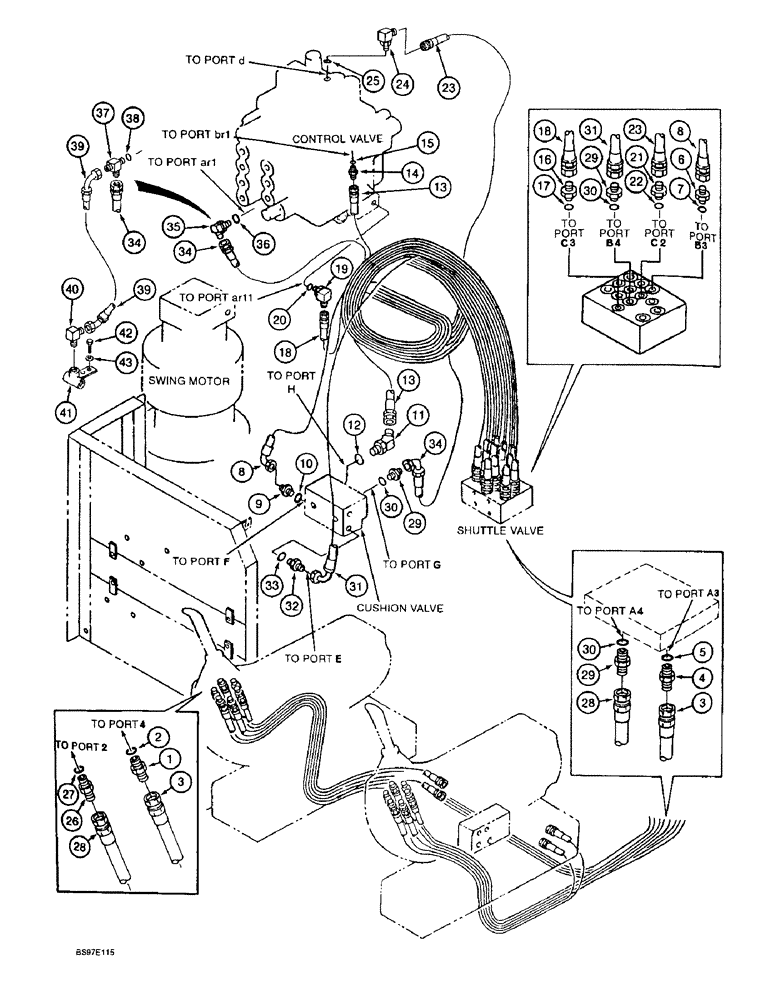

Запчасти Case 9020B (8-028) - BOOM CONTROL LINES (08) - HYDRAULICS

1

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

3

159211A1

HYDRAULIC HOSE

HOSE - 2000 mm (78-3/4 inch) long, boom-up control line, right hand console to shuttle valve (controller port "4" to shuttle valve port "A3")

1шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 5

1шт.

5

154475A1

O-RING

- adapter

1шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 7

1шт.

7

154475A1

O-RING

- adapter

1шт.

8

159223A1

HOSE ASSY.

HOSE - 1100 mm (44-3/16 inch) long, boom-up control line (shuttle valve port "B3" to cushion valve port "F")

1шт.

9

153120A1

HYD CONNECTOR

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154486A1

O-RING

- adapter

1шт.

11

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 12

1шт.

12

154475A1

O-RING

- adapter

1шт.

13

152751A1

HOSE,95.00 mm ID x 1000.00 mm

- Boom-up control line (Cushion valve port "H" to control valve port "br1") 95.00 mm ID x 1000.00 mm

1шт.

14

152747A1

ADAPTER

- straight, Includes: Ref. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

18

152773A1

HOSE ASSY.

HOSE - 1850 mm (72-13/16 inch) long, boom-up/down control line (shuttle valve port "C3" to control valve port "ar11")

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

23

158182A1

HOSE,6.40 mm ID x mm

- 2400 mm (94-1/2 inch) long, boom-up control line (shuttle valve port "C2" to control valve port "d")

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

- straight, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

1шт.

28

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

- Boom-down control line (RH controller port "2" to shuttle valve port "A4") 9.50 mm ID x 2100.00 mm

1шт.

29

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 30

3шт.

30

154475A1

O-RING

- adapter

1шт.

31

159224A1

HOSE ASSY.

HOSE - 900 mm (35-7/16 inch) long, boom-down control line (shuttle valve port "B4" to cushion valve port "E")

1шт.

32

153120A1

HYD CONNECTOR

ADAPTER - straight, Includes: Ref. 33

1шт.

33

154486A1

O-RING

- adapter

1шт.

34

159229A1

HOSE ASSY.

HOSE - 1650 mm (65 inch) long, boom-down control line (cushion valve port "G" to control valve port "ar1")

1шт.

35

153559A1

ELBOW

- 90 degree, models without load hold, Includes: Ref. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

37

162827A1

TEE

- special, models with load hold, Includes: Ref. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

- tee

1шт.

39

163716A1

HOSE

- 1400 mm (55-1/8 inch) long, models with load hold

1шт.

40

153495A1

ADAPTER

ELBOW - 90 degree, models with load hold

1шт.

41

161976A1

TEE

- special, models with load hold, see Figure 8-58 Ref. 2 and 17 for connections

1шт.

42

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

43

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.
