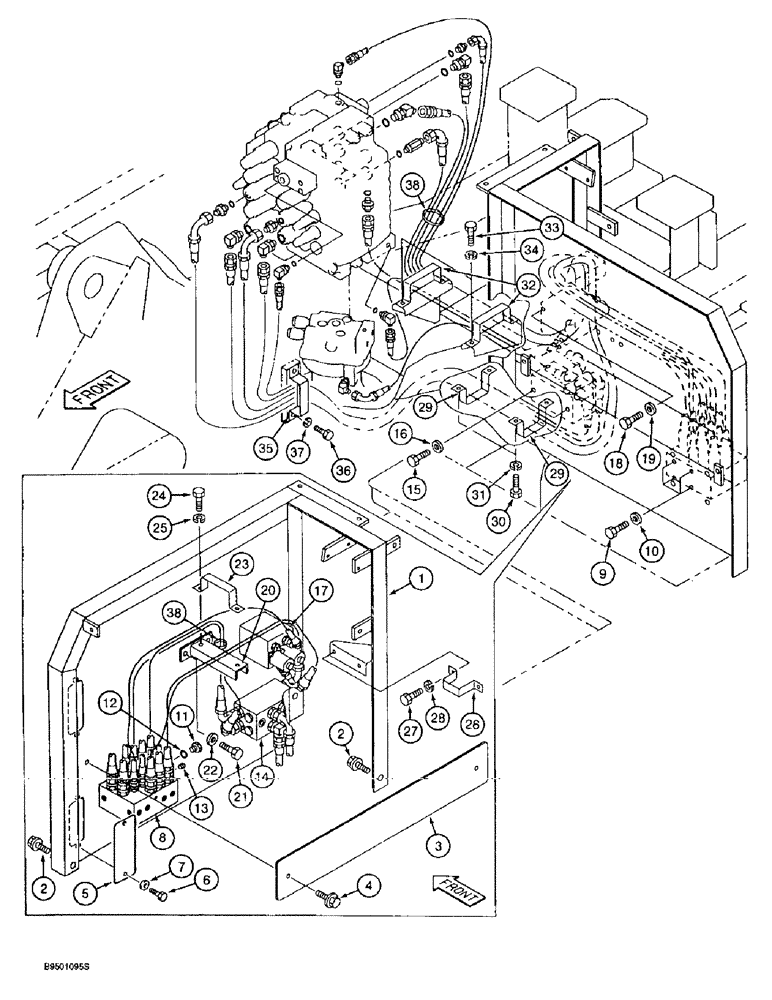

Запчасти Case 9020B (8-022) - CONTROL COMPONENT MOUNTING AND HOSE SUPPORTS (08) - HYDRAULICS

1

164750A1

BRACKET

- component mounting, was 162689A1, Serial Range: -DAC02#2001

1шт.

1

165733A1

BRACKET

- component mounting, Start Serial: DAC02#2001

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

3

161208A1

COVER

- access

1шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

5

161560A1

COVER

- access

2шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

7

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

8

159221A1

VALVE

- shuttle

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

10

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

11

159002A1

PLUG

- port, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

13

151026A1

PLUG

- port

1шт.

14

161005A1

VALVE

ASSEMBLY - cushion, models without load hold, parts list Figure 8-128

1шт.

14

163703A1

VALVE

ASSEMBLY - cushion, models with load hold, parts list Figure 8-128

1шт.

15

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

16

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

17

161311A1

VALVE

ASSEMBLY - swing brake release, Parts list Figure 8-130

1шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

19

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

20

159248A1

BRACKET

- support

1шт.

21

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

22

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

23

159038A1

CLAMP

- support

1шт.

24

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

25

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

26

159032A1

CLAMP

- support

1шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

29

159033A1

CLAMP

- support

2шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

31

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

32

159038A1

CLAMP

- support

2шт.

33

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

34

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

35

159033A1

CLAMP

- support

2шт.

36

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

37

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

38

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

2шт.
