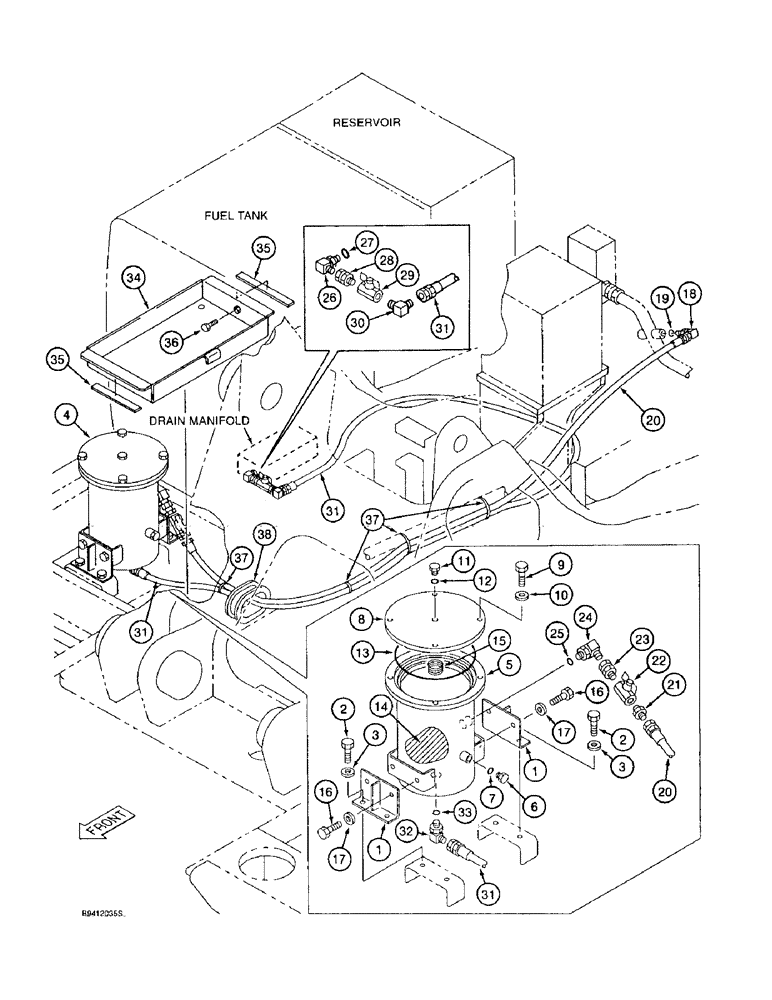

Запчасти Case 9020B (8-018) - BYPASS OIL FILTER AND LINES (08) - HYDRAULICS

1

159286A1

BRACKET

- mounting

2шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

4

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - bypass oil, Includes: Ref. 5 - 15

1шт.

5

159281A1

BODY

HOUSING - bypass filter

1шт.

6

159002A1

PLUG

- port, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

8

159283A1

COVER

- bypass filter

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

10

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

11

159285A1

PLUG

- port, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

13

154859A1

O-RING

- bypass filter

1шт.

14

159282A1

HYDRAULIC OIL FILTER

ELEMENT - filter, bypass

1шт.

15

159837A1

SPRING

- compression

1шт.

16

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

17

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

18

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

20

152270A1

HOSE,6.3mm ID x 2600mm L

Filter inlet line 63.00 mm ID x 2600.00 mm

1шт.

21

153603A1

ADAPTER

- straight

1шт.

22

158923A1

DRAIN VALVE

VALVE - line shut-off

1шт.

23

153601A1

ADAPTER

- straight

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

26

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree (common), Includes: Ref. 27

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration is shown on Figure 8-020 with part numbers keyed to this figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow (common)

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration is shown on Figure 8-020 with part numbers keyed to this figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common

1шт.

28

153601A1

ADAPTER

- straight (common)

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration is shown on Figure 8-020 with part numbers keyed to this figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common

1шт.

29

158923A1

DRAIN VALVE

VALVE - line shut-off (common)

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration is shown on Figure 8-020 with part numbers keyed to this figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common

1шт.

30

153596A1

ADAPTER

ELBOW - 90 degree

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration is shown on Figure 8-020 with part numbers keyed to this figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common

1шт.

31

159007A1

HOSE

- 2300 mm (90-9/16 inch) long, filter discharge line

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration is shown on Figure 8-020 with part numbers keyed to this figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common

1шт.

32

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree (common), Includes: Ref. 33

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration is shown on Figure 8-020 with part numbers keyed to this figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow (common)

1шт.

This part is used on units P.I.N. DAC0101004 and after. An earlier configuration is shown on Figure 8-020 with part numbers keyed to this figure for comparison purposes. This part is not interchangeable with parts from the earlier configuration unless labeled as common

1шт.

34

162539A1

COVER

- special

1шт.

35

162540A1

CUSHION

- rubber

2шт.

36

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.

37

150498A1

MOUNTING CLIP

STRAP - tie

4шт.

38

164687A1

GROMMET

- rubber, was 162190A1

2шт.
