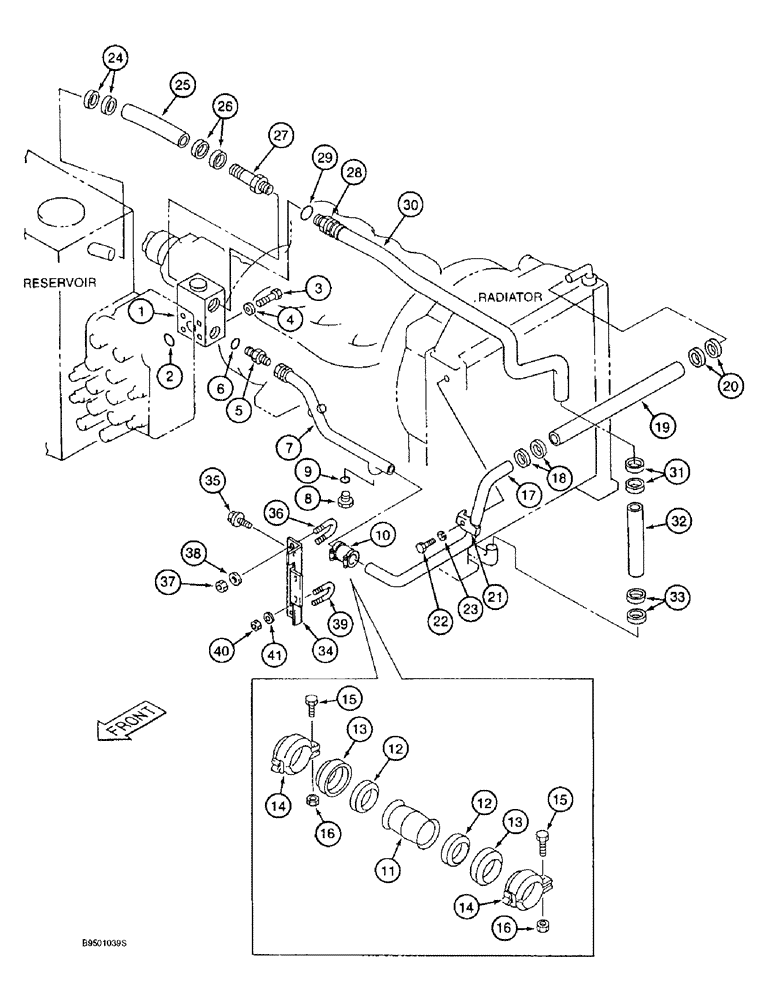

Запчасти Case 9020B (8-016) - COOLING SYSTEM SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

163248A1

MANIFOLD VALVE

MANIFOLD - hydraulic, oil cooler supply line, Includes: Ref. 2

1шт.

2

154569A1

O-RING

- manifold

1шт.

3

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, 10 - 1.5 x 90 mm, class 10.9

4шт.

4

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

5

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 6

1шт.

6

154503A1

O-RING

- adapter

1шт.

7

161576A1

TUBE,27.2 mm OD, 410, 120 mm Length

- oil cooler supply line, manifold end, models without load hold

1шт.

7

163714A1

TUBE,27.2 mm OD

- oil cooler supply line, manifold end, models with load hold

1шт.

8

152924A1

PLUG

- tube, Includes: Ref. 9

1шт.

9

154503A1

O-RING

- plug

1шт.

10

161089A1

TUBE

COUPLING ASSEMBLY - special, Includes: Ref. 11 - 16

1шт.

11

161090A1

SLEEVE

- special

1шт.

12

161093A1

GASKET

GASKET - coupling

2шт.

13

161092A1

RING

RETAINER - coupling gasket

2шт.

14

161091A1

COUPLING

CLAMP - coupling

2шт.

15

161094A1

BOLT

BOLT - special

2шт.

16

159836A1

SPECIAL NUT

- special

2шт.

17

161574A1

TUBE

- cooler supply line, center section, Serial Range: -DAC02#2001

1шт.

17

165525A1

TUBE,21.6 mm ID, 27.2 mm OD

- cooler supply line, center section, Start Serial: DAC02#2001

1шт.

18

158885A1

COLLAR

CLAMP - adjustable

2шт.

19

161085A1

HYDRAULIC HOSE

- 530 mm (20-7/8 inch) long, Oil cooler supply line, Cooler end

1шт.

20

158885A1

COLLAR

CLAMP - adjustable

2шт.

21

151486A1

CLAMP BRACKET

CLAMP - adjustable

1шт.

22

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

1шт.

23

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

24

150885A1

COLLAR

CLAMP - adjustable

2шт.

25

153520A1

HOSE

- 240 mm (9-7/16 inch) long, cooling system return line, manifold -to-reservoir section

1шт.

26

150885A1

COLLAR

CLAMP - adjustable

2шт.

27

161161A1

TUBE ASSY.,34 mm OD, 161 mm Length

TUBE - cooling system return line, manifold-to-reservoir section

1шт.

28

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, Includes: Ref. 29

1шт.

29

154523A1

O-RING

- adapter

1шт.

30

161575A1

TUBE,34 mm OD, 908.7, 364 mm Length

- cooling system return, Serial Range: -DAC02#2001

1шт.

30

165524A1

TUBE,27.6 mm ID, 34 mm OD

- cooling system return, Start Serial: DAC0202001

1шт.

31

150885A1

COLLAR

CLAMP - adjustable

2шт.

32

153520A1

HOSE

- 240 mm (9-7/16 inch) long, Serial Range: -DAC02#2001

1шт.

32

165420A1

HYDRAULIC HOSE

200 mm, Start Serial: DAC02#2001

1шт.

33

150885A1

COLLAR

CLAMP - adjustable

2шт.

34

161577A1

BRACKET

- mounting

1шт.

35

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

1шт.

36

152061A1

U-BOLT,M10 x 46mm W x 60mm L

BOLT - U-type

1шт.

38

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

39

161273A1

U-BOLT

BOLT - U-type

1шт.

40

157180A1

NUT

- high strength

2шт.

41

153360A1

WASHER

- flat, special

2шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
