Запчасти Case 9020B (8-014) - FILTER AND RESERVOIR RETURN LINES, PRIOR TO P.I.N. DAC0201069, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

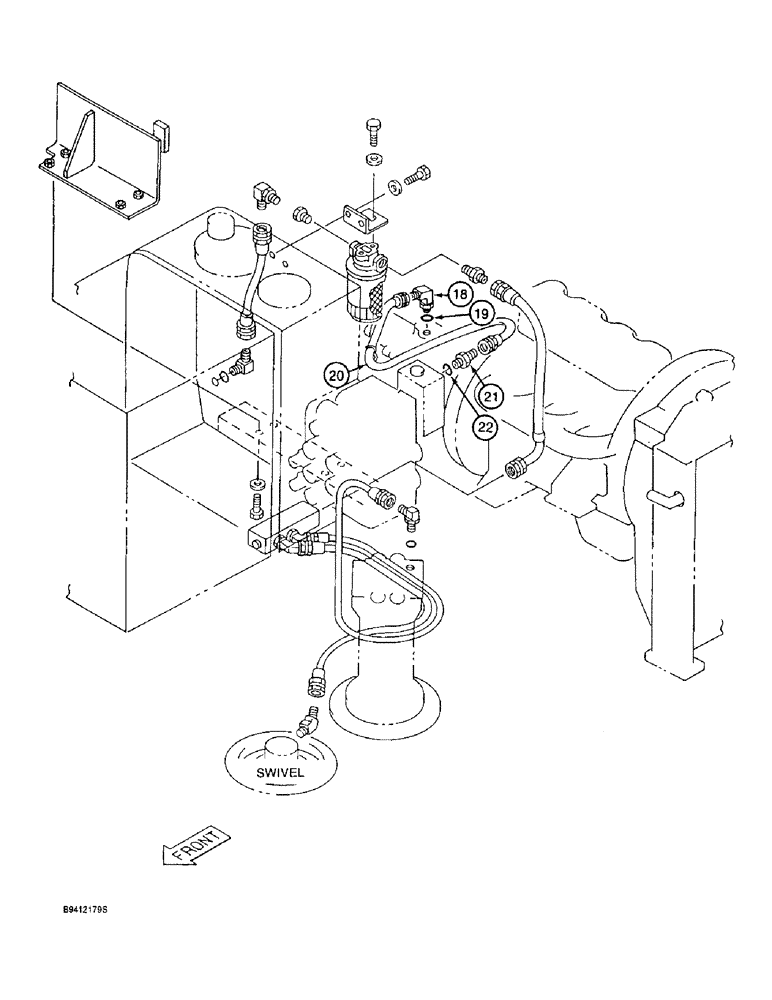

Схема запчастей Case 9020B - (8-014) - FILTER AND RESERVOIR RETURN LINES, PRIOR TO P.I.N. DAC0201069, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
19
18
21
20
22

Артикул

Название

Примечание

Количество

18

157585A1

ELBOW

- special (common), Includes: Ref. 19

1шт.

19

154487A1

O-RING

- elbow (common)

1шт.

20

161268A1

HYDRAULIC HOSE,12.70 mm ID x 850.00 mm

(Pump to reservoir return line) (See note) 12.70 mm ID x 850.00 mm

1шт.

The above parts are used on units prior to P.I.N. DAC0201069. Only those parts listed as common are usable with both configurations. If any of the parts identified is no longer available, it will be necessary to replace all the earlier parts with the parts on Figure 8-10; partial modification is not possible. Excavators P.I.N. DAC0201004 - DAC0201068 can be upgraded by replacing the parts shown above with the parts shown on Figure 8-10. Excavators prior to P.I.N. DAC0201004 can also be upgraded to the l

1шт.

21

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight (See note), Includes: Ref. 20

1шт.

The above parts are used on units prior to P.I.N. DAC0201069. Only those parts listed as common are usable with both configurations. If any of the parts identified is no longer available, it will be necessary to replace all the earlier parts with the parts on Figure 8-10; partial modification is not possible. Excavators P.I.N. DAC0201004 - DAC0201068 can be upgraded by replacing the parts shown above with the parts shown on Figure 8-10. Excavators prior to P.I.N. DAC0201004 can also be upgraded to the l

1шт.

22

154503A1

O-RING

- adapter (common)

1шт.

Выбрано товаров: 7
