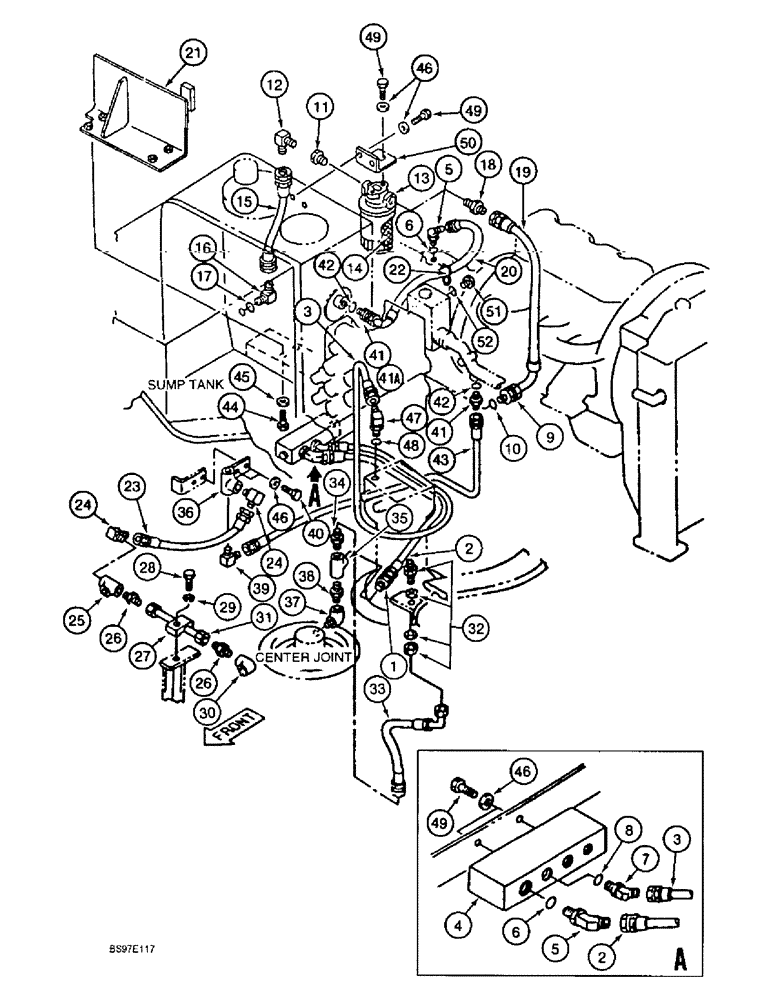

Запчасти Case 9020B (8-012) - FILTER AND RESERVOIR RETURN LINES, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

150073A1

ADAPTER

- straight

1шт.

2

163146A1

HYDRAULIC HOSE,12.70 mm ID x 1350.00 mm

12.70 mm ID x 1350.00 mm

1шт.

3

152761A1

HOSE ASSY.

HOSE - 1450 mm (57-1/16 inch) long

1шт.

4

161270A1

MANIFOLD

- hydraulic

1шт.

5

157585A1

ELBOW

- special, Includes: Ref. 6

2шт.

6

154487A1

O-RING

- elbow

1шт.

7

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 8

1шт.

8

154475A1

O-RING

- elbow

1шт.

9

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 10

1шт.

10

154503A1

O-RING

- adapter

1шт.

11

151077A1

BUSHING

REDUCER - special

1шт.

12

153622A1

ADAPTER

ELBOW - 90 degree, special

1шт.

13

150792A1

FILTER ASSY

FILTER ASSEMBLY - oil, Includes: Ref. 14

1шт.

14

150794A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

15

159747A1

HYDRAULIC HOSE,19.00 mm ID x 400.00 mm

19.00 mm ID x 400.00 mm

1шт.

16

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 17

1шт.

17

154503A1

O-RING

- elbow

1шт.

18

159088A1

ADAPTER

- straight

1шт.

19

161188A1

HYDRAULIC HOSE,19.00 mm ID x 800.00 mm

19.00 mm ID x 800.00 mm

1шт.

20

163129A1

HYDRAULIC HOSE,12.70 mm ID x 650.00 mm

12.70 mm ID x 650.00 mm

1шт.

21

162195A1

BRACKET

- mounting

1шт.

22

161100A1

MOUNTING CLIP

STRAP - tie

1шт.

23

163514A1

HYDRAULIC HOSE,9.50 mm ID x 650.00 mm

9.50 mm ID x 650.00 mm

1шт.

24

153495A1

ADAPTER

ELBOW - 90 degree

2шт.

25

153589A1

TEE

- hydraulic, see Figure 8-58 Ref. 8 for connection

1шт.

26

161947A1

ELEC CONNECTOR

CONNECTOR - hydraulic

2шт.

27

161935A1

CLAMP

- tube

1шт.

28

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

29

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

30

153563A1

ELBOW

- 90 degree, see Figure 8-58 Ref. 23 for connection

1шт.

31

161934A1

HYD TUBE,93.2 mm ID, 101.6 mm OD

TUBE - hydraulic

1шт.

32

162826A1

ADAPTER

- straight, special, see Figure 8-64 Ref. 8 for connection

1шт.

33

163693A1

HYDRAULIC HOSE

340.00 mm

1шт.

34

163694A1

ADAPTER

- straight

1шт.

35

157759A1

TEE

- hydraulic

1шт.

36

163695A1

TEE

- hydraulic, see Figure 8-64 Ref. 13 for connection

1шт.

37

152161A1

ELBOW

- 90 degree

1шт.

38

150850A1

NIPPLE, LUBE

BUSHING - reducer

1шт.

39

150602A1

ADAPTER

ELBOW - 90 degree

1шт.

40

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

41

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, Includes: Ref. 42, Serial Range: -DAC02#2001

1-2шт.

41a

165434A1

ADAPTER

- straight, Includes: Ref. 42, Start Serial: DAC02#2001

1шт.

42

154487A1

O-RING

- 151650A1 or 165434A1 adapter

1шт.

43

161997A1

HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm

12.70 mm ID x 1400.00 mm

1шт.

44

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

45

150811A1

WASHER

- flat, special, 12 mm

4шт.

46

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

8шт.

47

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 48

1шт.

48

154475A1

O-RING

- elbow

1шт.

49

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

6шт.

50

153456A1

BRACKET

- mounting

1шт.

51

159085A1

PLUG

- port, Includes: Ref. 52

1шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.
