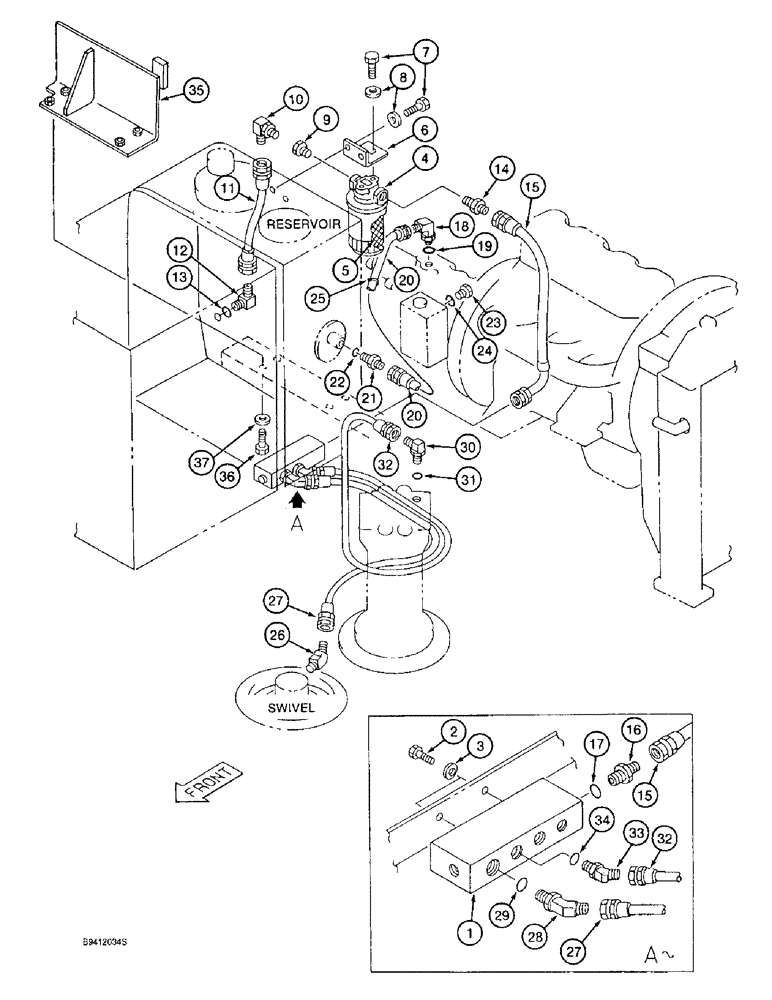

Запчасти Case 9020B (8-010) - FILTER AND RESERVOIR RETURN LINES, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

161270A1

MANIFOLD

- hydraulic

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

4

150792A1

FILTER ASSY

FILTER ASSEMBLY - oil, Includes: Ref. 5

1шт.

5

150794A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

6

153456A1

BRACKET

- mounting

1шт.

7

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

8

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

9

151077A1

BUSHING

REDUCER - special, at filter

1шт.

10

153622A1

ADAPTER

ELBOW - 90 degree, special

1шт.

11

159747A1

HYDRAULIC HOSE,19.00 mm ID x 400.00 mm

(Filter to reservoir) 19.00 mm ID x 400.00 mm

1шт.

12

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 13

1шт.

13

154503A1

O-RING

- elbow

1шт.

14

159088A1

ADAPTER

- straight

1шт.

15

161188A1

HYDRAULIC HOSE,19.00 mm ID x 800.00 mm

(Filter to manifold) 19.00 mm ID x 800.00 mm

1шт.

16

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 17

1шт.

17

154503A1

O-RING

- elbow

1шт.

18

157585A1

ELBOW

- special (See notes) (common), Includes: Ref. 19

1шт.

Parts identified are used on units P.I.N. DAC0201069 and after. The earlier configuration is shown on Figure 8-14. Part numbers on Figure 8-14 are keyed to this figure for comparison purposes. Parts identified are not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

19

154487A1

O-RING

- elbow (See notes) (common)

1шт.

Parts identified are used on units P.I.N. DAC0201069 and after. The earlier configuration is shown on Figure 8-14. Part numbers on Figure 8-14 are keyed to this figure for comparison purposes. Parts identified are not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

20

163129A1

HYDRAULIC HOSE,12.70 mm ID x 650.00 mm

(Pump to reservoir) (See notes) 12.70 mm ID x 650.00 mm

1шт.

Parts identified are used on units P.I.N. DAC0201069 and after. The earlier configuration is shown on Figure 8-14. Part numbers on Figure 8-14 are keyed to this figure for comparison purposes. Parts identified are not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

21

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight (See notes and prior to P.I.N. DAC02#2001)

1шт.

Parts identified are used on units P.I.N. DAC0201069 and after. The earlier configuration is shown on Figure 8-14. Part numbers on Figure 8-14 are keyed to this figure for comparison purposes. Parts identified are not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

21

165434A1

ADAPTER

- straight, P.I.N. DAC02#2001 and after, Includes: Ref. 22

1шт.

22

154487A1

O-RING

- 151650A1 or 165434A1 adapter (See notes)

1шт.

Parts identified are used on units P.I.N. DAC0201069 and after. The earlier configuration is shown on Figure 8-14. Part numbers on Figure 8-14 are keyed to this figure for comparison purposes. Parts identified are not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

23

159085A1

PLUG

- manifold (See notes), Includes: Ref. 24

1шт.

Parts identified are used on units P.I.N. DAC0201069 and after. The earlier configuration is shown on Figure 8-14. Part numbers on Figure 8-14 are keyed to this figure for comparison purposes. Parts identified are not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

24

154487A1

O-RING

- plug (See notes) (common)

1шт.

Parts identified are used on units P.I.N. DAC0201069 and after. The earlier configuration is shown on Figure 8-14. Part numbers on Figure 8-14 are keyed to this figure for comparison purposes. Parts identified are not interchangeable with parts from the earlier configuration unless labeled as common.

1шт.

25

161100A1

MOUNTING CLIP

STRAP - tie

1шт.

26

150915A1

ADAPTER

ELBOW - 45 degree

1шт.

27

163146A1

HYDRAULIC HOSE,12.70 mm ID x 1350.00 mm

(Swivel to manifold) 12.70 mm ID x 1350.00 mm

1шт.

28

157585A1

ELBOW

- special, Includes: Ref. 29

1шт.

29

154487A1

O-RING

- elbow

1шт.

30

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 31

1шт.

31

154475A1

O-RING

- elbow

1шт.

32

152761A1

HOSE ASSY.

HOSE - 1450 mm (57-1/16 inch) long (swing, Serial Range: motor-manifold)

1шт.

33

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 34

1шт.

34

154475A1

O-RING

- adapter

1шт.

35

162195A1

BRACKET

- mounting

1шт.

36

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

37

150811A1

WASHER

- flat, special, 12 mm

4шт.
