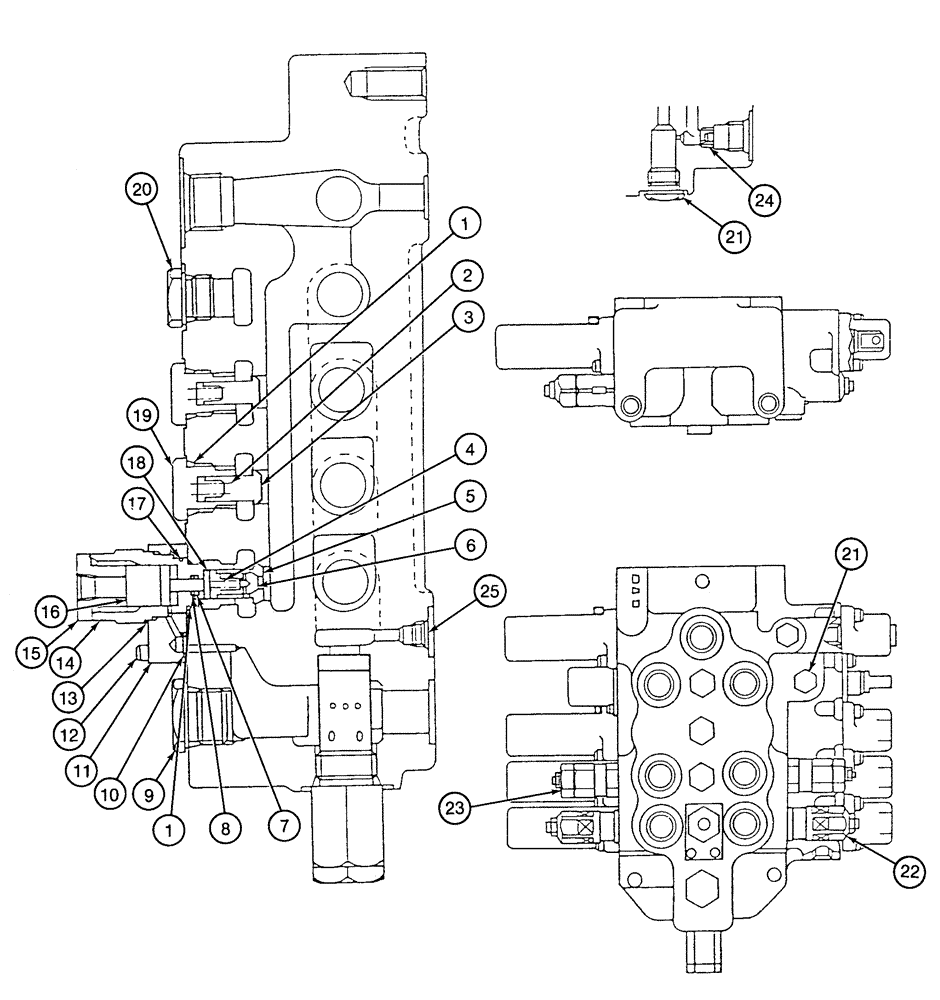

Запчасти Case 9020 (8-076) - MAIN CONTROL VALVE, MISCELLANEOUS VALVES AND COMPONENTS, LEFT-HAND VALVE BANK (08) - HYDRAULICS

155763A1

CONTROL

VALVE SUBASSEMBLY left-hand valve bank, Includes: Ref. 1 - 25

1шт.

1

153882A1

O-RING

plug

3шт.

2

156026A1

SPRING

compression

2шт.

3

155931A1

VALVE POPPET

2шт.

4

NSS

NOT SOLD SEPARAT

SPRING compression

1шт.

Part of Valve Replacement kit, P/N 158900A1

1шт.

5

155932A1

VALVE POPPET

outer

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE poppet, inner

1шт.

Part of Valve Replacement kit, P/N 158900A1

1шт.

7

157099A1

O-RING

valve

1шт.

8

159337A1

BACK-UP RING

1шт.

9

155449A1

PLUG

port

1шт.

10

157101A1

O-RING

passage

1шт.

11

155559A1

SPACER

BLOCK adapter relief valve

1шт.

12

156181A1

BOLT (MACHINE)

hex socket

2шт.

13

155170A1

O-RING

relief valve

1шт.

14

155463A1

PLUG

BODY relief valve

1шт.

15

155458A1

PLUG

relief valve

1шт.

16

155934A1

PISTON

relief valve, outer

1шт.

17

155169A1

O-RING

relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON relief valve, inner

1шт.

Part of Valve Replacement kit, P/N 158900A1

1шт.

19

155464A1

PLUG

port

2шт.

20

155446A1

PLUG

port

1шт.

21

155448A1

PLUG

port

2шт.

22

155745A1

VALVE PRESSURE RELIE

relief

2шт.

Breakdown, see Figure 8-80

1шт.

23

155743A1

VALVE, PRESSURE RELI

EF relief

2шт.

24

155450A1

PLUG

passage

1шт.

25

151026A1

PLUG

port

1шт.

158900A1

PACKAGE, REPAIR

KIT valve replacement, Includes: Refs. 4, 6, and 18

1шт.
