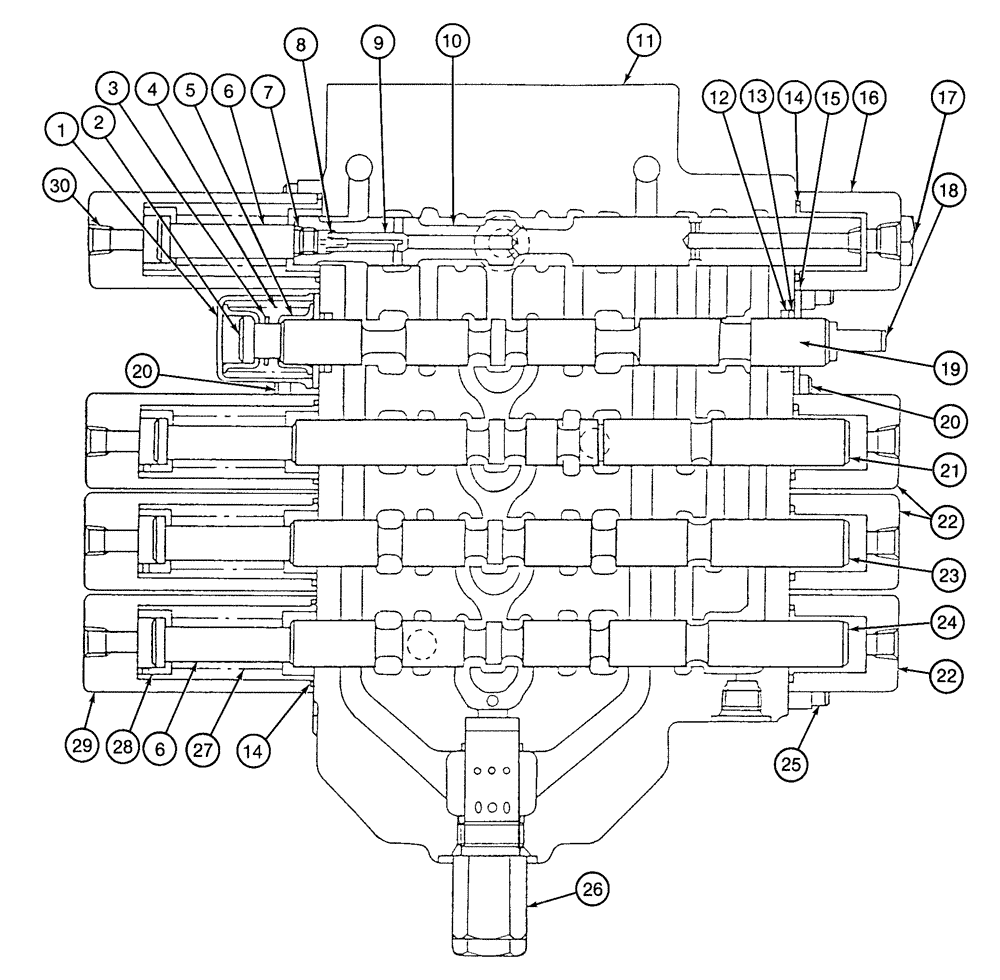

Запчасти Case 9020 (8-074) - MAIN CONTROL VALVE, SPOOLS AND RELATED PARTS, LEFT-HAND VALVE BANK (08) - HYDRAULICS

155763A1

CONTROL

VALVE SUBASSEMBLY left-hand valve bank, Includes: Ref. 1 - 30

1шт.

1

156253A1

CAP

end

1шт.

2

156166A1

SCREW

special

1шт.

3

155558A1

SPACER

spring seat

1шт.

4

156024A1

SPRING

compression

1шт.

5

156022A1

SPRING SEAT

2шт.

6

156167A1

SCREW

hex socket, special

4шт.

7

155171A1

O-RING

valve

1шт.

8

156026A1

SPRING

compression

1шт.

9

155908A1

VALVE POPPET

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL travel priority control

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING left-hand valve bank

1шт.

12

155294A1

SEAL

spool

2шт.

13

153915A1

WIPER

spool

2шт.

14

155168A1

O-RING

end cap

8шт.

15

155557A1

PLATE

seal

2шт.

16

156257A1

CAP

end

1шт.

17

155447A1

PLUG

port

1шт.

18

156256A1

HEAD

EYE linkage, attachment travel spool

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL travel control

1шт.

20

156168A1

BOLT (MACHINE),Hex Skt

hex socket

4шт.

21

NSS

NOT SOLD SEPARAT

SPOOL boom control

1шт.

22

156255A1

CAP

end

3шт.

23

NSS

NOT SOLD SEPARAT

SPOOL swing control

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL arm control

1шт.

25

156180A1

BOLT (MACHINE)

hex socket

16шт.

26

155765A1

VALVE, PRESSURE RELI

EF relief

1шт.

27

156025A1

SPRING

compression

4шт.

28

156023A1

SPRING SEAT

8шт.

29

156254A1

CAP

end

4шт.

30

151026A1

PLUG

port

2шт.
