(8-072) - MAIN CONTROL VALVE, VALVE BANK SUBASSEMBLIES

Запчасти Case 9020 (8-072) - MAIN CONTROL VALVE, VALVE BANK SUBASSEMBLIES (08) - HYDRAULICS

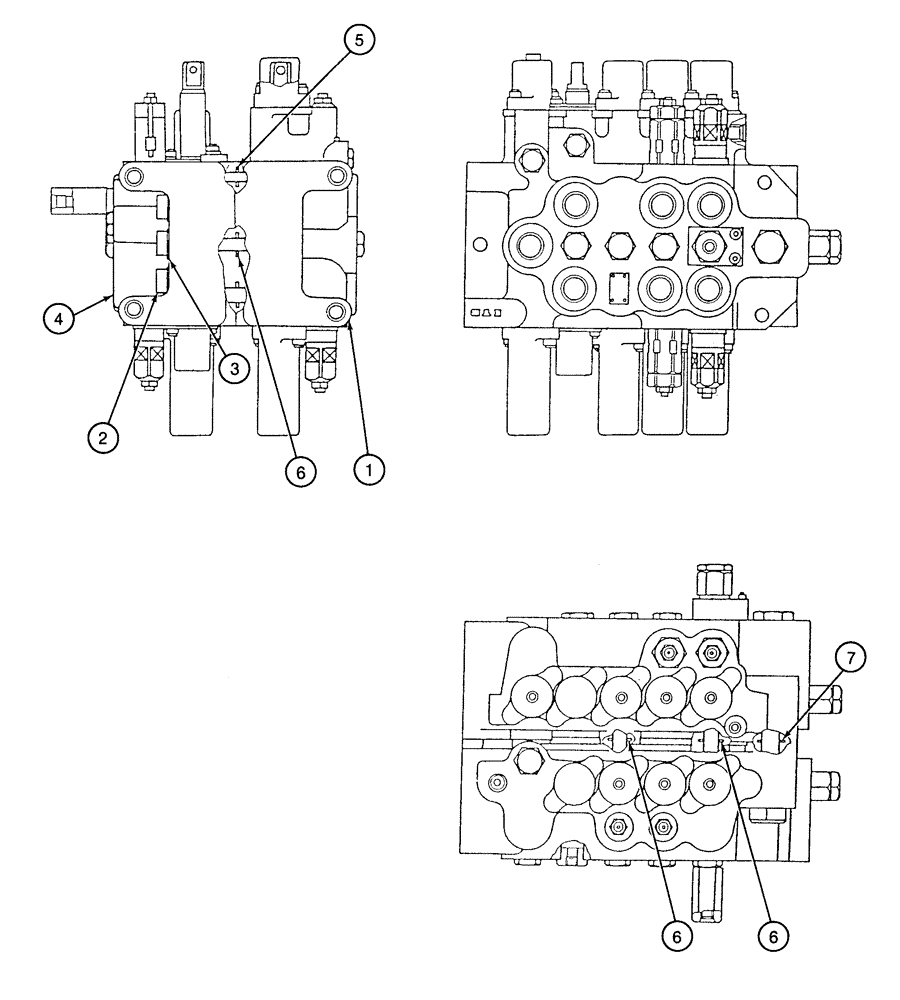

Схема запчастей Case 9020 - (8-072) - MAIN CONTROL VALVE, VALVE BANK SUBASSEMBLIES (08) - HYDRAULICS
1
6
6
4
5
2
3
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

150005A1

CONTROL

VALVE ASSEMBLY main, Includes: Ref. 1 - 7

1шт.

1

155763A1

CONTROL

VALVE SUBASSEMBLY left-hand valve bank, parts list Figures 8-74 and 8-76

1шт.

2

156169A1

BOLT

hex socket, special

7шт.

3

156170A1

WASHER

special

7шт.

4

155764A1

CONTROL

VALVE SUBASSEMBLY right-hand valve bank, parts list Figure 8-78

1шт.

5

154479A1

O-RING

passage

2шт.

6

155172A1

O-RING

passage

4шт.

7

154515A1

O-RING

passage

1шт.
