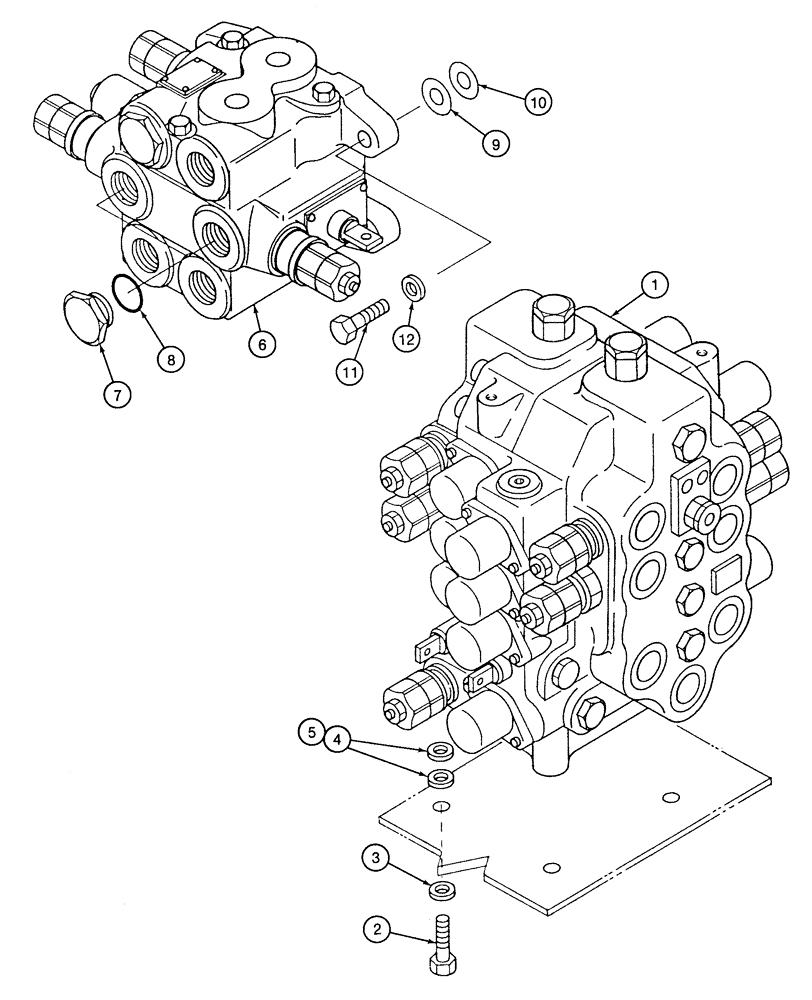

Запчасти Case 9020 (8-070) - CONTROL VALVE MOUNTING (08) - HYDRAULICS

1

150005A1

CONTROL

VALVE ASSEMBLY main, parts list Figures 8-72 thru 8-80

1шт.

2

626-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

Hex, M16 x 40, 10.9, Full Thd

4шт.

3

150567A1

WASHER

special

4шт.

4

150570A1

WASHER

flat, special, 0.8 mm

1шт.

5

150575A1

WASHER

flat, special, 2.0 mm

1шт.

6

151414A1

VALVE, CONTROL

SPARE PART ASSEMBLY auxiliary, parts list Figure 8-101

1шт.

7

152924A1

PLUG

port, Includes: Ref. 8

2шт.

8

154503A1

O-RING

plug

1шт.

9

152880A1

SHIM

0.08 mm, thick

1шт.

10

152882A1

SHIM

0.4 mm, thick

1шт.

11

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

12

150988A1

WASHER

flat, special, 12 mm

3шт.
