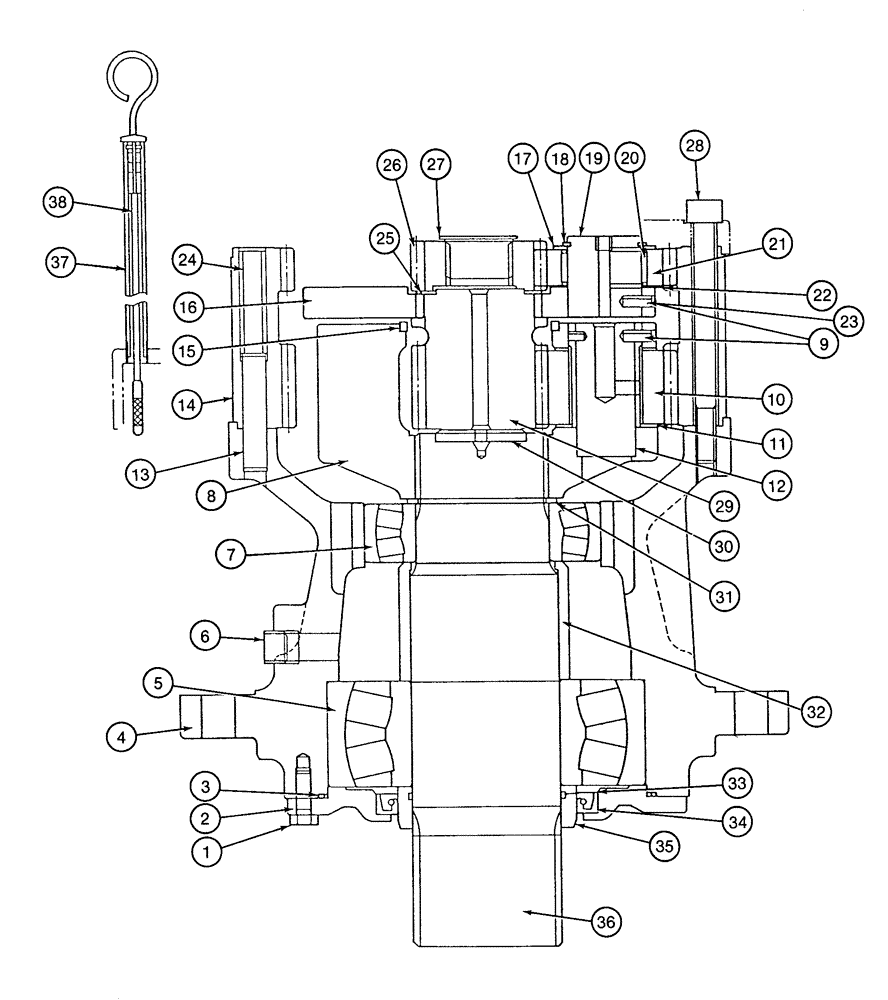

Запчасти Case 9020 (8-068) - REDUCTION GEAR ASSEMBLY (08) - HYDRAULICS

155815A1

MOTOR

GEAR ASSEMBLY reduction, two-stage, Includes: Ref. 1 - 38

1шт.

1

156198A1

BOLT

hex, special

8шт.

2

156306A1

COVER

reduction, gear assembly

1шт.

3

155218A1

O-RING

cover

1шт.

4

156307A1

CASE

HOUSING gear assembly

1шт.

5

156130A1

BEARING, ROLLER,100 mm ID x 215 mm OD x 73 mm

roller

1шт.

6

157036A1

PLUG

port

1шт.

7

156131A1

BEARING, ROLLER,50 mm ID x 27 mm

roller

1шт.

155778A1

CARRIER ASSY.

ASSEMBLY planetary, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

CARRIER planetary gear

1шт.

9

738-1820

LOCK PIN,M8 x 20, Slotted

8 x 20 mm

3шт.

10

155287A1

GEAR

planetary

3шт.

11

155371A1

THRUST WASHER

thrust

6шт.

12

155674A1

PIN

SHAFT planetary gear

3шт.

13

156503A1

PIN

special

4шт.

14

155266A1

GEAR, RING

RING, GEAR

1шт.

15

155379A1

THRUST RING

1шт.

155777A1

CARRIER ASSY.

ASSEMBLY planetary, Includes: Ref. 16 - 23

1шт.

16

156350A1

CARRIER

planetary, primary

1шт.

17

156309A1

PLATE

RING thrust

3шт.

18

800-1150

SNAP RING,M50, Ext

RING snap, external

3шт.

19

155672A1

PIN

SHAFT planetary gear

3шт.

20

156148A1

BEARING, NEEDLE

needle

3шт.

21

155286A1

GEAR

planetary

3шт.

22

156310A1

PLATE

RING thrust

3шт.

23

738-1820

LOCK PIN,M8 x 20, Slotted

8 x 20 mm

3шт.

24

155478A1

PIPE

SLEEVE housing

4шт.

25

156349A1

PLATE

RING thrust

1шт.

26

155285A1

SUN GEAR

1шт.

27

155670A1

RING, SNAP

RING SNAP

1шт.

28

156197A1

BOLT (MACHINE)

hex socket, special

12шт.

29

155267A1

GEAR

sun

1шт.

30

153867A1

PLATE

thrust

1шт.

31

800-1190

SNAP RING,M90, Ext

1шт.

32

155612A1

SPACER

bearing

1шт.

33

154721A1

O-RING,99.4mm ID x 3.1mm Width

seal ring

1шт.

34

153922A1

OIL SEAL

lip

1шт.

35

155611A1

SEALING RING

ring

1шт.

36

155358A1

DRIVE SHAFT

output

1шт.

37

155488A1

PIPE

TUBE dipstick

1шт.

38

155671A1

DIPSTICK

oil lube

1шт.
