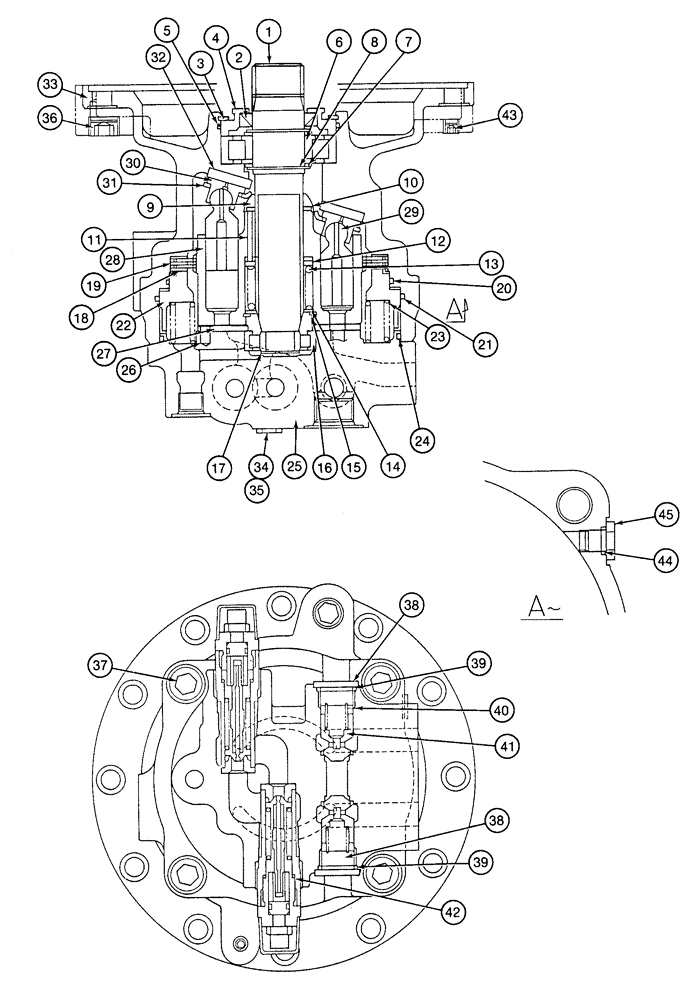

Запчасти Case 9020 (8-064) - SWING MOTOR ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
155816A1
MOTOR
ASSEMBLY swing, parts list Figure 8-64 and 8-66, Includes: Ref. 1 - 37
1шт.
1
155366A1
DRIVE SHAFT
1шт.
2
153925A1
OIL SEAL
shaft
1шт.
3
155663A1
RING, SNAP
RING SNAP internal
1шт.
4
156342A1
COVER
RETAINER shaft seal
1шт.
5
154721A1
O-RING,99.4mm ID x 3.1mm Width
retainer
1шт.
6
156147A1
ROLLER BEARING,45 mm ID x 100 mm OD x 25 mm
roller
1шт.
7
155669A1
SPACER
bearing
2шт.
8
155665A1
RING, SNAP
RING SNAP external
2шт.
9
155396A1
RETAINER
BUSHING spherical
1шт.
10
155667A1
SPACER
SEAT push rod
1шт.
11
155668A1
PUSH ROD
12шт.
12
155666A1
SPACER
SEAT spring
1шт.
13
156098A1
SPRING
compression
1шт.
14
155669A1
SPACER
bearing
1шт.
15
155662A1
COTTER PIN
ring snap internal
1шт.
16
156140A1
BEARING, ROLLER,25 mm ID x 62 mm OD x 17 mm
roller
1шт.
17
155664A1
RING, SNAP
RING SNAP external
1шт.
18
156340A1
PLATE
separator brake
3шт.
19
156341A1
PLATE
friction brake
2шт.
20
155214A1
O-RING
brake piston
1шт.
21
155216A1
O-RING
brake piston
1шт.
22
155954A1
PISTON
brake
1шт.
23
156099A1
SPRING
compression
6шт.
24
155184A1
O-RING
valve housing
1шт.
155811A1
VALVE
HOUSING ASSEMBLY, Includes: Ref. 25 and 26
1шт.
25
NSS
NOT SOLD SEPARAT
HOUSING valve
1шт.
26
155661A1
PIN
roll
2шт.
27
156347A1
PLATE
valve
1шт.
28
156346A1
CYLINDER
BLOCK swing motor
1шт.
155810A1
PISTON
ASSEMBLY swing motor, Includes: Ref. 29 and 30
1шт.
29
NSS
NOT SOLD SEPARAT
PISTON swing motor
9шт.
30
NSS
NOT SOLD SEPARAT
SHOE piston
9шт.
31
156345A1
PLATE
piston retaining
1шт.
32
156344A1
PLATE
swash
1шт.
33
156348A1
CASE
HOUSING swing motor
1шт.
34
155496A1
PLUG
port
2шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
plug
2шт.
36
151035A1
PLUG
pipe
1шт.
37
156201A1
BOLT (MACHINE),Hex Skt
hex socket
4шт.
155816A1
MOTOR
ASSEMBLY swing continued, parts list Figure 8-64 and 8-66, Includes: Ref. 38 - 45
1шт.
38
155475A1
PLUG
port
2шт.
39
154519A1
O-RING
plug
2шт.
40
156072A1
SPRING
compression
2шт.
41
155942A1
PLUNGER
check valve
2шт.
42
155814A1
VALVE, PRESSURE RELI
EF relief
2шт.
43
155505A1
PLUG
port
1шт.
44
154467A1
O-RING,10.8mm ID x 2.4mm Width
plug
1шт.
45
155496A1
PLUG
port
1шт.
Выбрано товаров: 49
