(8-062) - SWING DRIVE ASSEMBLY MOUNTING

Запчасти Case 9020 (8-062) - SWING DRIVE ASSEMBLY MOUNTING (08) - HYDRAULICS

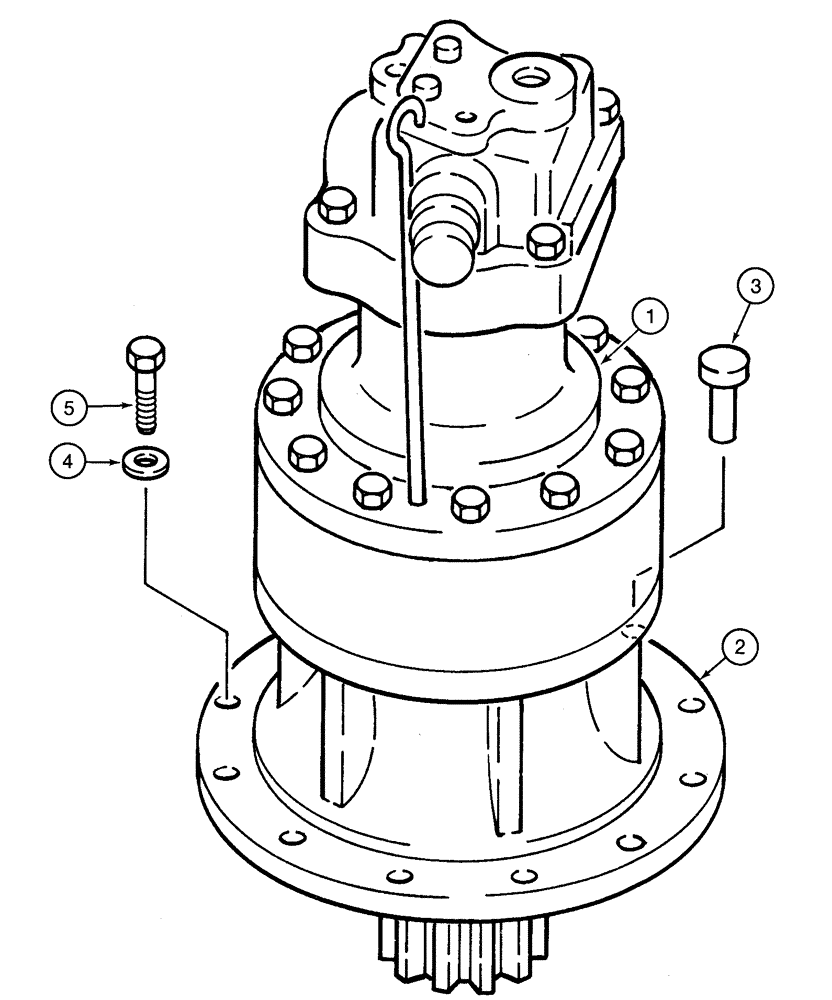

Схема запчастей Case 9020 - (8-062) - SWING DRIVE ASSEMBLY MOUNTING (08) - HYDRAULICS
4
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

150000A1

MOTOR, HYDRAULIC

DRIVE ASSEMBLY swing, Includes: Ref. 1 and 2

1шт.

1

155816A1

MOTOR

ASSEMBLY swing parts, list Figure 8-64 and 8-66

1шт.

2

155815A1

MOTOR

GEAR ASSEMBLY reduction, parts list Figure 8-68

1шт.

3

150317A1

HEADED PIN,24mm OD x 90mm L

alignment

1шт.

4

150996A1

WASHER

special

47шт.

5

828-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9

11шт.
