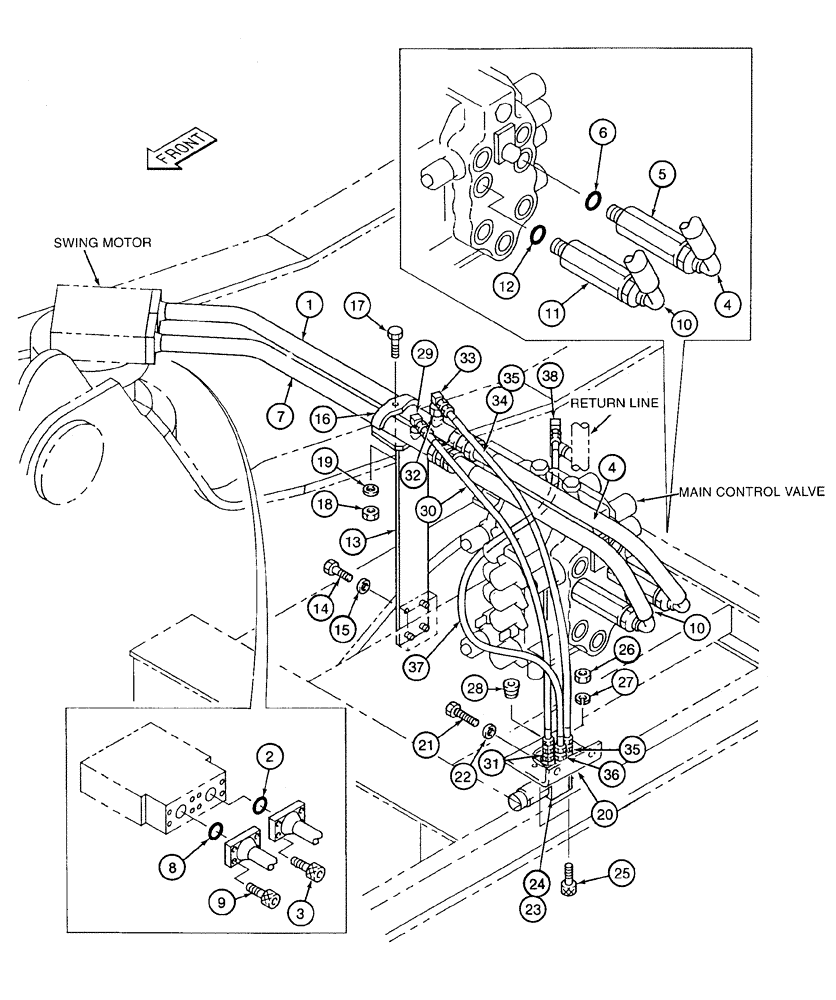

Запчасти Case 9020 (8-060) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

150059A1

TUBE,22 mm OD, 792.3, 92 mm Length

flanged swing-right line, (swing motor port "A" to swing-right hose)

1шт.

2

154528A1

O-RING

tube

1шт.

3

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

4

152878A1

HOSE ASSY.

24-3/8 inch (620 mm) long, swing-right hose, (swing-right tube to main control valve port "A13")

1шт.

5

152883A1

STUD

ADAPTER straight, Includes: Ref. 6

1шт.

6

154503A1

O-RING

adapter

1шт.

7

150056A1

TUBE,748.7, 92 mm Length

flanged swing-left line, (swing motor port "B" to swing-left hose)

1шт.

8

154528A1

O-RING

tube

1шт.

9

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

10

152878A1

HOSE ASSY.

24-3/8 inch (620 mm) long, swing-left hose, (swing-left tube to main control valve port "B13")

1шт.

11

152883A1

STUD

ADAPTER straight, Includes: Ref. 12

1шт.

12

154503A1

O-RING

adapter

1шт.

13

150282A1

BRACKET

mounting

1шт.

14

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

15

150732A1

WASHER

special, 10 mm

2шт.

16

152742A1

COLLAR

tube

1шт.

17

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

18

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

19

150988A1

WASHER

flat, special, 12 mm

1шт.

20

150348A1

BRACKET

mounting

1шт.

21

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

22

150732A1

WASHER

special, 10 mm

2шт.

23

153470A1

VALVE

ASSEMBLY solenoid, parts list Figure 8-52

1шт.

24

150589A1

PLATE

adapter, hose mounting

1шт.

25

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

2шт.

26

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

27

892-11006

LOCK WASHER,M6

2шт.

28

151026A1

PLUG

port

1шт.

29

153596A1

ADAPTER

elbow, 90 degree

1шт.

30

150922A1

HYDRAULIC HOSE,850.00 mm

Free-swing circuit (Port on swing-left hose to free swing solenoid port "P")

1шт.

31

153603A1

ADAPTER

straight

1шт.

32

153480A1

ORIFICE

ADAPTER special

1шт.

33

153596A1

ADAPTER

elbow, 90 degree

1шт.

34

150922A1

HYDRAULIC HOSE,850.00 mm

Free-swing circuit (Port on swing-right hose to free swing solenoid port "B")

12шт.

35

153603A1

ADAPTER

straight

1шт.

36

153603A1

ADAPTER

straight

1шт.

37

150672A1

HYDRAULIC HOSE,1200.00 mm

Free swing drain line, (Free swing solenoid port "T" to return line)

1шт.

38

153596A1

ADAPTER

elbow, 90 degree

1шт.
