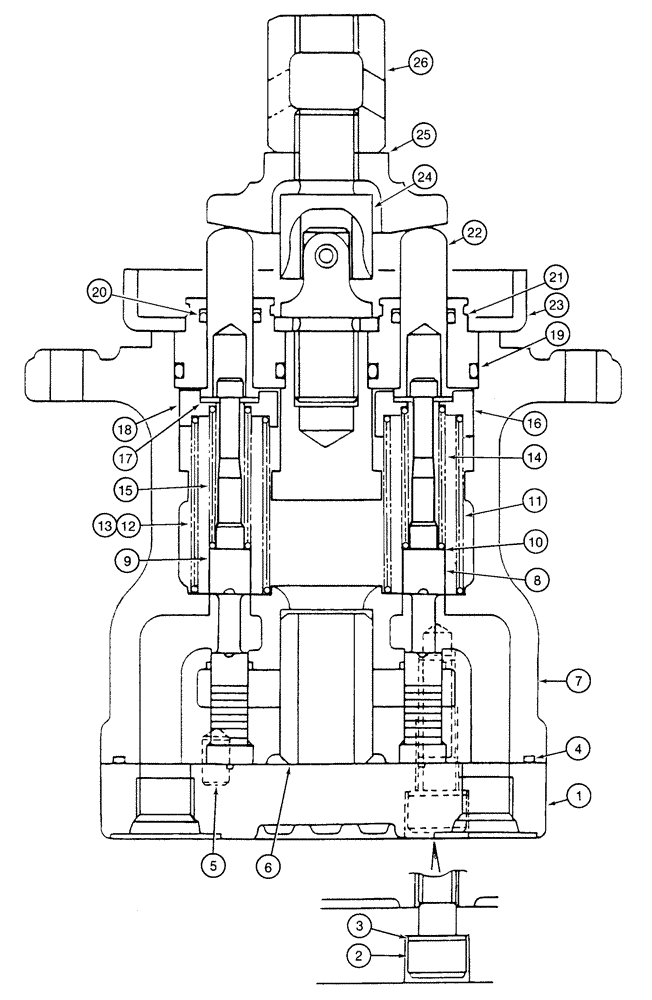

Запчасти Case 9020 (8-058) - MANUALLY OPERATED CONTROL VALVE (08) - HYDRAULICS

151609A1

VALVE

ASSEMBLY manual control, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

COVER closed end

1шт.

2

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

2шт.

3

156164A1

SEALING WASHER

WASHER sealing cover

2шт.

4

155167A1

O-RING

plate

1шт.

5

738-1510

LOCK PIN,M5 x 10, Slotted

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING valve

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL valve

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL valve

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER flat, special

4шт.

11

156064A1

SPRING

valve outer, port 3

1шт.

12

156040A1

SPRING

valve outer, ports 2 and 4

2шт.

13

156021A1

SPRING

valve outer, port 1

1шт.

14

156049A1

SPRING

valve, inner

2шт.

15

156050A1

SPRING

valve, inner

2шт.

16

NSS

NOT SOLD SEPARAT

SEAT spring

2шт.

17

NSS

NOT SOLD SEPARAT

WASHER flat, special

8шт.

18

NSS

NOT SOLD SEPARAT

SEAT spring

2шт.

155769A1

PUSH ROD

ASSEMBLY, Includes: Ref. 19 - 22

4шт.

19

154491A1

O-RING

guide

1шт.

20

155292A1

SEAL

SEAL push rod

1шт.

21

NSS

NOT SOLD SEPARAT

GUIDE push rod

1шт.

22

NSS

NOT SOLD SEPARAT

ROD push

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE cover

1шт.

24

155253A1

JOINT

PIVOT valve

1шт.

25

155564A1

PLATE

ROCKER remote control valve

1шт.

26

156165A1

NUT

hex, special

1шт.

155986A1

SEAL KIT

seal contains Refs. 3 and 4

1шт.

155987A1

SEAL KIT

seal contains Refs. 19 and 20

1шт.
