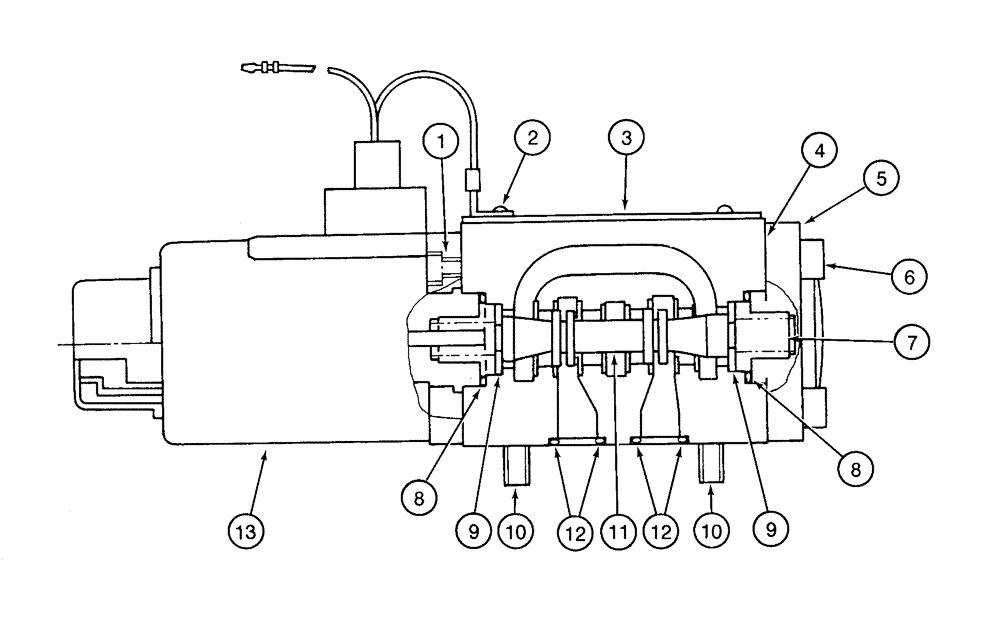

Запчасти Case 9020 (8-050) - 150425A1 SOLENOID VALVE (08) - HYDRAULICS

150425A1

VALVE

ASSEMBLY solenoid, control shut-off, Includes: Ref. 1 - 13

1шт.

1

156174A1

BOLT

hex socket

4шт.

4

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

5

156279A1

COVER

valve

1шт.

6

156175A1

BOLT (MACHINE),Hex Skt

hex socket

4шт.

7

156044A1

SPRING

valve

2шт.

8

155205A1

O-RING

solenoid

2шт.

9

NSS

NOT SOLD SEPARAT

SEAT spring

2шт.

10

150125A1

BOLT (MACHINE),Hex Skt

hex socket, special

4шт.

11

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

12

155185A1

O-RING

passage

4шт.

13

165374A1

SOLENOID

valve

1шт.
