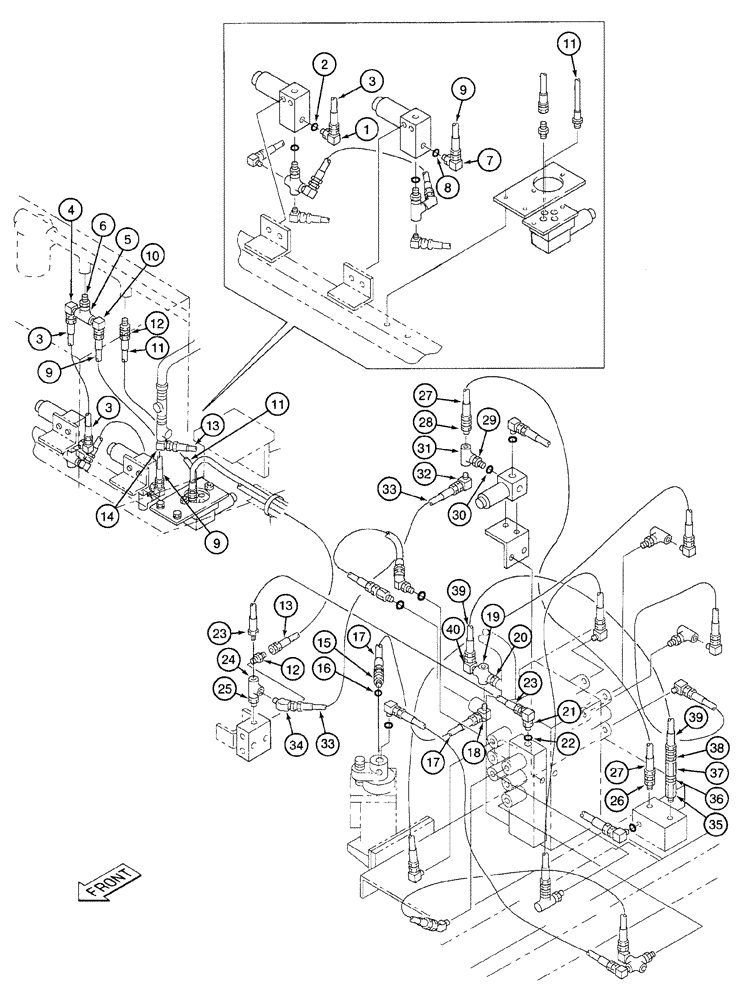

Запчасти Case 9020 (8-048) - PILOT RETURN LINES (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

3

152276A1

HOSE,63mm ID x 550mm L

Solenoid valve return line, (Swing brake solenoid valve port "R" to tee in return filter inlet line)

1шт.

4

153596A1

ADAPTER

elbow, 90 degree

1шт.

5

152135A1

TEE

special

1шт.

6

150847A1

HYD CONNECTOR

CONNECTER straight

1шт.

7

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 degree, Includes: Ref. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

elbow

1шт.

9

152276A1

HOSE,63mm ID x 550mm L

Solenoid valve return line, (Two-speed solenoid valve port "R" to tee in return filter inlet line)

1шт.

10

153596A1

ADAPTER

elbow, 90 degree

1шт.

11

153408A1

HOSE

22-7/16 inch (570 mm) long, solenoid valve return line, (control on-off solenoid valve port "T" to return filter inlet line)

1шт.

12

153597A1

ADAPTER

straight

2шт.

13

152761A1

HOSE ASSY.

57-1/16 inch (1450 mm) long, pressure and return manifold return line, (pressure and return manifold port "T" to return filter inlet line)

1шт.

14

153495A1

ADAPTER

elbow, 90 degree

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

straight, Includes: Ref. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

adapter

1шт.

17

152512A1

HOSE ASSY.

27-9/16 inch (700 mm) long, boom holding valve return line, (boom holding valve port "DR" to cross in return filter

1шт.

18

153596A1

ADAPTER

elbow, 90 degree

1шт.

19

152303A1

4 WAY CONNECTION

hydraulic

1шт.

20

150847A1

HYD CONNECTOR

CONNECTER straight

1шт.

21

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 degree, Includes: Ref. 22

1шт.

22

154475A1

O-RING

elbow

1шт.

23

153365A1

HOSE

29-9/16 inch (750 mm) long, main contol valve drain line, (main control valve port "T2" to tee in pressure and return manifold port "T")

1шт.

24

153598A1

TEE

special in pressure and return manifold port "T"

1шт.

25

150848A1

NIPPLE, LUBE

NIPPLE ADAPTER straight

1шт.

26

153378A1

ADAPTER

straight

1шт.

27

151872A1

HOSE ASSY.

33-1/2 inch (850 mm) long, cushion valve return line, (from cushion valve port "T" to tee in solenoid valve port "R")

1шт.

28

153603A1

ADAPTER

straight

1шт.

29

152899A1

HYD CONNECTOR

CONNECTOR straight, Includes: Ref. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

connector

1шт.

31

152135A1

TEE

special

1шт.

32

153596A1

ADAPTER

elbow, 90 degree

1шт.

33

151867A1

HOSE,63.00 mm ID x 600.00 mm

Cushion valve on-off solenoid return line (From tee in cushion valve on-off solenoid port "R" to tee in pressure and return manifold port "T")

1шт.

34

153599A1

ADAPTER

elbow, 45 degree

1шт.

35

153494A1

ORIFICE

REDUCER

1шт.

36

152129A1

NIPPLE, LUBE

NIPPLE ADAPTER straight

1шт.

37

151552A1

FILTER

hydraulic, in-line

1шт.

38

152748A1

ADAPTER

straight

1шт.

39

152753A1

HOSE,95.00 mm ID x 1100.00 mm

Cushion valve return line (Cushion valve port "R" to cross in return filter inlet line)

1шт.

40

152749A1

ADAPTER

elbow, 90 degree

1шт.
