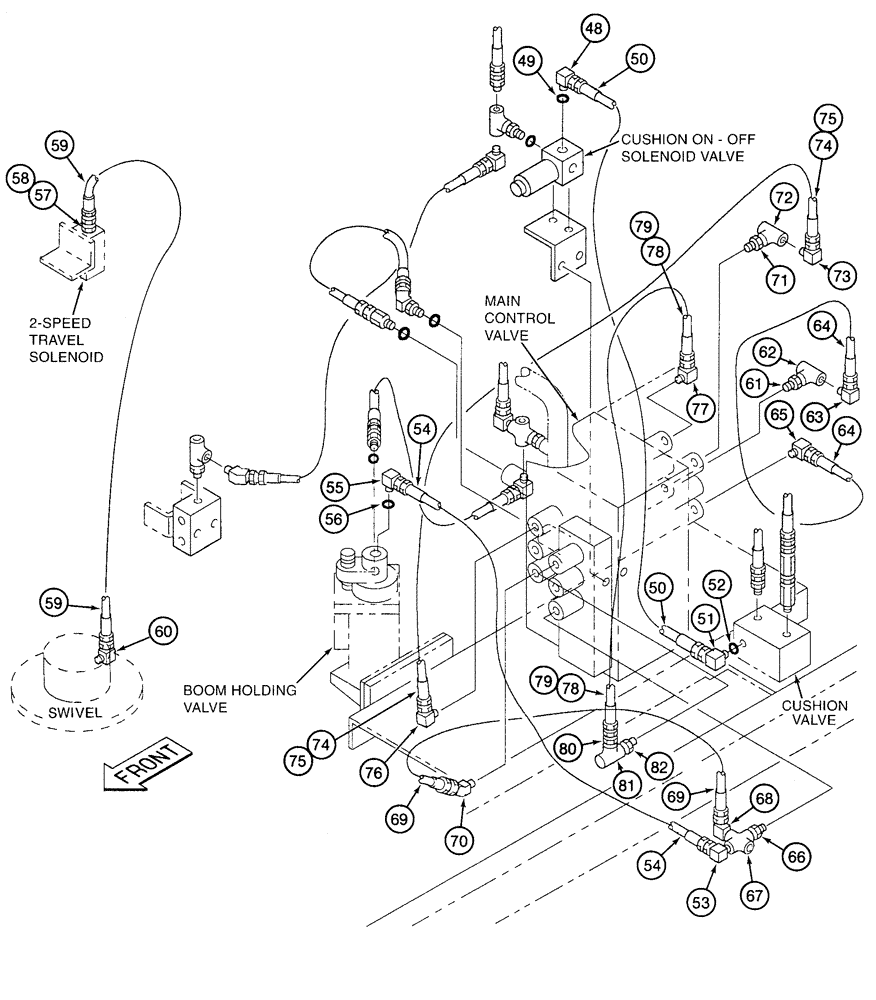

Запчасти Case 9020 (8-046) - PILOT SIGNAL LINES, CONTINUED, FUNCTION SIGNAL LINES, COMBINED FLOW (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
48
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, Includes: Ref. 49
1шт.
49
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow
1шт.
50
152793A1
HOSE ASSY.
17-3/4 inch (450 mm) long, cushion valve on-off signal line, (cushion valve on-off solenoid port "A" to cushion valve port "5")
1шт.
51
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, Includes: Ref. 52
1шт.
52
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow
1шт.
53
153596A1
ADAPTER
elbow, 90 degree
1шт.
54
153229A1
HOSE
11-13/16 inch (300 mm) long, boom holding signal line, (cross in main control valve port "Pb12" to boom holding valve port "PL")
1шт.
55
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 degree, Includes: Ref. 56
1шт.
56
154467A1
O-RING,10.8mm ID x 2.4mm Width
elbow
1шт.
57
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
straight, Includes: Ref. 58
1шт.
58
154467A1
O-RING,10.8mm ID x 2.4mm Width
adapter, (not shown)
1шт.
59
152264A1
HOSE,6.3mm ID x 2200mm L
Two-speed travel signal line, (Two-speed solenoid port "R" to swivel port "E")
1шт.
60
153596A1
ADAPTER
elbow, 90 degree hydraulic
1шт.
61
150847A1
HYD CONNECTOR
CONNECTER straight
1шт.
62
152135A1
TEE
special
1шт.
63
153603A1
ADAPTER
straight, replaced by153596A1
2шт.
63
153596A1
ADAPTER
elbow, 90 degree, replaces 153603A1
1шт.
64
151867A1
HOSE,63.00 mm ID x 600.00 mm
Combined-flow boom-up signal line (Tee in main control valve port "Pa22" to control valve port "Pa12")
1шт.
65
153599A1
ADAPTER
elbow, 45 degree, replaced by 153596A1
1шт.
65
153596A1
ADAPTER
elbow, 90 degree, replaces 153599A1
1шт.
66
150847A1
HYD CONNECTOR
CONNECTER straight
1шт.
67
152303A1
4 WAY CONNECTION
hydraulic
1шт.
68
153596A1
ADAPTER
elbow, 90 degree
1шт.
69
152276A1
HOSE,63mm ID x 550mm L
Combined-flow boom-down signal line, (Cross in main control valve port "Pb12" to control valve port "Pb22")
1шт.
70
153599A1
ADAPTER
elbow, 45 degree, replaced by 153596A1
1шт.
70
153596A1
ADAPTER
elbow, 90 degree, replaces 153599A1
1шт.
71
150847A1
HYD CONNECTOR
CONNECTER straight
1шт.
72
152135A1
TEE
hydraulic
1шт.
73
153596A1
ADAPTER
elbow, 90 degree
1шт.
74
152512A1
HOSE ASSY.
27-9/16 inch (700 mm) long, combined-flow arm-in pilot signal line, (tee in main control valve port "Pb24" to control valve port "Pa14")
1шт.
75
152662A1
PLASTIC-RUBBER TUBE
SLEEVE corrugated, (not shown)
1шт.
76
153596A1
ADAPTER
elbow, 90 degree
1шт.
77
153596A1
ADAPTER
elbow, 90 degree
1шт.
78
152512A1
HOSE ASSY.
27-9/16 inch (700 mm) long, combined-flow arm-out pilot signal, (main control valve port "Pa24" to tee in control valve port "Pb14")
1шт.
79
152662A1
PLASTIC-RUBBER TUBE
SLEEVE corrugated, (not shown)
1шт.
80
153603A1
ADAPTER
straight
1шт.
81
152135A1
TEE
hydraulic
1шт.
82
150847A1
HYD CONNECTOR
CONNECTER straight
1шт.
Выбрано товаров: 38
